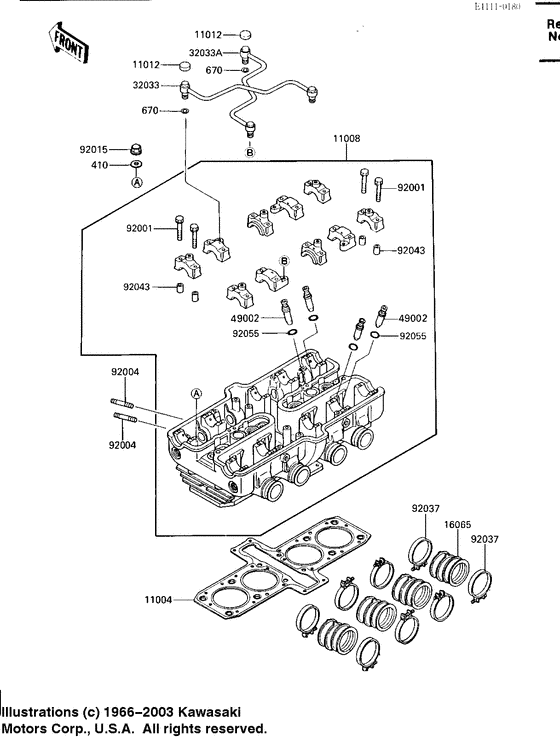

Cylinder head Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
670
|
670
670D1505 O-RING |
670D1505 |
from US $2.53 |
||
|
11004
|
11004
11004-1152 GASKET-HEAD |
11004-1152 |
from US $77.79 |
||
|
11008
|
11008
11008-1172
HEAD-COMP-CYLINDER
|
11008-1172 |
— | ||
| replacement | |||||
|
11008
|
11008
11008-1195
HEAD-COMP-CYLINDER
|
11008-1195 |
— | ||
|
11012
|
11012
11012-1491 CAP |
11012-1491 |
from US $4.91 |
||
|
16065
|
16065
16065-1129 HOLDER-CARBURETOR |
16065-1129 |
from US $16.47 |
||
|
32033
|
32033
32033-1942
PIPE
|
32033-1942 |
— | ||
|
32033A
|
32033A
32033-1943
PIPE
|
32033-1943 |
— | ||
|
49002
|
49002
49002-1060
GUIDE-VALVE
|
49002-1060 |
— | ||
|
92001
|
92001
92001-1105 BOLT,FLANGED,6X38Bolt,flanged,6x38; |
92001-1105 |
from US $2.85 |
||
|
92004
|
92004
92004-066 STUD,6X27Stud,6x27; |
92004-066 |
from US $3.48 |
||
|
92015
|
92015
92015-1151 NUT,CAP,8MMNut,cap,8mm; |
92015-1151 |
from US $3.01 |
||
|
92037
|
92037
92037-1326
CLAMP
|
92037-1326 |
— | ||
| replacement | |||||
|
92037
|
92037
92170-1438 CLAMP |
92170-1438 |
from US $6.18 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,dowel,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92055
|
92055
92055-1177 RING-O,VALVE GUIDERing-o,valve guide; |
92055-1177 |
from US $5.86 |
||
