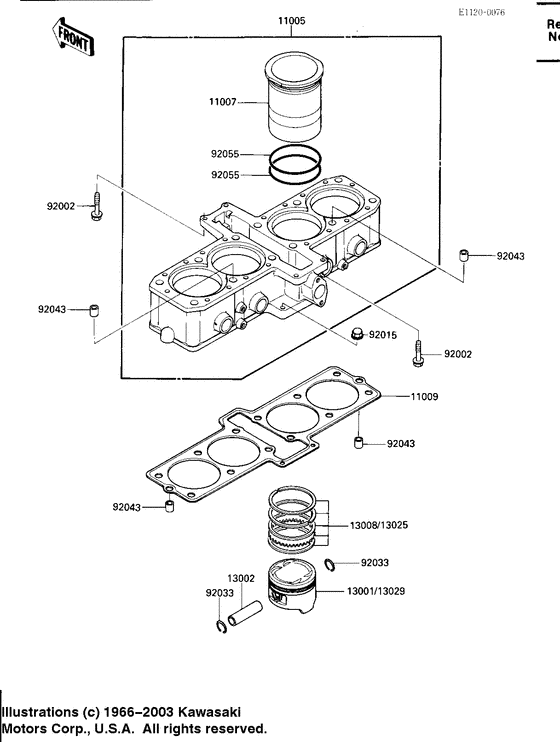

Cylinder/pistons Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1493
CYLINDER-ENGINE
|
11005-1493 |
— | ||
|
11007
|
11007
11007-1086
LINER-CYLINDER
|
11007-1086 |
— | ||
|
11009
|
11009
11009-1578
GASKET,CYLINDER BASE
Gasket,cylinder base; |
11009-1578 |
— | ||
|
13001
|
13001
13001-1233
PISTON-ENGINE,STD
Piston-engine,std; |
13001-1233 |
— | ||
|
13002
|
13002
13002-1057
PIN-PISTON
|
13002-1057 |
— | ||
|
13008
|
13008
13008-1074
RING-SET-PISTON,STD
Ring-set-piston,std; |
13008-1074 |
— | ||
|
13025
|
13025
13025-1072
RING-SET-PISTON L,O/S
Ring-set-piston l,o/s; |
13025-1072 |
— | ||
|
13029
|
13029
13029-1149
PISTON-ENGINE L,O/S 0
Piston-engine l,o/s 0; |
13029-1149 |
— | ||
|
92002
|
92002
92002-1104 BOLT,6X28Bolt,6x28; |
92002-1104 |
US $3.48 |
||
|
92015
|
92015
92015-1170 NUTNut,cap 6mm,black; |
92015-1170 |
from US $0.38 |
||
| replacement | |||||
|
92015
|
92015
92210-0003 NUTNut,cap 6mm,black; |
92210-0003 |
from US $1 |
||
|
92033
|
92033
92033-1151 RING-SNAP,PISTON PINRing-snap,piston pin; |
92033-1151 |
from US $2.53 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14Pin,dowel,8.2x10x14; |
92043-1264 |
from US $1 |
||
|
92055
|
92055
92055-1287 RING-O,66.5MMRing-o,66.5mm; |
92055-1287 |
from US $3.57 |
||
