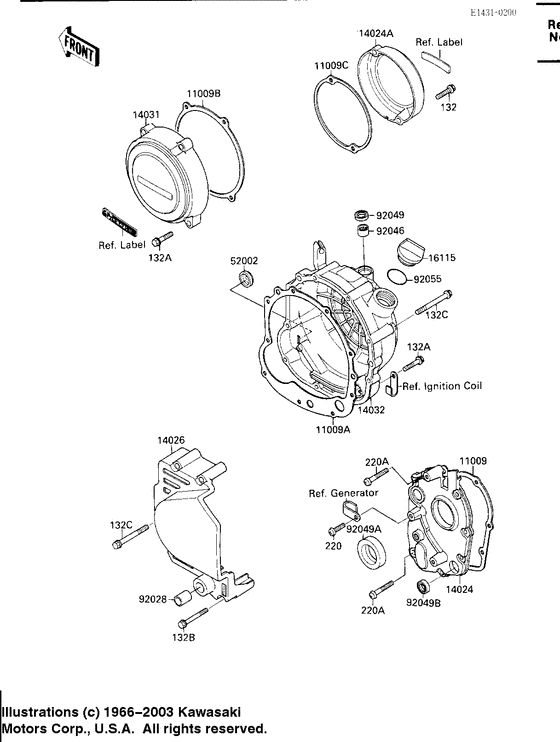

Engine covers Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
132A
|
132A
132J0630
BOLT,6X30
|
132J0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132B
|
132B
132J0650 BOLT-FLANGED-SMALL |
132J0650 |
US $3.67 |
||
| replacement | |||||
|
132B
|
132B
132BB0650 BOLT-FLANGED-SMALL |
132BB0650 |
from US $1.27 |
||
|
132C
|
132C
132J0660 BOLT,6X60 |
132J0660 |
US $40.50 |
||
| replacement | |||||
|
132C
|
132C
132BB0660 BOLT,6X60 |
132BB0660 |
from US $3.17 |
||
|
220
|
220
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
220
|
220
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
220A
|
220A
220B0640
SCREW-PAN HEAD,6X40
Screw pan head 6x40; |
220B0640 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0640 SCREW-PAN HEAD,6X40Screw pan head 6x40; |
220AA0640 |
from US $0.95 |
||
|
11009
|
11009
11060-1056
GASKET,TRANSMISSION C
Gasket,transmission c; |
11060-1056 |
— | ||
| replacements | |||||
|
11009
|
11009
11061-1090
GASKET,TRANSMISSION COVER
Gasket,transmission c; |
11061-1090 |
— | ||
|
11009
|
11009
11061-1524 GASKET,TRANSMISSION COVERGasket,transmission c; |
11061-1524 |
from US $9.19 |
||
|
11009A
|
11009A
11060-1148 GASKET,CLUTCH COVERGasket,clutch cover; |
11060-1148 |
from US $19.48 |
||
|
11009B
|
11009B
11060-1150 GASKET,GENERATOR COVEGasket,generator cove; |
11060-1150 |
from US $9.82 |
||
|
11009C
|
11009C
11060-1151 GASKET,PULSING COIL CGasket,pulising coil; |
11060-1151 |
US $6.93 |
||
| replacement | |||||
|
11009C
|
11009C
11060-1098 GASKET,PULSING COIL CGasket,pulising coil; |
11060-1098 |
from US $6.97 |
||
|
14024
|
14024
14025-1700 COVER,MISSIONCover,mission; |
14025-1700 |
from US $75.74 |
||
|
14024A
|
14024A
14025-1709 COVER,PULSING COILCover,pulsing coil; |
14025-1709 |
from US $71.86 |
||
|
14026
|
14026
14026-1134 COVER-CHAIN |
14026-1134 |
from US $131.18 |
||
|
14031
|
14031
14031-1178 Cover-generator |
14031-1178 |
from US $144.61 |
||
|
14032
|
14032
14032-1257 COVER-CLUTCH |
14032-1257 |
US $218.92 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
92028
|
92028
92028-1251 BUSHING,13X15X20Bushing,13x15x20; |
92028-1251 |
from US $7.76 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
Bearing,needle,hk1210; |
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FMBearing,needle,hk1210; |
92046-0034 |
from US $12.67 |
||
|
92049
|
92049
92049-1271 SEAL-OIL |
92049-1271 |
from US $8.15 |
||
|
92049A
|
92049A
92050-024
SEAL-OIL,HTC 32 52 10
Oil seal sc325210; |
92050-024 |
— | ||
| replacement | |||||
|
92049A
|
92049A
92049-1506 SEAL-OIL,HTC 32 52 10Oil seal sc325210; |
92049-1506 |
from US $5.23 |
||
|
92049B
|
92049B
92051-005 OIL SEAL,TB13225.5Oil seal,tb13225.5; |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-049 O-RING,31MM"0" ring,31mm; |
92055-049 |
from US $3.37 |
||
