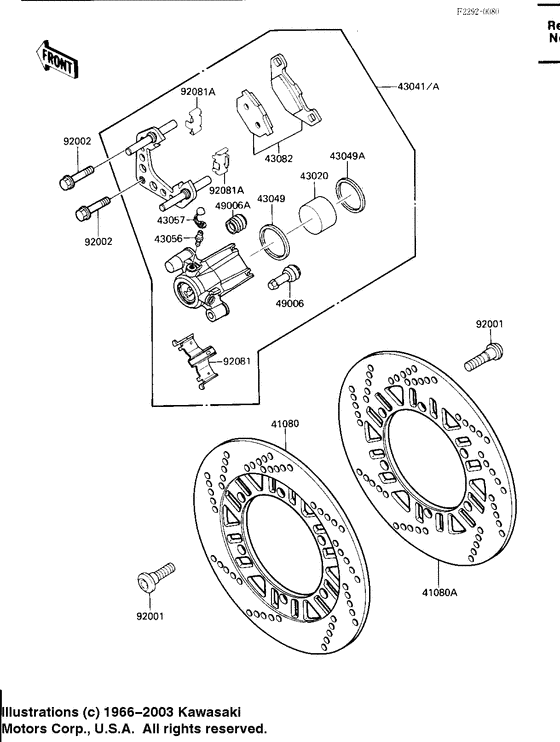

Front brake Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1149 DISC,FR,LHDisc,fr,lh; |
41080-1149 |
US $626.65 |
||
|
41080A
|
41080A
41080-1150 DISC,FR,RHDisc,fr,rh; |
41080-1150 |
US $626.65 |
||
|
43020
|
43020
43020-1066 PISTON-COMP-BRAKE |
43020-1066 |
from US $75.85 |
||
|
43041
|
43041
43041-1194 Caliper-assy,fr,lhCaliper-assy,fr,lh; |
43041-1194 |
US $429.28 |
||
| replacements | |||||
|
43041
|
43041
43080-5003-GN CALIPER-SUB-ASSY,FR,LCaliper-assy,fr,lh; |
43080-5003-GN |
US $513.50 |
||
|
43041
|
43041
43082-1061 PAD-ASSY-BRAKECaliper-assy,fr,lh; |
43082-1061 |
from US $58.12 |
||
|
43041
|
43041
43041-1316-GN CALIPER-ASSY,FR,LH,SICaliper-assy,fr,lh; |
43041-1316-GN |
US $480.64 |
||
|
43041
|
43041
43041-1316 CALIPER-ASSY,FR,LH,SICaliper-assy,fr,lh; |
43041-1316 |
US $480.64 |
||
|
43041A
|
43041A
43041-1471 CALIPER-ASSY,FR,LH,SICaliper-assy,fr,rh; |
43041-1471 |
US $416.90 |
||
| replacements | |||||
|
43041A
|
43041A
43080-5004-GN CALIPER-SUB-ASSY,FR,RCaliper-assy,fr,rh; |
43080-5004-GN |
US $328 |
||
|
43041A
|
43041A
43082-1061 PAD-ASSY-BRAKECaliper-assy,fr,rh; |
43082-1061 |
from US $58.12 |
||
|
43041A
|
43041A
43041-1471-GN CALIPER-ASSY,FR,LH,SICaliper-assy,fr,rh; |
43041-1471-GN |
US $390.24 |
||
|
43049
|
43049
43049002
PACKING,PISTON SEAL
Ring,piston seal; |
43049002 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1098 PACKING,PISTON SEALRing,piston seal; |
43049-1098 |
from US $8.78 |
||
|
43049A
|
43049A
43049-1028 PACKING,PISTONPacking,piston; |
43049-1028 |
from US $9.66 |
||
|
43056
|
43056
43056-003
BLEEDER SET
Breeder; |
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETBreeder; |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDERCap,breeder; |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1061 PAD-ASSY-BRAKE |
43082-1061 |
from US $58.12 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPERBoot,caliper; |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPERBoot,caliper; |
49006-1095 |
from US $4.91 |
||
|
92001
|
92001
92001-1951
Bolt,socket,8x30
Bolt,socket,8x30; |
92001-1951 |
— | ||
| replacement | |||||
|
92001
|
92001
92154-1865 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92154-1865 |
from US $2.85 |
||
|
92002
|
92002
92002-1468 BOLT,FLANGED,10X41Bolt,flanged,10x41; |
92002-1468 |
from US $5.54 |
||
|
92081
|
92081
92081-1525 SPRING,PADSpring,pad; |
92081-1525 |
from US $13.15 |
||
|
92081A
|
92081A
92081-1661 SPRING,PAD STOPPERSpring,pad stopper; |
92081-1661 |
from US $8.24 |
||
