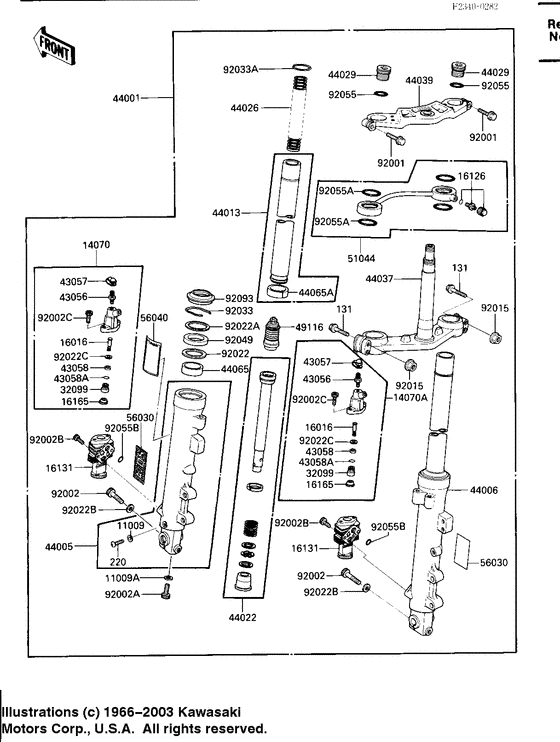

Front fork Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
130G0850 BOLT-FLANGED,8X50Bolt,flanged,8x50; |
130G0850 |
from US $1.43 |
||
| replacement | |||||
|
131
|
131
130BA0850 BOLT-FLANGED,8X50Bolt,flanged,8x50; |
130BA0850 |
from US $1.40 |
||
|
220
|
220
220E0408 SCREW PAN HEAD 4X8Screw pan head 4x8; |
220E0408 |
from US $0.95 |
||
|
11009
|
11009
44045002 GASKET FORK DRAIN PLGGasket,cylinder base; |
44045002 |
from US $3.96 |
||
|
11009A
|
11009A
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
14070
|
14070
14070-1070 BODY-BREATHER,ANTI-DIBody-breather,anti-di; |
14070-1070 |
US $239.76 |
||
|
14070A
|
14070A
14070-1060
BODY-BREATHER,ANTI-DI
Body-breather,anti-di; |
14070-1060 |
— | ||
| replacement | |||||
|
14070A
|
14070A
14070-1071
BODY-BREATHER,ANTI-DI
Body-breather,anti-di; |
14070-1071 |
— | ||
|
16016
|
16016
16016-1067 PLUNGER,ANTI-DIVEPlunger,anti-dive; |
16016-1067 |
US $33.41 |
||
|
16126
|
16126
16126-1052 VALVE AIRValve air; |
16126-1052 |
from US $23.34 |
||
|
16131
|
16131
16131-1058 BODY-VALVE,FORK,ANTI-Body-valve,fork,anti-; |
16131-1058 |
US $192.08 |
||
|
16165
|
16165
16165-1051
SEPARATOR
|
16165-1051 |
— | ||
|
32099
|
32099
32099-1067 CASE |
32099-1067 |
US $41.08 |
||
|
43056
|
43056
43056-003
BLEEDER SET
Breeder; |
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETBreeder; |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDERCap,breeder; |
43057-003 |
from US $3.01 |
||
|
43058
|
43058
43058-1052
RING
|
43058-1052 |
— | ||
|
43058A
|
43058A
43058-1053
RING
|
43058-1053 |
— | ||
|
44001
|
44001
44001-1664 FORK-FRONT |
44001-1664 |
US $1,704.74 |
||
|
44005
|
44005
44005-1255 PIPE-LEFT FORK OUTER |
44005-1255 |
US $298.40 |
||
|
44006
|
44006
44006-1252 PIPE-RIGHT FORK OUTER |
44006-1252 |
US $298.40 |
||
|
44013
|
44013
44013-1231 PIPE-FORK INNER |
44013-1231 |
US $298.33 |
||
|
44022
|
44022
44022-1181 CYLINDER-FORK |
44022-1181 |
US $94 |
||
|
44026
|
44026
44026-1302 SPRING-FRONT FORK,K=0Spring-front fork,k=0; |
44026-1302 |
US $67.54 |
||
|
44029
|
44029
44029-1121 SEAT-FORK SPRING |
44029-1121 |
from US $32.72 |
||
|
44037
|
44037
44037-1209 Holder-fork under |
44037-1209 |
US $304.51 |
||
|
44039
|
44039
44039-1157 HOLDER-FORK UPPER |
44039-1157 |
US $217.94 |
||
|
44065
|
44065
44065-1051 BUSHING-FRONT FORK |
44065-1051 |
US $19.30 |
||
| replacement | |||||
|
44065
|
44065
44065-1084 BUSHING-FRONT FORK |
44065-1084 |
from US $16.16 |
||
|
44065A
|
44065A
44065-1058 BUSHING-FRONT FORK |
44065-1058 |
from US $15.87 |
||
|
49116
|
49116
49116-1058 VALVE-ASSY,FORKValve-assy,fork; |
49116-1058 |
US $100.93 |
||
|
51044
|
51044
51044-1069 TUBE-ASSY |
51044-1069 |
US $135.34 |
||
|
56030
|
56030
56030-1057
LABEL,AVDS MARK
Label,avds mark; |
56030-1057 |
— | ||
|
56040
|
56040
56040-1117
LABEL-WARNING,SHOCKAB
Label-warning,shockab; |
56040-1117 |
— | ||
|
92001
|
92001
92001-1188
BOLT,8X40
Bolt,8x40; |
92001-1188 |
— | ||
|
92002
|
92002
92002-1316 BOLT |
92002-1316 |
from US $3.67 |
||
|
92002A
|
92002A
92002-1317 BOLT |
92002-1317 |
US $7.29 |
||
|
92002B
|
92002B
92002-1564 BOLT |
92002-1564 |
from US $7.22 |
||
|
92002C
|
92002C
92002-1565 BOLT |
92002-1565 |
US $6.93 |
||
|
92015
|
92015
92015-1485 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1485 |
from US $3.17 |
||
|
92022
|
92022
92022-1455 WASHER,FORK OUTER PIPWasher,fork outer pip; |
92022-1455 |
from US $4.28 |
||
|
92022A
|
92022A
92022-1524
WASHER,FORK OUTER PIP
Washer,fork outer pip; |
92022-1524 |
— | ||
|
92022B
|
92022B
92022-1598 WASHER |
92022-1598 |
from US $4.75 |
||
|
92022C
|
92022C
92022-1636 WASHER |
92022-1636 |
US $3.15 |
||
|
92033
|
92033
92033-1047 SNAP RING,FORK OUTERSnap ring,fork outer; |
92033-1047 |
from US $3.80 |
||
|
92033A
|
92033A
92033-1202 RING-SNAP |
92033-1202 |
US $6.25 |
||
|
92049
|
92049
92049-1372 SEAL-OIL,FORK OUTERTBSeal-oil,fork outer t; |
92049-1372 |
US $17.66 |
||
| replacement | |||||
|
92049
|
92049
92049-1435 SEAL-OIL,FORK OUTERTBSeal-oil,fork outer t; |
92049-1435 |
from US $14.26 |
||
|
92055
|
92055
92055-1051 0 RING,FORK TOP"0" ring,fork top; |
92055-1051 |
from US $3.17 |
||
|
92055A
|
92055A
92055-1164
RING-O,TUBE ASSY
Ring-o,tube assy; |
92055-1164 |
— | ||
|
92055B
|
92055B
92055-1201 O RING,12MMRing-o,anti-dive unit; |
92055-1201 |
US $4.03 |
||
| replacement | |||||
|
92055B
|
92055B
670B2012 O RING,12MMRing-o,anti-dive unit; |
670B2012 |
from US $2.84 |
||
|
92093
|
92093
92093-1314 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1314 |
US $19.51 |
||
| replacement | |||||
|
92093
|
92093
92093-1382 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1382 |
from US $15.84 |
||
