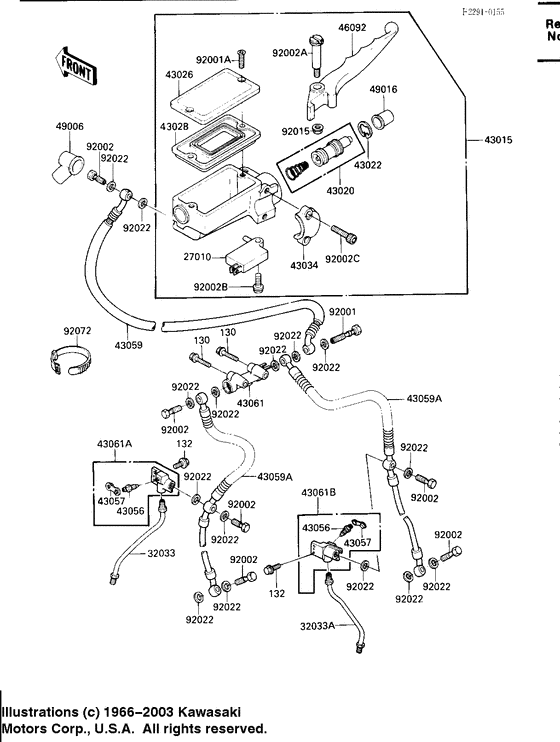

Front master cylinder Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0660 BOLT-FLANGEDBolt-flanged,6x60; |
130G0660 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BA0660 BOLT-FLANGEDBolt-flanged,6x60; |
130BA0660 |
from US $1.24 |
||
|
132
|
132
132H0616 BOLT-FLANGED-SMALL,6X |
132H0616 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
Switch,brake; |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKESwitch,brake; |
27010-0025 |
from US $23.19 |
||
|
32033
|
32033
32033-1240
PIPE,BRAKE,FR,LH
Pipe,brake,fr,lh; |
32033-1240 |
— | ||
|
32033A
|
32033A
32033-1241
PIPE,BRAKE,FR,RH
Pipe,brake,fr,rh; |
32033-1241 |
— | ||
|
43015
|
43015
43015-1288 CYLINDER-ASSY-MASTER, |
43015-1288 |
US $372.11 |
||
|
43020
|
43020
43020-1054 FRONT BRAKE PISTON-COMPPiston-comp-brake,fr; |
43020-1054 |
from US $50.63 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1055 CAP-BRAKE,FRCap-brake,fr; |
43026-1055 |
from US $35.31 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIDiaphragm,master cylinder; |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER CHolder-brake,master cylinder; |
43034-1053 |
from US $24.24 |
||
|
43056
|
43056
43056-1051 BREATHER-BRAKE |
43056-1051 |
from US $12.04 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43059
|
43059
43059-1616 HOSE-BRAKE,FRHose-brake,fr; |
43059-1616 |
US $69.93 |
||
| replacement | |||||
|
43059
|
43059
43059-1835 HOSE-BRAKE,FRHose-brake,fr; |
43059-1835 |
US $69.93 |
||
|
43059A
|
43059A
43059-1297 HOSE-BRAKE,FRHose-brake,fr; |
43059-1297 |
US $120.01 |
||
|
43061
|
43061
43061-1004 JOINT BRAKEJoint brake; |
43061-1004 |
from US $50.27 |
||
|
43061A
|
43061A
43061-1057 JOINT-BRAKE,FORK,LHJoint-brake,fork.lh; |
43061-1057 |
US $37.26 |
||
| replacement | |||||
|
43061A
|
43061A
43061-1064 JOINT-BRAKE,FORK,LHJoint-brake,fork.lh; |
43061-1064 |
US $37.26 |
||
|
43061B
|
43061B
43061-1058 JOINT-BRAKE,FORK,RHJoint-brake,fork,rh; |
43061-1058 |
US $38.81 |
||
| replacement | |||||
|
43061B
|
43061B
43061-1065 JOINT-BRAKE,FORK,RHJoint-brake,fork,rh; |
43061-1065 |
US $38.81 |
||
|
46092
|
46092
46092-1117 LEVER-GRIP,FRONT BRAKELever-grip,front brake; |
46092-1117 |
from US $21.24 |
||
|
49006
|
49006
49006-1041 BOOT,DUSTBoot,dust; |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cylinder; |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92002-1909 BOLT,OIL,L=37 |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92001
|
92001
92153-0628 BOLT,OIL,L=37 |
92153-0628 |
from US $6.65 |
||
|
92001A
|
92001A
92001-1727 BOLT,MASTER CYLINDERBolt,master cylinder; |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1900 BOLT |
92002-1900 |
US $9.27 |
||
|
92002A
|
92002A
92002-1322 BOLT,LEVER SETBolt,lever set; |
92002-1322 |
from US $7.13 |
||
|
92002B
|
92002B
92002-1323 BOLT |
92002-1323 |
from US $2.53 |
||
|
92002C
|
92002C
92002-1324 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92002-1324 |
from US $6.02 |
||
| replacement | |||||
|
92002C
|
92002C
92153-0417 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92153-0417 |
from US $3.80 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESSBand,wiring harness; |
92072-056 |
from US $3.01 |
||
