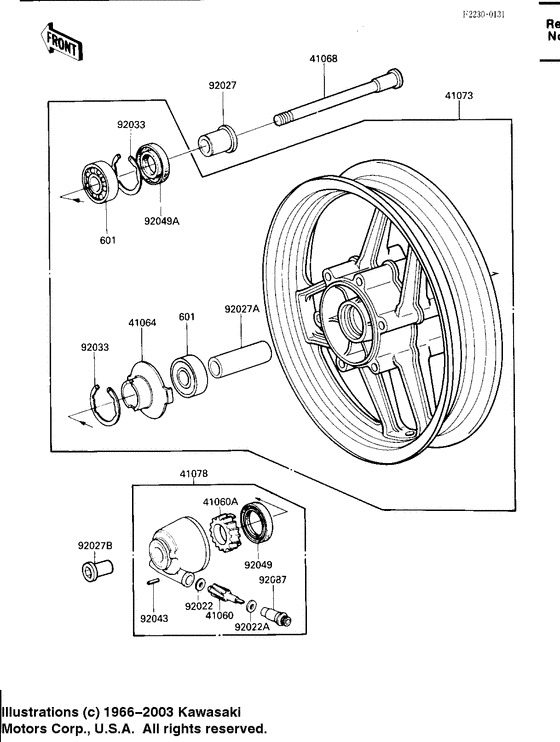

Front wheel/hub Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B63020
New Genuine Part
|
601B63020 |
— | ||
|
41060
|
41060
41060-1106 GEAR-METER SCREW,9TGear-meter screw,9t; |
41060-1106 |
from US $17.03 |
||
|
41060A
|
41060A
41060-1107 GEAR-METER SCREW,23TGear-meter screw,23t; |
41060-1107 |
from US $17.03 |
||
|
41064
|
41064
41064-1006 RECEIVER,SPEEDOMETERReceiver,speedometer; |
41064-1006 |
from US $10.30 |
||
|
41068
|
41068
41068-1164 AXLE,FRAxle,fr; |
41068-1164 |
from US $49.54 |
||
|
41073
|
41073
41073-1341-R2 WHEEL-ASSY,FR,BLACKWheel-assy,fr,black; |
41073-1341-R2 |
US $666.09 |
||
|
41078
|
41078
41078-1062 CASE-ASSY-METER GEAR |
41078-1062 |
from US $108.13 |
||
|
92022
|
92022
41063001 WASHER THRST SPD PINIWasher thrst spd pini; |
41063001 |
from US $3.17 |
||
|
92022A
|
92022A
41063001 WASHER THRST SPD PINIWasher thrst spd pini; |
41063001 |
from US $3.17 |
||
|
92027
|
92027
92027-1225 COLLAR,FR AXLE L=30MMCollar,fr axle l=30mm; |
92027-1225 |
from US $12.36 |
||
|
92027A
|
92027A
92027-1725 COLLAR,L=70Collar,l=70; |
92027-1725 |
from US $10.30 |
||
|
92027B
|
92027B
92027-1726 COLLAR,&NUT,FR AXLE,LCollar,&nut,fr axle,l; |
92027-1726 |
from US $18.69 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MMCirclip,42mm; |
92033-1041 |
from US $3.48 |
||
|
92043
|
92043
41082001 PIN,SPRINGPin,spring; |
41082001 |
from US $3.01 |
||
|
92049
|
92049
92049-1057 OIL SEAL,BJN30427-C3Oil seal,bjn30427-c3; |
92049-1057 |
from US $8.86 |
||
|
92049A
|
92049A
92049-1058 OIL SEAL,AG1144AOOil seal,ag1144ao; |
92049-1058 |
from US $8.40 |
||
|
92087
|
92087
92087-1002 BUSHING,METER GEARBushing,meter gear; |
92087-1002 |
from US $16.16 |
