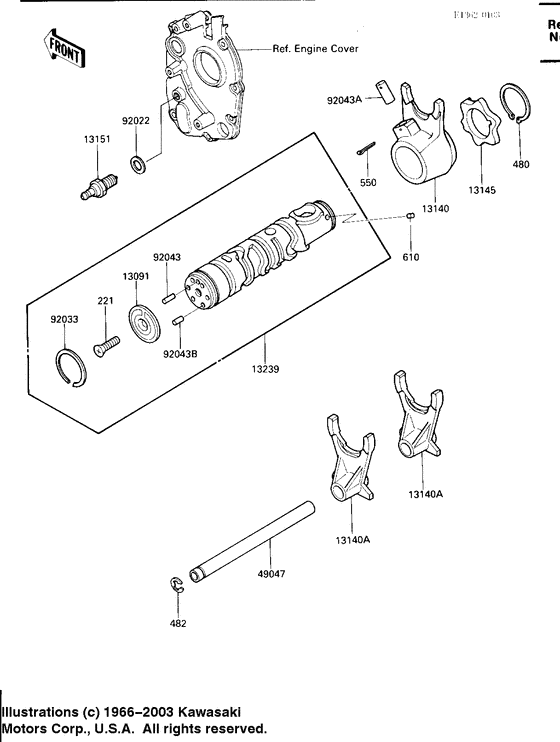

Gear change drum & forks Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221B0620
SCREW-CNTSNK HD,6X20
Screw cntsnk hd 6x20; |
221B0620 |
— | ||
| replacement | |||||
|
221
|
221
221AA0620 SCREW-CNTSNK HD,6X20Screw cntsnk hd 6x20; |
221AA0620 |
from US $1.25 |
||
|
480
|
480
480J3000 CIRCLIP,30MMCirclip,30mm; |
480J3000 |
from US $1.43 |
||
|
482
|
482
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $1.11 |
||
|
550
|
550
550D3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
550
|
550
550AA3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550AA3020 |
from US $1.11 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6Pin-dowel,4x6; |
610A0406 |
from US $0.79 |
||
|
13091
|
13091
13091-1104 HOLDER,CHANGE DRUM PINHolder,change drum pi; |
13091-1104 |
from US $17.58 |
||
|
13140
|
13140
13140-1016 SHIFT FORK,GEAR SHIFTShift fork,gear shift; |
13140-1016 |
from US $79.89 |
||
|
13140A
|
13140A
13140-1062 FORK-SHIFT,OUTPUTFork-shift,output; |
13140-1062 |
US $79.89 |
||
|
13145
|
13145
13145-1058 CAM-CHANGE DRUM |
13145-1058 |
from US $16.95 |
||
|
13151
|
13151
13151-1007 Switch-Comp,NeutralSwitch,neutral; |
13151-1007 |
US $9.29 |
||
| replacement | |||||
|
13151
|
13151
13151-1080 Switch-Comp,NeutralSwitch,neutral; |
13151-1080 |
from US $10.73 |
||
|
13239
|
13239
13239-1119 DRUM-ASSY-CHANGE |
13239-1119 |
US $178.92 |
||
| replacement | |||||
|
13239
|
13239
13239-1196 DRUM-ASSY-CHANGE |
13239-1196 |
from US $169.88 |
||
|
49047
|
49047
49047-1069 ROD-SHIFT |
49047-1069 |
from US $18.53 |
||
|
92022
|
92022
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
92033
|
92033
92033-035 CIRCLIP,37MMCirclip,37mm; |
92033-035 |
from US $4.28 |
||
|
92043
|
92043
92042-014 PIN GEAR CHANGE DRUMPin gear change drum; |
92042-014 |
from US $0.75 |
||
|
92043A
|
92043A
92042-021 DOWEL PIN,8X18Dowel pin,8x18; |
92042-021 |
from US $7.92 |
||
|
92043B
|
92043B
92042-030 PIN,GEAR CHNGE DRUMPin,gear chnge drum; |
92042-030 |
from US $2.69 |
||
