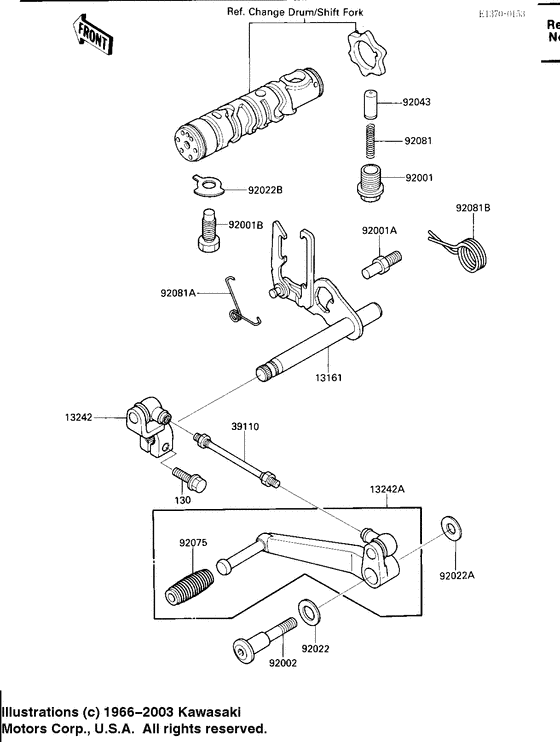

Gear change mechanism Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130S0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,bla; |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,bla; |
130CB0620 |
from US $1.11 |
||
|
13161
|
13161
13161-042 LEVER ASSY,GEAR SFTLever assy,gear sft; |
13161-042 |
from US $84.97 |
||
|
13242
|
13242
13242-1190 LEVER-ASSY-CHANGE |
13242-1190 |
from US $45.97 |
||
|
13242A
|
13242A
13242-1191 LEVER-ASSY-CHANGE,PEDLever-assy-change,ped; |
13242-1191 |
US $103.52 |
||
|
39110
|
39110
39110-1010 ROD-ASSY-TIE,CHANGE LRod-assy-tie,change l; |
39110-1010 |
from US $10.14 |
||
|
92001
|
92001
92001-1037 BOLT,NEUTRAL POSITIONBolt,neutral position; |
92001-1037 |
from US $9.19 |
||
|
92001A
|
92001A
92001-1401
BOLT,EXCLUSIVE MASS P
Bolt,return spring; |
92001-1401 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92001-1455 BOLT,EXCLUSIVE MASS PBolt,return spring; |
92001-1455 |
from US $2.85 |
||
|
92001B
|
92001B
92001-174 BOLT,HEX HEAD,10X26Bolt,hex head,10x26; |
92001-174 |
from US $4.44 |
||
|
92002
|
92002
92002-1773 BOLT,CHANE PEDALBolt,chane pedal; |
92002-1773 |
from US $13.78 |
||
|
92022
|
92022
92022-072 WASHER PLAIN 12MMWasher plain 12mm; |
92022-072 |
from US $3.20 |
||
|
92022A
|
92022A
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.69 |
||
|
92022B
|
92022B
92024-074 WASHER,LOCK,10MMWasher,lock,10mm; |
92024-074 |
from US $3.01 |
||
|
92043
|
92043
92043-076 PIN-NEUTRAL POSITIONPin-neutral position; |
92043-076 |
from US $7.44 |
||
|
92075
|
92075
92160-1036
DAMPER,CHANGE PEDAL
Damper,change pedal; |
92160-1036 |
— | ||
| replacement | |||||
|
92075
|
92075
92161-2382 DAMPER,CHANGE PEDALDamper,change pedal; |
92161-2382 |
from US $2.88 |
||
|
92081
|
92081
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
|
92081A
|
92081A
92083-018 SPRING,KICK PAWLSpring,kick pawl; |
92083-018 |
from US $6.18 |
||
|
92081B
|
92081B
92083-028
SPRING,CHG PEDL RTRN
Spring,chg pedl rtrn; |
92083-028 |
— | ||
