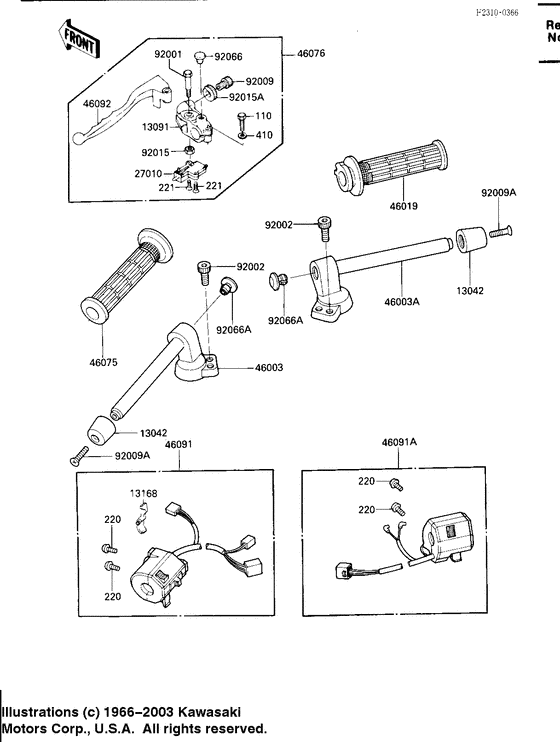

Handlebar Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110C0622 BOLT-UPSETBolt,6x22,black; |
110C0622 |
US $3.60 |
||
| replacement | |||||
|
110
|
110
112BB0622 BOLT-UPSETBolt,6x22,black; |
112BB0622 |
from US $0.95 |
||
|
220
|
220
220C0520 SCREW-PAN-CROS |
220C0520 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AB0520 SCREW-PAN-CROS |
220AB0520 |
from US $0.79 |
||
|
221
|
221
221C0316 SCREW-CSK-CROS |
221C0316 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AB0316 SCREW-CSK-CROS |
221AB0316 |
from US $0.79 |
||
|
410
|
410
410F0600 WASHER-PLAIN-SMALL,6MWasher plain; |
410F0600 |
from US $0.45 |
||
| replacement | |||||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6MWasher plain; |
410AB0600 |
from US $0.79 |
||
|
13042
|
13042
13042-1005 WEIGHT,HANDLEWeight,handle; |
13042-1005 |
from US $20.75 |
||
|
13091
|
13091
13091-1185 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1185 |
from US $37.10 |
||
|
13168
|
13168
13168-1239
LEVER,CHOKE
Lever,choke; |
13168-1239 |
— | ||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHSwitch,clutch; |
27010-1094 |
from US $21.07 |
||
|
46003
|
46003
46003-1183 HANDLE,LHHandle,lh; |
46003-1183 |
US $226.75 |
||
|
46003A
|
46003A
46003-1184 HANDLE,RHHandle,rh; |
46003-1184 |
US $215.93 |
||
|
46019
|
46019
46019-1059 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1059 |
from US $30.26 |
||
|
46075
|
46075
46075-1028 GRIP,LHGrip,lh; |
46075-1028 |
from US $14.34 |
||
|
46076
|
46076
46076-1041 LEVER-ASSY-GRIP,LHLever-assy-grip,lh; |
46076-1041 |
from US $83.03 |
||
|
46091
|
46091
46091-1335
HOUSING-ASSY-CONTROL,
Housing-assy-control,; |
46091-1335 |
— | ||
|
46091A
|
46091A
46091-1361
HOUSING-ASSY-CONTROL,
Housing-assy-control,; |
46091-1361 |
— | ||
|
46092
|
46092
46092-1050 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1050 |
from US $22.29 |
||
|
92001
|
92001
92001-1548 BOLT,CLUTCH LEVER,BLABolt,clutch lever,bla; |
92001-1548 |
from US $5.54 |
||
|
92002
|
92002
92002-1178 BOLT,SOCKET,8X20Bolt,socket,8x20; |
92002-1178 |
from US $3.01 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8Screw,cable adjust,8; |
92009-1134 |
from US $9.19 |
||
|
92009A
|
92009A
92009-1257 SCREW,HUNDLE WEIGHTScrew,hundle weight; |
92009-1257 |
from US $3.54 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
Nut,lock,6mm,black; |
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MMNut,lock,6mm,black; |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
92015-1197 |
from US $6.34 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8Plug,9.5x8; |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1179 PLUG,HANDLEPlug,handle; |
92066-1179 |
US $18.99 |
||
