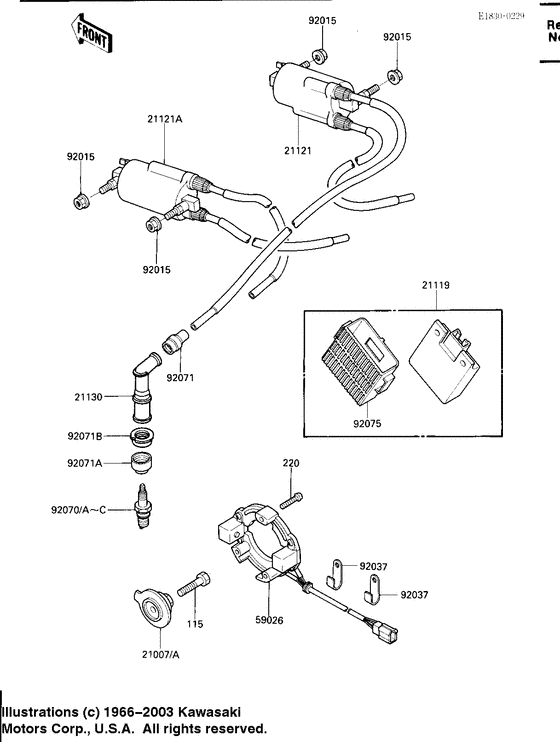

Ignition Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0835 BOLT,SMALL UPSETBolt,small upset; |
115G0835 |
from US $1.58 |
||
| replacement | |||||
|
115
|
115
115BA0835 BOLT,SMALL UPSETBolt,small upset; |
115BA0835 |
from US $1.09 |
||
|
220
|
220
220B0525
SCREW-PAN-CROS,5X25
Screw-pan-cros,5x25; |
220B0525 |
— | ||
| replacement | |||||
|
220
|
220
220AA0525 SCREW-PAN-CROS,5X25Screw-pan-cros,5x25; |
220AA0525 |
from US $1.25 |
||
|
21007
|
21007
21007-1130 ROTOR,PULSING COILRotor,pulsing coil; Us |
21007-1130 |
US $42.49 |
||
|
21007A
|
21007A
21007-1135 ROTOR,PULSING COILRotor,pulsing coil; Ca |
21007-1135 |
US $34.24 |
||
|
21119
|
21119
21119-1167
IGNITER
|
21119-1167 |
— | ||
|
21121
|
21121
21121-1132 COIL-IGNITION,#1Coil-ignition,#1 |
21121-1132 |
from US $158.22 |
||
|
21121A
|
21121A
21121-1133 COIL-IGNITION,#2Coil-ignition,#2 |
21121-1133 |
from US $158.22 |
||
|
21130
|
21130
21130-1057 Cap-spark plug |
21130-1057 |
US $35.82 |
||
| replacement | |||||
|
21130
|
21130
21130-1068 Cap-spark plug |
21130-1068 |
from US $28.57 |
||
|
59026
|
59026
59026-1068 COIL-PULSING |
59026-1068 |
from US $194.38 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92037
|
92037
21126008 CLAMP,WIRING HARNESSClamp,wiring harness; |
21126008 |
from US $3.33 |
||
|
92070
|
92070
D8EA KA SPARK PLUG D8EA(option) |
D8EA |
US $29.50 |
||
|
92070B
|
92070B
92070-1034 KA SPARK PLUG D9EAUnavailable in price book; |
92070-1034 |
US $41.60 |
||
| replacements | |||||
|
92070B
|
92070B
92070-1189 KA SPARK PLUG DR9EAUnavailable in price book; |
92070-1189 |
from US $4.16 |
||
|
92070B
|
92070B
E9207-010-34
D9ea (ngk sparkplug)
Unavailable in price book; |
E9207-010-34 |
— | ||
|
92071
|
92071
21131005 GROMMET,HIGH TENSIONGrommet,high tension; |
21131005 |
from US $4.59 |
||
|
92071A
|
92071A
92071-1124 GROMMET,PLUG CAPGrommet,plug cap; |
92071-1124 |
from US $6.34 |
||
|
92071B
|
92071B
92071-1144 GROMMET |
92071-1144 |
from US $6.34 |
||
|
92075
|
92075
92075-1504 DAMPER,IGNITERDamper,igniter; |
92075-1504 |
US $23.94 |
||
