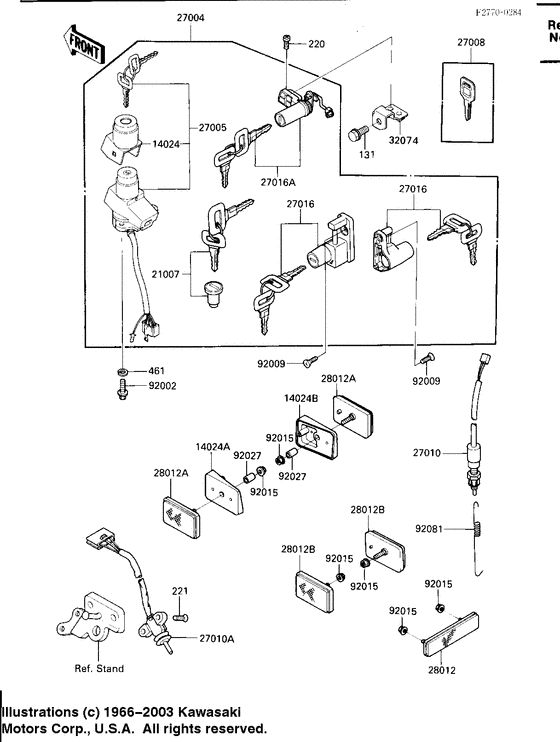

Ignition switch/locks/reflectors Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131B0612 BOLT-FLANGED,6X12Belt,flanged,6x12; |
131B0612 |
US $2.05 |
||
| replacement | |||||
|
131
|
131
130BA0612 BOLT-FLANGED,6X12Belt,flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
220
|
220
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
220
|
220
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.78 |
||
|
221
|
221
221C0520 SCREW-CSK-CROS |
221C0520 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AB0520 SCREW-CSK-CROS |
221AB0520 |
from US $0.78 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
14024
|
14024
14024-1332 COVER,IGNITION SWITCHCover,ignition switch; |
14024-1332 |
from US $8.24 |
||
|
14024A
|
14024A
14025-1886
COVER,REFLECTOR,FR
Cover,reflector,fr; |
14025-1886 |
— | ||
|
14024B
|
14024B
14025-1887 COVER,REFLECTOR,FRCover,reflector,fr; |
14025-1887 |
from US $11.58 |
||
|
21007
|
21007
21007-5012 ROTOR,LOCK,TANK CAPRotor,lock,tank cap; |
21007-5012 |
US $78.59 |
||
| replacement | |||||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAPRotor,lock,tank cap; |
21007-5037 |
from US $67.17 |
||
|
27004
|
27004
27004-5262 SWITCH-ASSY |
27004-5262 |
US $374.96 |
||
|
27005
|
27005
27005-5047 SWITCH-ASSY-IGNITION |
27005-5047 |
US $159.77 |
||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANKKey-lock,blank; |
27008-1103 |
from US $14.57 |
||
|
27010
|
27010
27010-1093
Switch,brake lamp
Switch,brake lamp; |
27010-1093 |
— | ||
| replacements | |||||
|
27010
|
27010
27010-1452 SWITCH,BRAKE LAMPSwitch,brake lamp; |
27010-1452 |
from US $19.64 |
||
|
27010
|
27010
27010-1479 SWITCH,REAR BRAKESwitch,brake lamp; |
27010-1479 |
from US $19.01 |
||
|
27010
|
27010
27010-1432 SWITCH,REAR BRAKESwitch,brake lamp; |
27010-1432 |
from US $20.94 |
||
|
27010A
|
27010A
27010-1190 SWITCH,SIDE STANDSwitch,side stand; |
27010-1190 |
US $49.07 |
||
| replacement | |||||
|
27010A
|
27010A
27010-1225 SWITCH,SIDE STANDSwitch,side stand; |
27010-1225 |
from US $49.07 |
||
|
27016
|
27016
27016-5091 LOCK-ASSY,HELMETLock-assy,helmet; |
27016-5091 |
from US $57.62 |
||
|
27016A
|
27016A
27016-5093 LOCK-ASSY,SEATLock-assy,seat; |
27016-5093 |
US $99.18 |
||
|
28012
|
28012
28012-1005 REFLECTOR,REAR REFLEXReflector,rear reflex; |
28012-1005 |
from US $15.87 |
||
|
28012A
|
28012A
28012-1052 REFLECTOR-REFLEX,FRReflector-reflex,fr; |
28012-1052 |
US $26.62 |
||
|
28012B
|
28012B
28012-1054
Reflector-reflex,rr
Reflector-reflex,rr; |
28012-1054 |
— | ||
| replacement | |||||
|
28012B
|
28012B
28012-1088 Reflector-reflexReflector-reflex,rr; |
28012-1088 |
from US $17.58 |
||
|
32074
|
32074
32074-1121 BRACKET-LOCK,SEATBracket-lock,seat; |
32074-1121 |
from US $10.33 |
||
|
92002
|
92002
92002-1333
Bolt
|
92002-1333 |
— | ||
| replacements | |||||
|
92002
|
92002
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92002
|
92002
92151-1911 BOLT,TORX,6X16 |
92151-1911 |
from US $1.11 |
||
|
92009
|
92009
92009-1305 SCREW,5X16Screw,5x16; |
92009-1305 |
from US $2.53 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMNut,flanged,5mm; |
92015-1259 |
from US $2.53 |
||
|
92027
|
92027
92027-1789 COLLAR,5X8X14.5Collar,5x8x14.5; |
92027-1789 |
from US $3.17 |
||
|
92081
|
92081
92081-1704 SPRING,BRAKE LAMP SWISpring,brake lamp swi; |
92081-1704 |
from US $5.07 |
||
