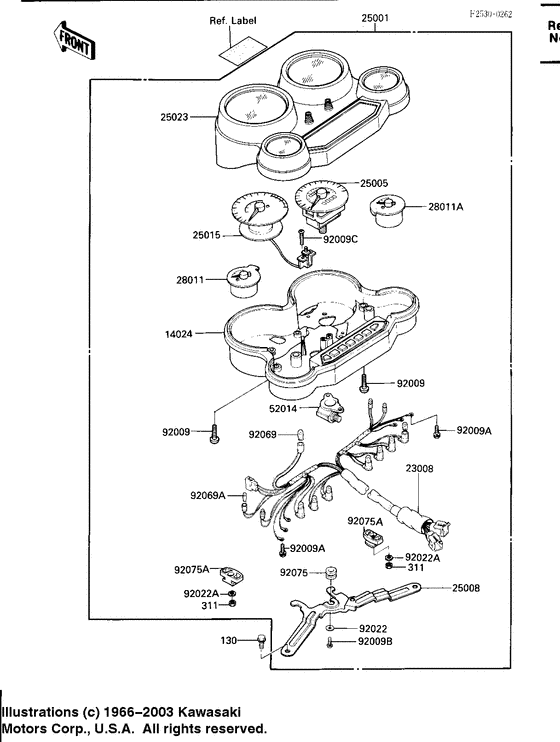

Meters Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14; |
130C0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BB0614 |
from US $1.11 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
14024
|
14024
14025-1877 COVER,METER HOUSINGCover,meter housing; |
14025-1877 |
US $81.34 |
||
|
23008
|
23008
23008-1269 SOCKET-ASSY,METERSocket-assy,meter; |
23008-1269 |
US $121.90 |
||
|
25001
|
25001
25001-1597 METER-ASSY,MPHMeter-assy,mph; |
25001-1597 |
US $1,088.71 |
||
|
25005
|
25005
25005-1299 SPEEDOMETER,MPHSpeedometer,mph; |
25005-1299 |
US $236.93 |
||
| replacement | |||||
|
25005
|
25005
25005-1304 SPEEDOMETER,MPHSpeedometer,mph; |
25005-1304 |
US $236.93 |
||
|
25008
|
25008
25008-1119 BRACKET-METER |
25008-1119 |
US $39.08 |
||
|
25015
|
25015
25015-1237 TACHOMETER,(X1000RPM)Tachometer,x1000r/min; |
25015-1237 |
US $318.28 |
||
| replacement | |||||
|
25015
|
25015
25015-1221 TACHOMETER,(X1000RPM)Tachometer,x1000r/min; |
25015-1221 |
US $318.28 |
||
|
25023
|
25023
25023-1127 COVER-METER CASE |
25023-1127 |
US $138.89 |
||
|
28011
|
28011
28011-1062 METER,FUELMeter,fuel; |
28011-1062 |
from US $74.81 |
||
|
28011A
|
28011A
28011-1070 METER,TEMPMeter,temp; |
28011-1070 |
from US $74.81 |
||
|
52014
|
52014
52014-1006 ELBOW,SPEEDOMETER GEAElbow,speedometer gea; |
52014-1006 |
from US $62.96 |
||
|
92009
|
92009
92009-1158 SCREW,4X16,BLACKScrew,4x16,black; |
92009-1158 |
from US $2.53 |
||
|
920090
|
920090
92009-1330 SCREW,TAPPING,2.6X12Screw,tapping,2.6x12; |
92009-1330 |
from US $2.21 |
||
|
920098
|
920098
92009-1326 SCREW,3X12Screw,3x12; |
92009-1326 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1293 SCREW,3X22Screw,3x22; |
92009-1293 |
from US $2.83 |
||
|
92022
|
92022
92022-1374 WASHER |
92022-1374 |
from US $2.30 |
||
|
92022A
|
92022A
92022-263 WASHER,PLAIN,6MMWasher,plain,6mm; |
92022-263 |
from US $2.19 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4WBulb,12v3.4w; |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1020 BULB,12V3W T-7Bulb,12v3w t-7; |
92069-1020 |
from US $4.44 |
||
|
92075
|
92075
92075-1435 DAMPER,METER BRACKETDamper,meter bracket; |
92075-1435 |
from US $3.96 |
||
|
92075A
|
92075A
92075-1495 DAMPER,METER BRACKETDamper,meter bracket; |
92075-1495 |
from US $8.87 |
||
