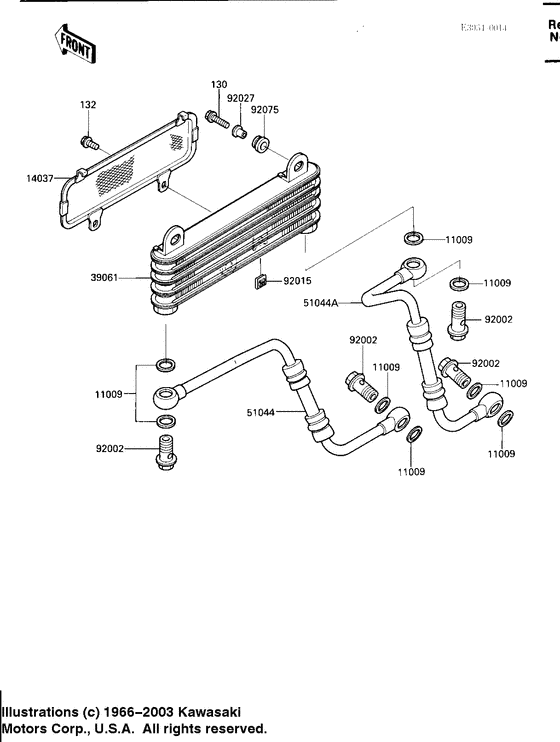

Oil cooler Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0620
BOLT-FLANGED
Bolt-flanged,6x20; |
130J0620 |
— | ||
| replacements | |||||
|
130
|
130
130BB0620 BOLT-FLANGEDBolt-flanged,6x20; |
130BB0620 |
from US $0.78 |
||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20; |
130CB0620 |
from US $1.11 |
||
|
132
|
132
132J0610
BOLT-FLANGED-SMALL,6X
Bolt-flanged-small,6x; |
132J0610 |
— | ||
| replacement | |||||
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x; |
132BB0610 |
from US $1.11 |
||
|
11009
|
11009
11009-1461 GASKET,14X19.5X1.4Gasket,14x19.5x1.4; |
11009-1461 |
from US $3.47 |
||
|
14037
|
14037
14037-1071 SCREEN,OIL COOLERScreen,oil cooler; |
14037-1071 |
US $48.85 |
||
|
39061
|
39061
39061-1074 OIL COOLER |
39061-1074 |
US $656.80 |
||
|
51044
|
51044
51044-1065 TUBE-ASSY,LHTube-assy,lh; |
51044-1065 |
US $239.76 |
||
|
51044A
|
51044A
51044-1066 TUBE-ASSY,RHTube-assy,rh; |
51044-1066 |
US $239.76 |
||
|
92002
|
92002
92001-1930 BOLT,14X28.5Bolt,14x28.5; |
92001-1930 |
from US $3.60 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92027
|
92027
92027-1651 COLLAR,FLANGED,L=12.1Collar,flanged,l=12.1; |
92027-1651 |
from US $6.02 |
||
|
92075
|
92075
92075-277 DAMPER RUBBERDamper rubber; |
92075-277 |
from US $3.60 |
||
