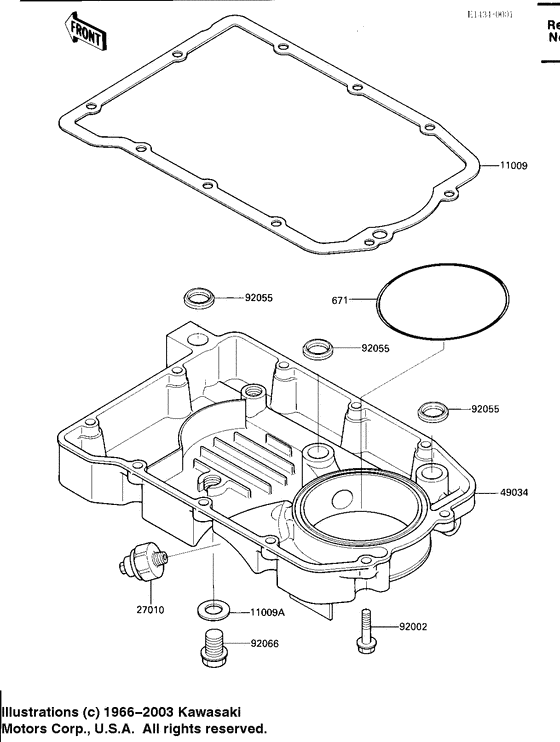

Oil pan Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
671
|
671
671B2590 O-RING,90MM"0" ring,90mm; |
671B2590 |
from US $6.34 |
||
|
11009
|
11009
11060-1149 GASKET,OIL PANGasket,oil pan; |
11060-1149 |
US $21.07 |
||
|
11009A
|
11009A
92065-097 GASKET,12X22X2,DRAIN PLUGGasket,drin plug; |
92065-097 |
from US $1.61 |
||
|
27010
|
27010
27010-1155 SWITCH,OIL PRESSURESwitch,oil pressure; |
27010-1155 |
US $37.76 |
||
| replacement | |||||
|
27010
|
27010
27010-1313 SWITCH,OIL PRESSURESwitch,oil pressure; |
27010-1313 |
from US $32.42 |
||
|
49034
|
49034
49034-1062 PAN-OIL |
49034-1062 |
US $155.34 |
||
| replacement | |||||
|
49034
|
49034
49034-1115 PAN-OIL |
49034-1115 |
US $155.34 |
||
|
92002
|
92002
92002-1089
BOLT-FLANGED,6X25
Bolt,6x25; |
92002-1089 |
— | ||
| replacement | |||||
|
92002
|
92002
130BB0625 BOLT-FLANGED,6X25Bolt,6x25; |
130BB0625 |
from US $1.61 |
||
|
92055
|
92055
92055-077 O RING"o" ring; |
92055-077 |
from US $3.80 |
||
|
92066
|
92066
92066-1174 PLUG,OIL DRAIN,12X15Plug,oil drain,12x15; |
92066-1174 |
from US $4.44 |
||
