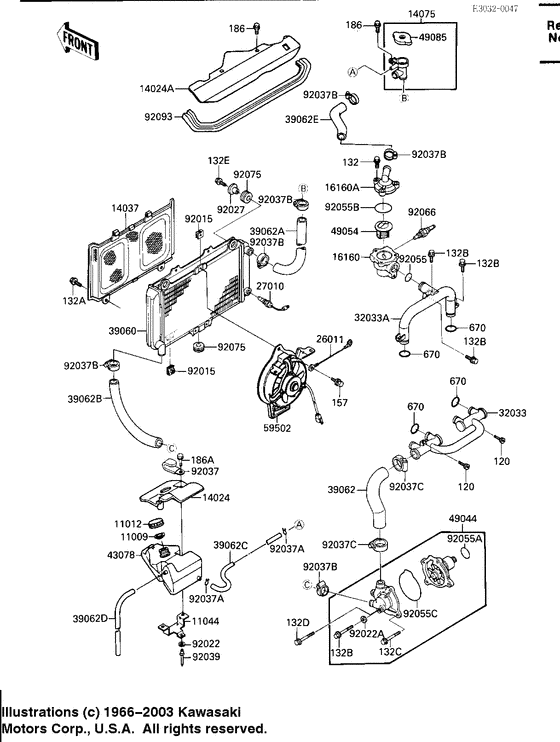

Radiator/fan/water pump Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0612 BOLT-SOCKET,6X12 |
120S0612 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CB0612 BOLT-SOCKET,6X12 |
120CB0612 |
from US $1.11 |
||
|
132
|
132
132E0620
BOLT
|
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132J0610
BOLT-FLANGED-SMALL,6X
Bolt-flanged-small,6x; |
132J0610 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0610 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x; |
132BB0610 |
from US $1.11 |
||
|
132B
|
132B
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132B
|
132B
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
132C
|
132C
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132C
|
132C
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
132D
|
132D
132J0645 BOLT,6X45 |
132J0645 |
US $36.70 |
||
| replacement | |||||
|
132D
|
132D
132BB0645 BOLT,6X45 |
132BB0645 |
from US $3.01 |
||
|
132E
|
132E
132J0825
BOLT-FLANGED-SMALL
|
132J0825 |
— | ||
| replacement | |||||
|
132E
|
132E
132BB0825 BOLT-FLANGED-SMALL |
132BB0825 |
from US $1.61 |
||
|
157
|
157
157J0616 Bolt |
157J0616 |
US $1.82 |
||
| replacements | |||||
|
157
|
157
187BB0616 BOLT-UPSET-WSP |
187BB0616 |
from US $0.92 |
||
|
157
|
157
187J0616 BOLT-UPSET-WSP |
187J0616 |
US $0.92 |
||
|
186
|
186
186C0614 BOLT-UPSET-WP |
186C0614 |
from US $1.11 |
||
| replacement | |||||
|
186
|
186
186AB0614 BOLT-UPSET-WP |
186AB0614 |
from US $1.24 |
||
|
186A
|
186A
186C0650 BOLT-UPSET-WP |
186C0650 |
US $2.57 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reserve tank; |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANKCap,reserve tank; |
11012-1084 |
from US $2.14 |
||
|
11044
|
11044
11044-1170 BRACKET,RESERVOIRBracket,reservoir; |
11044-1170 |
from US $9.54 |
||
|
14024
|
14024
14024-1090 COVER |
14024-1090 |
from US $11.43 |
||
|
14024A
|
14024A
14024-1137 COVER,RADIATORCover,radiator; |
14024-1137 |
from US $36.99 |
||
|
14037
|
14037
14037-1083 SCREEN |
14037-1083 |
from US $76.15 |
||
|
14075
|
14075
14075-1061 CAP-ASSY |
14075-1061 |
from US $113.10 |
||
|
16160
|
16160
16160-1092 BODY,THERMOSTAT,LWRBody,thermostat,lwr; |
16160-1092 |
from US $55.05 |
||
|
16160A
|
16160A
16160-1129 BODY |
16160-1129 |
from US $49.07 |
||
|
26011
|
26011
26011-1360 WIRE-LEAD,GROUNDWire-lead,ground; |
26011-1360 |
from US $3.74 |
||
|
27010
|
27010
27010-1180 SWITCH,FANSwitch,fan; |
27010-1180 |
from US $108.01 |
||
|
32033
|
32033
32033-1593
PIPE
|
32033-1593 |
— | ||
|
32033A
|
32033A
32033-1594
PIPE
|
32033-1594 |
— | ||
|
39060
|
39060
39060-1067 Radiator |
39060-1067 |
from US $833.92 |
||
|
39062
|
39062
39062-1111
HOSE-COOLING
|
39062-1111 |
— | ||
|
39062A
|
39062A
39062-1113 HOSE-COOLING |
39062-1113 |
US $20.64 |
||
|
39062B
|
39062B
39062-1114
HOSE-COOLING
|
39062-1114 |
— | ||
|
39062C
|
39062C
39062-1269 HOSE-COOLING |
39062-1269 |
from US $18.37 |
||
|
39062D
|
39062D
39062-1269 HOSE-COOLING |
39062-1269 |
from US $18.37 |
||
|
39062E
|
39062E
39062-1130 HOSE-COOLING |
39062-1130 |
US $19.96 |
||
|
43078
|
43078
43078-1062 RESERVOIR |
43078-1062 |
US $50.42 |
||
|
49044
|
49044
49044-1054
PUMP-WATER
|
49044-1054 |
— | ||
| replacement | |||||
|
49044
|
49044
49044-1081
PUMP-WATER
|
49044-1081 |
— | ||
|
49054
|
49054
49054-1055 THERMOSTAT |
49054-1055 |
from US $36.65 |
||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
59502
|
59502
59502-1057 FAN-ASSY |
59502-1057 |
US $540.97 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92022
|
92022
25009-004
WASHER,5.2X16X16X1.2T
Washer,5.2x16x16x1.2t; |
25009-004 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-2276
Washer,5.2X16X1.2
Washer,5.2x16x16x1.2t; |
92200-2276 |
— | ||
|
92022A
|
92022A
92022-1627 WASHER,6.2X6.2X1.0Washer,6mm; |
92022-1627 |
US $4.82 |
||
| replacement | |||||
|
92022A
|
92022A
92022-1976 WASHER,6.2X6.2X1.0Washer,6mm; |
92022-1976 |
from US $3.48 |
||
|
92027
|
92027
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
92037
|
92037
92037-1069
CLAMP
Clamp,wiring harness; |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPClamp,wiring harness; |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-147 CLAMP,CHAIN OILERClamp,chain oiler; |
92037-147 |
from US $4.95 |
||
|
92037B
|
92037B
92037-1589 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1589 |
from US $12.04 |
||
|
92037C
|
92037C
92037-1600 クランプ，ク-リング ホ-スClamp,cooling hose; |
92037-1600 |
US $6.95 |
||
| replacement | |||||
|
92037C
|
92037C
92171-0179 CLAMPClamp,cooling hose; |
92171-0179 |
from US $6.49 |
||
|
92039
|
92039
92039-1038 RIVET |
92039-1038 |
from US $2.43 |
||
|
92055
|
92055
92055-1081 O RING,22MM"o" ring; |
92055-1081 |
from US $2.85 |
||
| replacement | |||||
|
92055
|
92055
670B2022 O RING,22MM"o" ring; |
670B2022 |
from US $2.85 |
||
|
92055A
|
92055A
92055-1266 O-RING,33MMRing-o,33mm; |
92055-1266 |
from US $11.88 |
||
|
92055B
|
92055B
92055-1279 RING-O,45MMRing-o,45mm; |
92055-1279 |
from US $4.80 |
||
|
92055C
|
92055C
92055-1315 RING-O,WATER PUMPRing-o,water pump; |
92055-1315 |
from US $8.08 |
||
|
92066
|
92066
92066-1183 PLUG,SENSOR WATERPlug,sensor water; |
92066-1183 |
from US $39.49 |
||
|
92075
|
92075
92160-1007 DAMPER |
92160-1007 |
from US $4.09 |
||
|
92093
|
92093
92093-1189 SEAL,RADIATOR COVERSeal,radiator cover; |
92093-1189 |
from US $23.47 |
||
