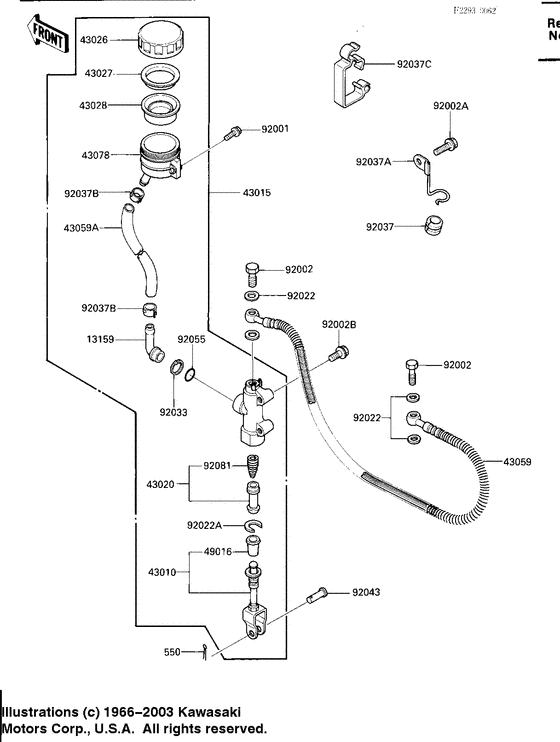

Rear master cylinder Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
13159
|
13159
13159-1052 CONNECTOR,RR MASTER CConnector,rr master c; |
13159-1052 |
from US $9.98 |
||
|
43010
|
43010
43010-1054 ROD-ASSY-BRAKE |
43010-1054 |
from US $52.81 |
||
|
43015
|
43015
43015-1304 CYLINDER-ASSY-MASTER,Cylinder-assy-master,rr; |
43015-1304 |
from US $362.14 |
||
|
43020
|
43020
43020-1057 PISTON-COMP-BRAKE |
43020-1057 |
from US $42.04 |
||
|
43026
|
43026
43026-1054
CAP-BRAKE
|
43026-1054 |
— | ||
|
43027
|
43027
43027-1051 PLATE-DIAPHRAGM |
43027-1051 |
from US $4.59 |
||
|
43028
|
43028
43028-1057 DIAPHRAGM |
43028-1057 |
from US $13.94 |
||
|
43059
|
43059
43059-1618 HOSE-BRAKE,RRHose-brake,rr; |
43059-1618 |
from US $88 |
||
|
43059A
|
43059A
43059-1313 HOSE-BRAKE,RR MASTERHose-brake,rr master; |
43059-1313 |
from US $25.97 |
||
|
43078
|
43078
43078-1082 RESERVOIR,RR MASTER CReservoir,rr master c; |
43078-1082 |
from US $19.01 |
||
|
49016
|
49016
49016-1103 COVER-SEAL |
49016-1103 |
from US $13.58 |
||
|
92001
|
92001
92001-1860 BOLT,6X16Bolt,6x16; |
92001-1860 |
from US $2.69 |
||
|
92002
|
92002
92002-1900 BOLT |
92002-1900 |
US $9.27 |
||
|
92002A
|
92002A
92002-1311 BOLT |
92002-1311 |
from US $3.80 |
||
|
92002B
|
92002B
92002-1485 Bolt,flanged,8x22Bolt,flanged,8x22; |
92002-1485 |
US $3.98 |
||
| replacement | |||||
|
92002B
|
92002B
92153-1624 BOLT,SOCKET,8X30Bolt,flanged,8x22; |
92153-1624 |
from US $1.90 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92022A
|
92022A
92022-1601 RING-SNAP,20.9X24.6X1 |
92022-1601 |
from US $4.44 |
||
| replacement | |||||
|
92022A
|
92022A
92033-0079 RING-SNAP,20.9X24.6X1 |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MMRing-snap,20.5mm; |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
43064007 DAMPER RUBBERGrommet, hose clamp; |
43064007 |
from US $3.64 |
||
|
92037A
|
92037A
92037-1540
CLAMP
|
92037-1540 |
— | ||
|
92037B
|
92037B
92037-1547 CLAMP |
92037-1547 |
from US $8.08 |
||
|
92037C
|
92037C
92037-1674 CLAMP,BRAKE HOSEClamp,brake hose; |
92037-1674 |
from US $6.28 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92055
|
92055
92055-1251 RING-O,14.8X2.4 |
92055-1251 |
from US $3.96 |
||
| replacement | |||||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92081
|
92081
92081-1737 SPRING |
92081-1737 |
from US $8.08 |
||
