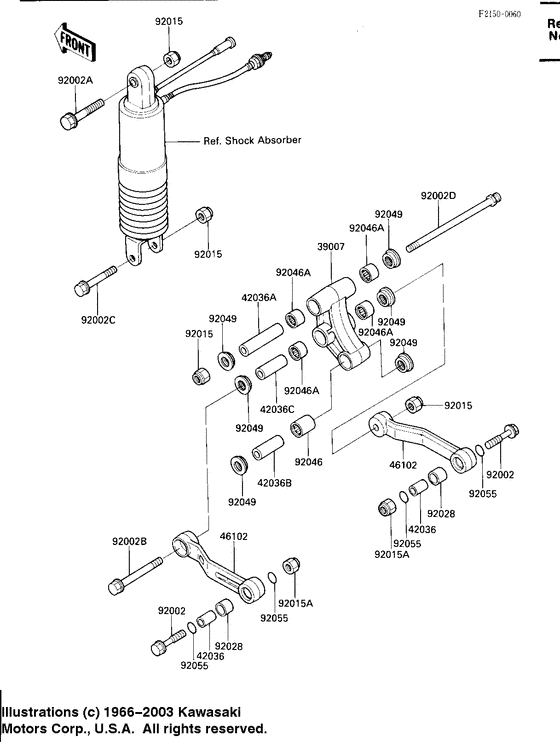

Rear suspension Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-1127 ARM-SUSP,UNI TRAKArm-susp,uni trak; |
39007-1127 |
from US $137.27 |
||
|
42036
|
42036
42036-1076 SLEEVE,TIE ROD,UPPSleeve,tie rod,upp; |
42036-1076 |
from US $12.67 |
||
|
42036A
|
42036A
42036-1102 SLEEVE,12.1X20X74Sleeve,12.1x20x74; |
42036-1102 |
from US $19.32 |
||
|
42036B
|
42036B
42036-1108 SLEEVE,12.5X20X39Sleeve,12.5x20x39; |
42036-1108 |
US $16.63 |
||
|
42036C
|
42036C
42036-1111 SLEEVE,12.5X20X50Sleeve,12.5x20x50; |
42036-1111 |
from US $15.52 |
||
|
46102
|
46102
46102-1140 ROD,UNI TRAKRod,uni trak; |
46102-1140 |
US $99.49 |
||
|
92002
|
92002
92001-1939 BOLT,FLANGED,12X45Bolt,12x45; |
92001-1939 |
from US $7.42 |
||
| replacement | |||||
|
92002
|
92002
92154-0366 BOLT,FLANGED,12X45Bolt,12x45; |
92154-0366 |
from US $4.05 |
||
|
920020
|
920020
92002-1490 BOLT,SUSPENSION ARMBolt,suspension arm; |
92002-1490 |
from US $20.43 |
||
| replacement | |||||
|
920020
|
920020
92153-0555 BOLT,SUSPENSION ARMBolt,suspension arm; |
92153-0555 |
from US $20.43 |
||
|
92002A
|
92002A
92002-1437 BOLT,FLANGED,12X100Bolt,flanged,12x100; |
92002-1437 |
from US $12.24 |
||
|
92002B
|
92002B
92002-1463 BOLT,FLANGED,12X85Bolt,flanged,12x85; |
92002-1463 |
from US $12.36 |
||
|
92002C
|
92002C
92002-1464 BOLT,FLANGED,12X60Bolt,flanged,12x60; |
92002-1464 |
from US $7.76 |
||
|
92015
|
92015
92015-1190 NUT,LOCK,12MM,BLACKNut,lock,12mm,black; |
92015-1190 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1375 NUT,LOCK,12MMNut,12mm; |
92015-1375 |
US $5.80 |
||
| replacements | |||||
|
92015A
|
92015A
92210-1247 NUT,LOCK,12MMNut,12mm; |
92210-1247 |
from US $3.96 |
||
|
92015A
|
92015A
92210-1249 NUT,LOCK,12MMNut,12mm; |
92210-1249 |
from US $3.96 |
||
|
92028
|
92028
92028-1599 BUSHING |
92028-1599 |
from US $18.37 |
||
|
92046
|
92046
92046-1110 BEARING-NEEDLE,BM2027Bearing-needle,bm2027; |
92046-1110 |
from US $19.80 |
||
|
92046A
|
92046A
92046-1112 BEARING-NEEDLE,BM2027Bearing-needle,bm2027; |
92046-1112 |
from US $17.27 |
||
|
92049
|
92049
92049-1109 SEAL-OIL,ARM,CNTSeal-oil,arm,cnt; |
92049-1109 |
from US $6.34 |
||
|
92055
|
92055
92055-1215 RING-0,19.8X2.2Ring-0,19.8x2.2; |
92055-1215 |
from US $2.69 |
||
