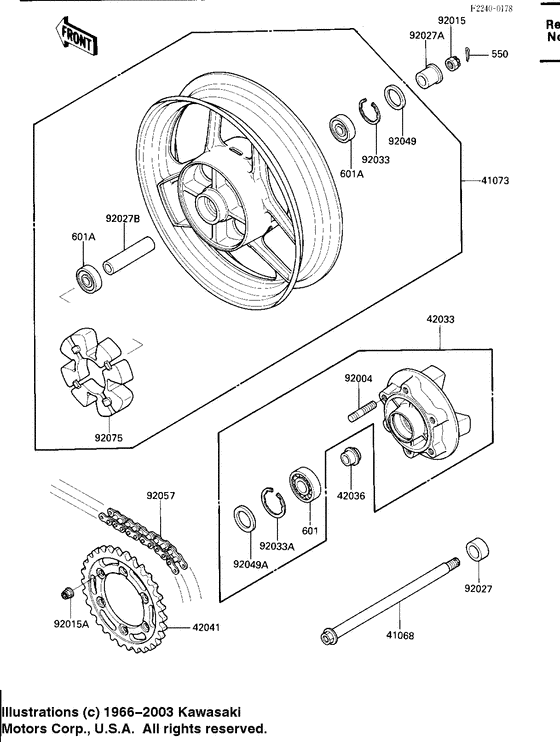

Rear wheel/hub/chain Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550AA4035 |
from US $0.91 |
||
|
601
|
601
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
601A
|
601A
601B6303ZZ BRG,BALL,#6303ZZC3Bearing-ball,#6303zzc3; |
601B6303ZZ |
from US $29.92 |
||
|
41068
|
41068
41068-1232 AXLE,RRAxle,rr; |
41068-1232 |
US $52.66 |
||
|
41073
|
41073
41073-1436-R2 WHEEL-ASSY,RR,BLACKWheel-assy,rr,black; |
41073-1436-R2 |
US $732.11 |
||
|
42033
|
42033
42033-1114
COUPLING-ASSY,RR HUB
Coupling-assy,rr hub; |
42033-1114 |
— | ||
| replacement | |||||
|
42033
|
42033
42033-1215 COUPLING-ASSY,RR HUBCoupling-assy,rr hub; |
42033-1215 |
from US $172.79 |
||
|
42036
|
42036
42036-1149 SLEEVE,RR HUB,L=26Sleeve,rr hub,l=26; |
42036-1149 |
from US $21.23 |
||
|
42041
|
42041
42041-1287 SPROCKET-HUB,39TSprocket-hub,39t; |
42041-1287 |
US $74.77 |
||
|
92004
|
92004
92004-1146 STUD,10X24Stud,10x24; |
92004-1146 |
US $4.57 |
||
| replacement | |||||
|
92004
|
92004
92004-0029 STUD,10X24Stud,10x24; |
92004-0029 |
from US $2.69 |
||
|
92015
|
92015
42045014 NUTNut castle 16m/m; |
42045014 |
US $8.41 |
||
| replacement | |||||
|
92015
|
92015
92015-1947 NUTNut castle 16m/m; |
92015-1947 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1502 NUTNut,flanged,10mm; |
92015-1502 |
US $10.19 |
||
| replacement | |||||
|
92015A
|
92015A
92210-1080 NUTNut,flanged,10mm; |
92210-1080 |
from US $6.49 |
||
|
92027
|
92027
92027-1874 COLLAR,RR AXLE,L=20Collar,rr axle,l=20; |
92027-1874 |
US $17.27 |
||
|
92027A
|
92027A
92027-1875 COLLAR,RR AXLE,L=28Collar,rr axle,l=28; |
92027-1875 |
US $18.37 |
||
|
92027B
|
92027B
92027-1876 COLLAR,L=106Collar,l=106; |
92027-1876 |
US $14.73 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/MCirclip,47m/m; |
92033-1042 |
from US $3.48 |
||
|
92033A
|
92033A
92033-1043 RING,SNAP,52 M/MRing,snap,56.2m/m; |
92033-1043 |
from US $5.54 |
||
|
92049
|
92049
92049-1056 OIL SEAL,AG1556EOOil seal,ag1556eo; |
92049-1056 |
from US $8.24 |
||
|
92049A
|
92049A
92052-006 SEAL-OILOil seal wtc35527; |
92052-006 |
US $14.41 |
||
| replacement | |||||
|
92049A
|
92049A
92049-1287 SEAL-OILOil seal wtc35527; |
92049-1287 |
from US $8.24 |
||
|
92057
|
92057
92057-1189 DR CHAIN EK50KVDO 102 |
92057-1189 |
US $612.52 |
||
|
92075
|
92075
92075-1687 DAMPER,SHOCK,RR HUBDamper,shock,rr hub; |
92075-1687 |
from US $33.06 |
||
