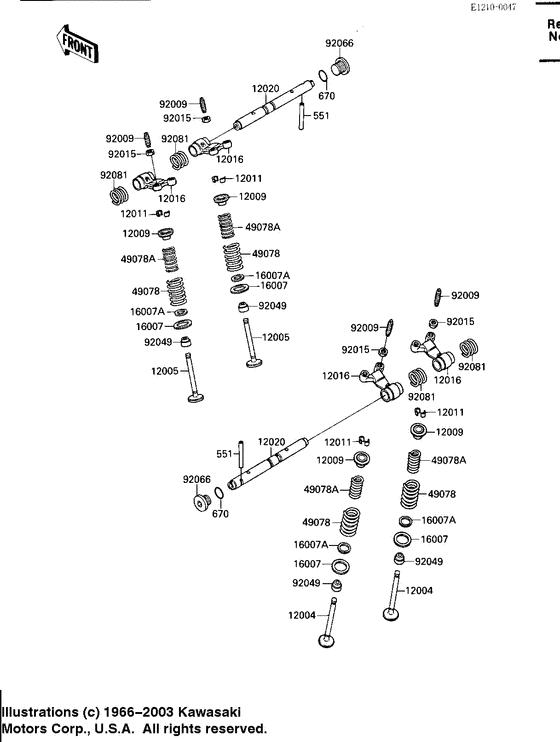

Rocker arms/valves Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
551
|
551
551A0540 PIN-DOWEL |
551A0540 |
US $3.64 |
||
|
670
|
670
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
12004
|
12004
12004-1075
VALVE-INTAKE
|
12004-1075 |
— | ||
|
12005
|
12005
12005-1062
VALVE-EXHAUST
|
12005-1062 |
— | ||
|
12009
|
12009
12009-1060 Retainer-valve spring |
12009-1060 |
from US $7.44 |
||
|
12011
|
12011
12011-1051 COLLET |
12011-1051 |
from US $2.53 |
||
|
12016
|
12016
12016-1062
ARM-ROCKER
|
12016-1062 |
— | ||
|
12020
|
12020
12020-1058 SHAFT-ROCKER |
12020-1058 |
from US $43.47 |
||
|
16007
|
16007
16007-1144 SEAT-SPRING,17.5X23.8 |
16007-1144 |
US $4.82 |
||
| replacement | |||||
|
16007
|
16007
16007-1178 SEAT-SPRING,17.5X23.8 |
16007-1178 |
from US $4.59 |
||
|
16007A
|
16007A
16007-1143 SEAT-SPRING,12.1X16.2 |
16007-1143 |
US $3.94 |
||
| replacement | |||||
|
16007A
|
16007A
16007-1177 SEAT-SPRING,12.1X16.2 |
16007-1177 |
from US $4.12 |
||
|
49078
|
49078
49078-1060 SPRING-ENGINE VALVE,OSpring-engine valve,o; |
49078-1060 |
US $10.53 |
||
|
49078A
|
49078A
49078-1061 SPRING-ENGINE VALVE,ISpring-engine valve,i; |
49078-1061 |
US $10.53 |
||
|
92009
|
92009
92009-1109 SCREW,VALVE ADJUSTScrew,valve adjust; |
92009-1109 |
from US $1.96 |
||
|
92015
|
92015
92015-1529 NUT,5MMNut,5mm; |
92015-1529 |
from US $3.13 |
||
|
92049
|
92049
92049-1218 SEAL-OIL,VSB58.558Seal-oil,vsb58.558; |
92049-1218 |
from US $5.12 |
||
|
92066
|
92066
92066-1192 PLUG,14X11.5Plug,14x11.5; |
92066-1192 |
from US $16.79 |
||
|
92081
|
92081
92081-1636 SPRING,ROCKER ARMSpring,rocker arm; |
92081-1636 |
from US $10.77 |
||
