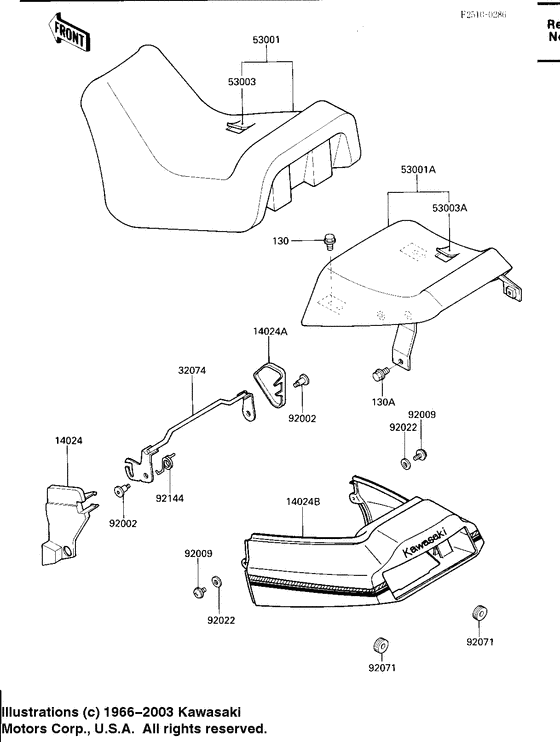

Seat/seat cover Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0612 BOLT,FLANGE,6X12Bolt; |
130B0612 |
US $7.90 |
||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12Bolt; |
130AA0612 |
from US $1.05 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt; |
130BA0612 |
from US $0.79 |
||
|
130A
|
130A
130G0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130G0814 |
from US $1.27 |
||
| replacement | |||||
|
130A
|
130A
130BA0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130BA0814 |
from US $0.95 |
||
|
14024
|
14024
14024-1051 COVER,SEAT LOCK,LHCover,seat lock,lh; |
14024-1051 |
from US $10.91 |
||
|
14024A
|
14024A
14024-1052 COVER,SEAT LOCK,RHCover,seat lock,rh; |
14024-1052 |
from US $6.05 |
||
|
14024B
|
14024B
14025-5261-T4 COVER,SEAT,EBONY/P.C.Cover,seat,ebony/p.c.; |
14025-5261-T4 |
US $350.33 |
||
|
32074
|
32074
32074-1113 BRACKET-LOCK,SEATBracket-lock,seat; |
32074-1113 |
from US $36.99 |
||
|
53001
|
53001
53001-1415-N3 SEAT-ASSY,FR,BLACKSeat-assy,fr,black; |
53001-1415-N3 |
US $210.29 |
||
| replacement | |||||
|
53001
|
53001
53001-1415-MA SEAT-ASSY,FR,BLACKSeat-assy,fr,black; |
53001-1415-MA |
from US $210.29 |
||
|
53001A
|
53001A
53001-1416-N3 SEAT-ASSY,RR,BLACKSeat-assy,rr,black; |
53001-1416-N3 |
US $190.80 |
||
| replacement | |||||
|
53001A
|
53001A
53001-1416-MA SEAT-ASSY,RR,BLACKSeat-assy,rr,black; |
53001-1416-MA |
US $190.80 |
||
|
53003
|
53003
53003-1130-N3 LEATHER,FRONT SEAT,BLLeather,front seat,bl; |
53003-1130-N3 |
US $125.73 |
||
|
53003A
|
53003A
53003-1131-N3 LEATHER,REAR SEAT BLALeather,rear seat,bla; |
53003-1131-N3 |
US $79.81 |
||
| replacement | |||||
|
53003A
|
53003A
53003-1131-MA LEATHER,REAR SEAT BLALeather,rear seat,bla; |
53003-1131-MA |
US $79.81 |
||
|
92002
|
92002
92002-1616 BOLT |
92002-1616 |
from US $8.08 |
||
|
92009
|
92009
92009-1251 SCREW,6X20,BLACKScrew,6x20,black; |
92009-1251 |
from US $3.64 |
||
|
92022
|
92022
92022-1654 WASHER,6.5X16X1.0Washer,6.5x16x1.0; |
92022-1654 |
from US $3.20 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92144
|
92144
92144-1086 SPRING |
92144-1086 |
from US $4.16 |
||
