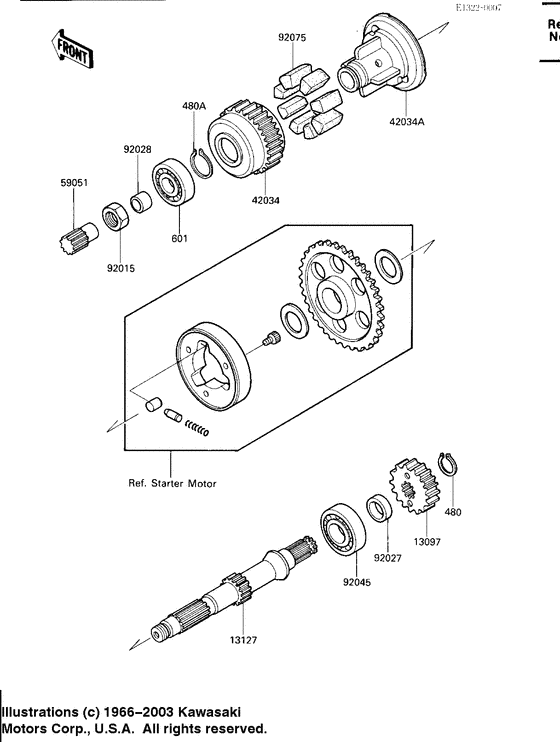

Secondary shaft Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J2200 CIRCLIP,22MMCirclip,22mm; |
480J2200 |
from US $1.27 |
||
|
480A
|
480A
480J2800 CIRCLIP 28MMCirclip 28mm; |
480J2800 |
from US $1.43 |
||
|
601
|
601
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
13097
|
13097
13097-1141 GEAR-PRIMARY SPUR,28TGear-primary spur,28t; |
13097-1141 |
US $87.21 |
||
|
13127
|
13127
13127-1123 SHAFT-TRANSMISSION INShaft-transmission in; |
13127-1123 |
from US $209.95 |
||
|
42034
|
42034
42034-1004 COUPLING,OUTERCoupling,outer; |
42034-1004 |
from US $107.56 |
||
|
42034A
|
42034A
42034-1005 COUPLING,INNERCoupling,inner; |
42034-1005 |
from US $119.38 |
||
|
59051
|
59051
59051-1137 GEAR-SPUR,10TGear-spur,10t; |
59051-1137 |
from US $24.53 |
||
|
92015
|
92015
92016-028 NUT 20MMNut 20mm; |
92016-028 |
from US $6.34 |
||
| replacement | |||||
|
92015
|
92015
92016-043
NUT,20MM
Nut 20mm; |
92016-043 |
— | ||
|
92027
|
92027
92027-1438 COLLAR |
92027-1438 |
from US $4.44 |
||
|
92028
|
92028
92028-1037 BUSHING,SECONDARYBushing,secondary; |
92028-1037 |
from US $18.69 |
||
|
92045
|
92045
92045-1017 BEARING,BALL,#63/22XBearing,ball,#63/22x; |
92045-1017 |
from US $22.74 |
||
|
92075
|
92075
92075-1070 DAMPER RUBBER,COUPLNGDamper rubber,couplng; |
92075-1070 |
from US $4.28 |
||
