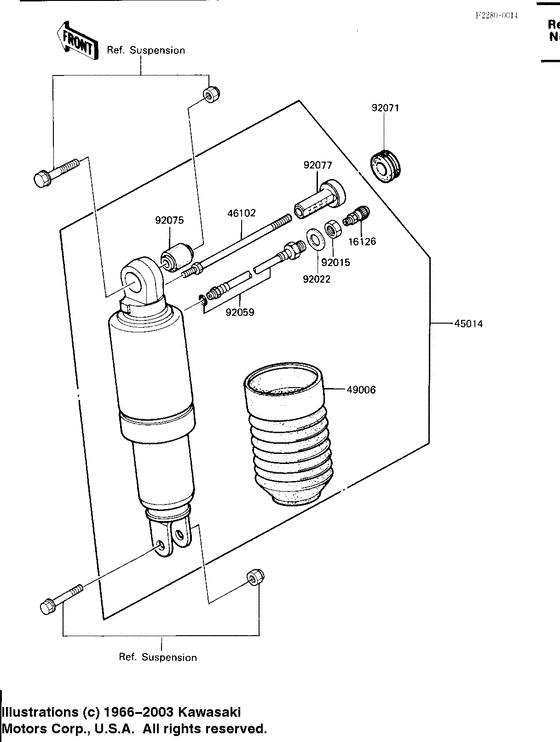

Shock absorber Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-1052 VALVE AIRValve air; |
16126-1052 |
from US $23.34 |
||
|
45014
|
45014
45014-1307
Shock Absorber
|
45014-1307 |
— | ||
|
46102
|
46102
46102-1151 ROD |
46102-1151 |
from US $10.01 |
||
|
49006
|
49006
49006-1151
BOOT,RR SHOCKABSORBER
Boot,rr shockabsorber; |
49006-1151 |
— | ||
|
92015
|
92015
92015-1305 NUT,14MMNut,14mm; |
92015-1305 |
from US $3.80 |
||
|
92022
|
92022
92022-1494 WASHER |
92022-1494 |
from US $3.33 |
||
|
92059
|
92059
92059-1364 TUBE,SHOCKABSORBERTube,shockabsorber; |
92059-1364 |
US $58.49 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1654 Dampers, shock absorbersDamper,shockabsorber; |
92075-1654 |
from US $21.39 |
||
|
92077
|
92077
92077-1051 KNOB,RR SHOCKABSORBERKnob,rr shockabsorber; |
92077-1051 |
from US $15.21 |
