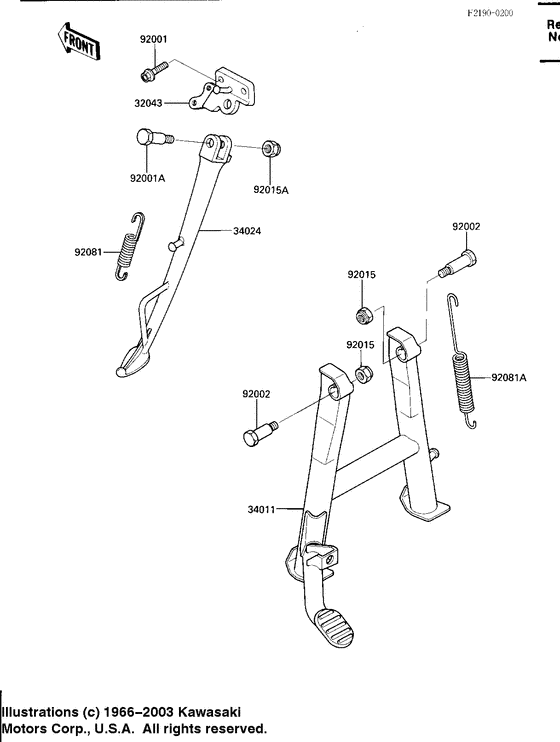

Stands Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32043
|
32043
32043-1263 BRACKET-STAND,SIDEBracket-stand,side; |
32043-1263 |
from US $47.39 |
||
|
34011
|
34011
34011-1122
STAND-CENTER
|
34011-1122 |
— | ||
|
34024
|
34024
34024-1192 STAND-SIDE |
34024-1192 |
from US $115.76 |
||
|
92001
|
92001
92001-1095 BOLT,8X28Bolt,8x28; |
92001-1095 |
from US $3.80 |
||
|
92001A
|
92001A
92003-157
BOLT,SIDE STAND
Bolt, side stand fit; |
92003-157 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92002-1813 BOLT,SIDE STANDBolt, side stand fit; |
92002-1813 |
from US $7.62 |
||
|
92002
|
92002
92002-1518 BOLT,CENTER STANDBolt,center stand; |
92002-1518 |
from US $7.60 |
||
|
92015
|
92015
92015-1188 NUT,LOCK,10MM,BLACKNut,lock,10mm,black; |
92015-1188 |
from US $4.25 |
||
|
92015A
|
92015A
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015A
|
92015A
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92081
|
92081
92081-1676 Spring,side standSpring,side stand; |
92081-1676 |
from US $9.13 |
||
| replacement | |||||
|
92081
|
92081
92145-0562 SPRING,SIDE STANDSpring,side stand; |
92145-0562 |
from US $9.75 |
||
|
92081A
|
92081A
92081-1834 SPRING,CENTER STANDSpring,center stand; |
92081-1834 |
US $10.77 |
||
