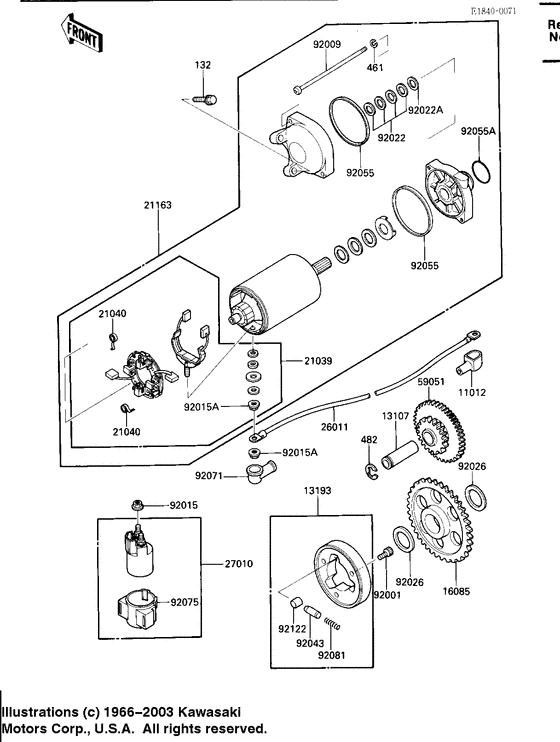

Starter motor/starter clutch Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
461
|
461
461K0500
WASHER-SPRING
Washer-spring,5mm,bla; |
461K0500 |
— | ||
| replacement | |||||
|
461
|
461
461DB0500 WASHER-SPRINGWasher-spring,5mm,bla; |
461DB0500 |
from US $0.79 |
||
|
482
|
482
482J0300 CIRCLIP-TYPE-E |
482J0300 |
from US $1.43 |
||
|
11012
|
11012
11012-1354 CAP,TERMINALCap,terminal; |
11012-1354 |
from US $7.44 |
||
|
13107
|
13107
13107-1144 SHAFT,IDLE GEARShaft,idle gear; |
13107-1144 |
from US $11.83 |
||
|
13193
|
13193
13193-1002 CLUTCH ASSY,ONEWAYClutch assy,oneway; |
13193-1002 |
from US $79.14 |
||
|
16085
|
16085
16085-1030 GEAR,ONEWAY CLUTCHGear,oneway clutch; |
16085-1030 |
from US $91.41 |
||
|
21039
|
21039
21039-1053 BRUSH,CARBONBrush,carbon; |
21039-1053 |
from US $100.53 |
||
|
21040
|
21040
21040-1003 SPRING-BRUSH |
21040-1003 |
from US $7.13 |
||
|
21163
|
21163
21163-1072 STARTER, ELECTRIC |
21163-1072 |
US $569.39 |
||
| replacement | |||||
|
21163
|
21163
21163-1242 STARTER, ELECTRIC |
21163-1242 |
US $569.39 |
||
|
26011
|
26011
26011-1251 WIRE-LEAD,STARTER MTRWire-lead,starter mtr; |
26011-1251 |
from US $55.50 |
||
|
27010
|
27010
27010-1235 SWITCH,MAGNETICSwitch,magnetic; |
27010-1235 |
from US $125.07 |
||
|
59051
|
59051
59051-1138 GEAR-SPUR,IDLEGear-spur,idle; |
59051-1138 |
from US $110.70 |
||
|
92001
|
92001
92001-1424 BOLT,SOCKET,8X10Bolt,socket,8x10; |
92001-1424 |
from US $3.33 |
||
|
92009
|
92009
92009-1397 SCREW |
92009-1397 |
US $6.46 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1476 NUT,6MMNut,6mm; |
92015-1476 |
from US $2.69 |
||
|
92022
|
92022
21025011 WASHER,THRUST,0.2TWasher,thrust,0.2t; |
21025011 |
from US $4.28 |
||
|
92022A
|
92022A
92022-1132 WASHER,THRUST,0.8TWasher,thrust,0.8t; |
92022-1132 |
from US $3.48 |
||
|
92026
|
92026
92026-1025 SPACER,25X36X3.2Spacer,25x36x3.2; |
92026-1025 |
from US $3.64 |
||
|
92043
|
92043
92043-132 PIN |
92043-132 |
from US $3.60 |
||
|
92055
|
92055
92055-1086 0 RING,STARTER MOTR"0" ring,starter motr; |
92055-1086 |
from US $6.34 |
||
|
92055A
|
92055A
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92071
|
92071
21017017 GROMMET,CORDGrommet,cord; |
21017017 |
from US $6.81 |
||
|
92075
|
92075
21064002 DAMPER,MAGNETIC SWITCDamper mag switch shk; |
21064002 |
from US $14.41 |
||
| replacement | |||||
|
92075
|
92075
92161-1722 DAMPER,MAGNETIC SWITCDamper mag switch shk; |
92161-1722 |
from US $14.10 |
||
|
92081
|
92081
92081-159 SPRING,COILSpring,coil; |
92081-159 |
from US $2.74 |
||
|
92122
|
92122
92122006 ROLLER |
92122006 |
from US $3.48 |
||
