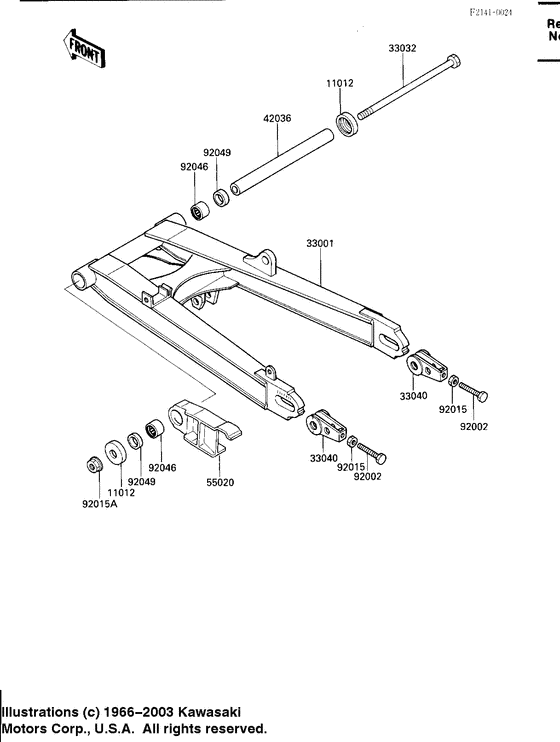

Swing arm Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1441 CAP,SWING ARMCap,swing arm; |
11012-1441 |
from US $12.24 |
||
|
33001
|
33001
33001-1237-P1 ARM-COMP-SWING,SILVERArm-comp-swing,silver; |
33001-1237-P1 |
US $495.79 |
||
|
33032
|
33032
33032-1114 SHAFT-SWING ARM |
33032-1114 |
from US $47.66 |
||
|
33040
|
33040
33040-1051 ADJUSTER-CHAIN |
33040-1051 |
from US $22.25 |
||
|
42036
|
42036
42036-1018 SLEEVE,SWING ARMSleeve,swing arm; |
42036-1018 |
US $48.47 |
||
|
55020
|
55020
55020-1188 GUARD,CHAINGuard,chain; |
55020-1188 |
from US $41.47 |
||
|
92002
|
92002
92002-1060 BOLT,8X50Bolt,8x50; |
92002-1060 |
from US $3.96 |
||
| replacement | |||||
|
92002
|
92002
92002-1958 BOLTBolt,8x50; |
92002-1958 |
from US $5.45 |
||
|
92015
|
92015
92015-1364 NUT,8MMNut,8mm; |
92015-1364 |
from US $2.53 |
||
|
92015A
|
92015A
92015-1407 NUT,14MMNut,14mm; |
92015-1407 |
from US $6.34 |
||
|
92046
|
92046
92046-1140 BEARING-NEEDLE,TA2230Bearing-needle,ta2230; |
92046-1140 |
US $18.69 |
||
|
92049
|
92049
92049-1219 SEAL-OIL,MHA22304Seal-oil,mha22304; |
92049-1219 |
from US $6.88 |
||
