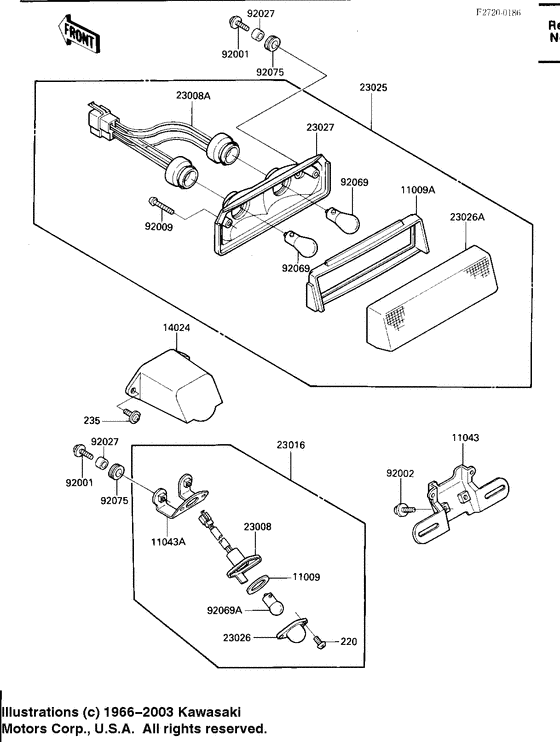

Taillight Diagram Kawasaki ZX600 Ninja 600RX
- Year
- 1987
- Model code
- ZX600-B1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220B0410 |
US $0.95 |
||
| replacement | |||||
|
220
|
220
220AA0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220AA0410 |
from US $0.79 |
||
|
235
|
235
235C0616 SCREW-PAN-WP-CROS |
235C0616 |
from US $1.11 |
||
| replacement | |||||
|
235
|
235
235AB0616 SCREW-PAN-WP-CROS |
235AB0616 |
from US $1.24 |
||
|
11009
|
11009
11009-1372 GASKET,LICENSE PLATEGasket,license plate; |
11009-1372 |
from US $3.33 |
||
|
11009A
|
11009A
11009-1404 GASKET,TAIL LAMPGasket,tail lamp; |
11009-1404 |
from US $16.16 |
||
|
11043
|
11043
11043-1440 BRACKET,REFLECTORBracket,reflector; |
11043-1440 |
from US $16.01 |
||
|
11043A
|
11043A
11043-1497 BRACKET,LICENSE PLATEBracket,license plate; |
11043-1497 |
US $15.52 |
||
|
14024
|
14024
14025-1821 COVER,LICENSE PLATE LCover,license plate l; |
14025-1821 |
from US $13.94 |
||
|
23008
|
23008
23008-1221 SOCKET-ASSY,LICENSE PSocket-assy,license p; |
23008-1221 |
US $10.46 |
||
|
23008A
|
23008A
23008-1225 SOCKET-ASSY,TAIL LAMPSocket-assy,tail lamp; |
23008-1225 |
from US $27.38 |
||
|
23016
|
23016
23016-1053 LAMP-ASSY,LICENSE PLALamp-assy,license pla; |
23016-1053 |
from US $52.81 |
||
| replacement | |||||
|
23016
|
23016
23016-1054 LAMP-ASSY,LICENSE PLATELamp-assy,license pla; |
23016-1054 |
from US $51.31 |
||
|
23025
|
23025
23025-1105 LAMP-TAIL |
23025-1105 |
from US $225.06 |
||
|
23026
|
23026
23026-1054 LENS,LICENSE PLATE LALens,license plate la; |
23026-1054 |
from US $7.60 |
||
|
23026A
|
23026A
23026-1056 LENS,TAIL LAMPLens,tail lamp; |
23026-1056 |
from US $22.29 |
||
|
23027
|
23027
23027-1064 BODY-COMP-TAIL LAMP |
23027-1064 |
US $21.08 |
||
|
92001
|
92001
92001-1773 BOLT,6X20Bolt,6x20; |
92001-1773 |
from US $2.53 |
||
|
92002
|
92002
92002-1351 BOLT |
92002-1351 |
from US $2.69 |
||
|
92009
|
92009
92009-1056 SCREW,TAPPINGScrew,tapping; |
92009-1056 |
from US $3.17 |
||
|
92027
|
92027
92027-120 COLLAR 6.8X10X10.5Collar 6.8x10x10.5; |
92027-120 |
from US $3.17 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CPBulb,12v 32/3cp; |
92069-059 |
from US $5.70 |
||
|
92069A
|
92069A
92069-1012 BULB,12V 4CPBulb,12v 4cp; |
92069-1012 |
US $3.33 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASEDamper rubber,case; |
92075-222 |
from US $4.12 |
||
