	Description	OEM Part #	Price
130	130 130G0612 BOLT-FLANGED,6X12 Bolt,flanged,6x12;	130G0612	—
	replacement
130	130 130BA0612 BOLT-FLANGED,6X12 Bolt,flanged,6x12;	130BA0612	from US $0.79
600	600 600A0500 BALL STEEL 5/32' Ball steel 5/32';	600A0500	from US $0.91
13127	13127 13127-1008 SHAFT,DRIVE,14T Shaft,drive,14t;	13127-1008	US $342.43
13128	13128 13128-1119 SHAFT-TRANSMISSION OU Shaft-transmission ou;	13128-1119	from US $190.21
13129	13129 13129-1077 GEAR,INPUT 2ND,18T 2nd gear,drive shaft;	13129-1077	US $94.73
	replacement
13129	13129 13260-1507 GEAR,INPUT 2ND,18T 2nd gear,drive shaft;	13260-1507	from US $80.63
13129A	13129A 13129-1078 GEAR,OUTPUT 2ND,32T 2nd gear,output,32t;	13129-1078	US $131.69
	replacement
13129A	13129A 13260-1509 GEAR,OUTPUT 2ND,32T 2nd gear,output,32t;	13260-1509	from US $112.65
13129B	13129B 13129-1083 5TH GEAR,OUTPUT,25T 5th gear,output,25t;	13129-1083	from US $125.96
13129C	13129C 13129-1564 GEAR,OUTPUT LOW,36T Gear,output low,36t;	13129-1564	from US $94.03
13129D	13129D 13260-1195 GEAR,INPUT 3RD&4TH,21 Gear input 3rd&4th,21;	13260-1195	US $133.15
	replacement
13129D	13129D 13260-1508 GEAR,INPUT 3RD&4TH,21 Gear input 3rd&4th,21;	13260-1508	from US $114.44
13129E	13129E 13129-1657 GEAR-TRANSMISSION SPU Gear,input 5th,26t;	13129-1657	US $105.97
	replacements
13129E	13129E 13260-1203 GEAR,INPUT 5TH,26T Gear,input 5th,26t;	13260-1203	from US $102.48
13129E	13129E 92028-1639 BUSHING Gear,input 5th,26t;	92028-1639	from US $15.21
13129E	13129E 13129-5004 GEAR-TRANSMISSION SPU Gear,input 5th,26t;	13129-5004	US $105.97
13129F	13129F 13129-1658 GEAR,INPUT TOP,27T Gear,input top,27t;	13129-1658	US $133.15
	replacement
13129F	13129F 13129-1859 GEAR,INPUT TOP,27T Gear,input top,27t;	13129-1859	from US $114.44
13129G	13129G 13129-1659 GEAR,OUTPUT 3RD,29T Gear,output 3rd,29t;	13129-1659	US $113.96
	replacement
13129G	13129G 13260-1510 GEAR,OUTPUT 3RD,29T Gear,output 3rd,29t;	13260-1510	from US $112.65
13129H	13129H 13129-1660 GEAR,OUTPUT 4TH,27T Gear,output 4th,27t;	13129-1660	from US $114.44
13129I	13129I 13129-1662 GEAR,OUTPUT TOP,23T Gear,output top,23t;	13129-1662	US $132.70
	replacement
13129I	13129I 13129-1858 GEAR,OUTPUT TOP,23T Gear,output top,23t;	13129-1858	US $132.70
13144	13144 13144-1117 SPROCKET-OUTPUT,15T Sprocket-output,15t;	13144-1117	—
13169	13169 13270-1060 PLATE,SPROCKET Plate,sprocket;	13270-1060	from US $6.81
92022	92022 92022-1072 WASHER,LOCK,30X1.OT Washer,lock,30x1.ot;	92022-1072	from US $2.93
92022A	92022A 92022-1139 WASHER,LOCK,1.0T Washer,lock,1.0t;	92022-1139	from US $4.12
92022B	92022B 92022-161 WASHER PLAIN Washer plain;	92022-161	from US $6.65
92022C	92022C 92024-033 WASHER-LOCK Washer-lock;	92024-033	from US $4.59
92026	92026 92026-1022 SPACER,20.3X30X2T Spacer,20.3x30x2t;	92026-1022	from US $3.80
92027	92027 92027-1106 COLLAR,25X32X23.5L Collar,25x32x23.5l;	92027-1106	from US $10.30
92028	92028 92028-1552 BUSHING,INPUT TOP GEA Bushing,input top gea;	92028-1552	from US $20.43
92028A	92028A 92028-1186 BUSHING,INPUT SHAFT Bushing,input shaft;	92028-1186	US $34.94
92028B	92028B 92028-1364 BUSHING	92028-1364	from US $23.94
92028C	92028C 92028-180 BUSHING,OUTPUT SHAFT Bushing,output shaft;	92028-180	from US $19.48
92033	92033 92033-015 CIRCLIP Circlip;	92033-015	from US $2.69
92033A	92033A 92033-026 CIRCLIP Circlip;	92033-026	from US $6.72
92033B	92033B 92033-1037 SNAP RING,25.9X1.2T Snap ring,25.9x1.2t;	92033-1037	from US $2.85
92045	92045 92045-035 BEARING,BALL Bearing,ball;	92045-035	from US $79.44
92046	92046 92046-1030 BEARING,VS20/14A Bearing,vs20/14a;	92046-1030	from US $19.96

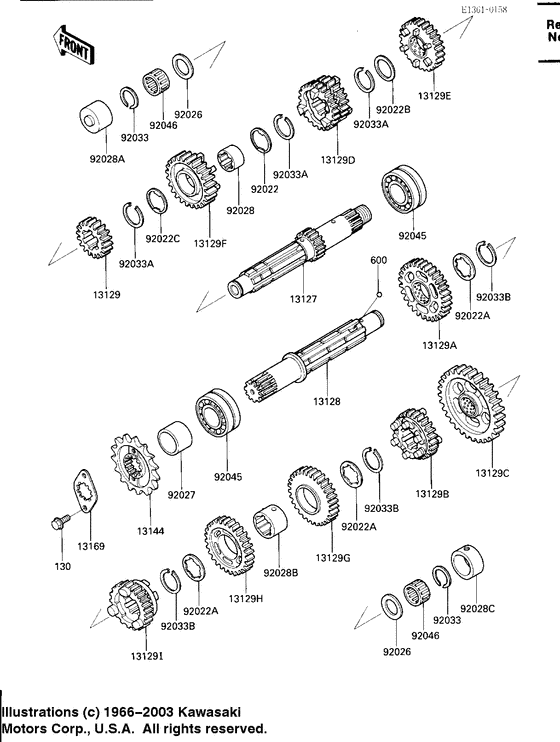

Transmission Diagram Kawasaki ZX600 Ninja 600RX USA 10420726-684004

Transmission Diagram Kawasaki ZX600 Ninja 600RX USA 10420726-684004
