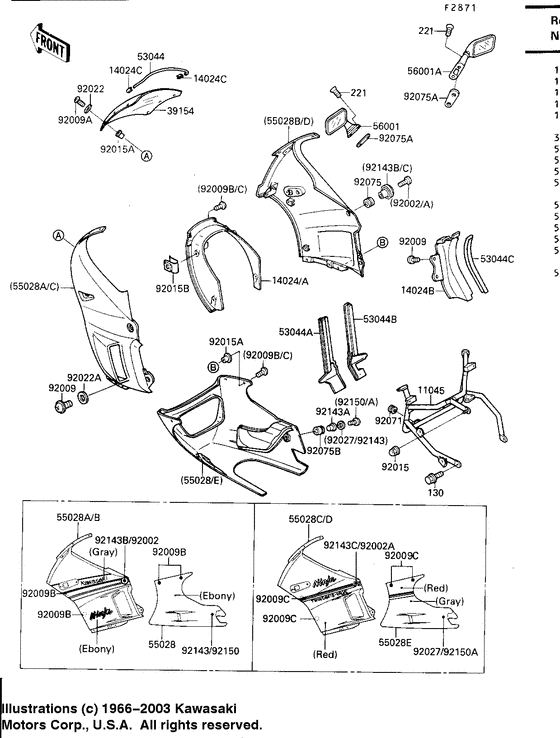

Cowling (Zx600-c1) Diagram Kawasaki ZX600 Ninja 600R
- Year
- 1988
- Model code
- ZX600-C1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11045
|
11045
11045-1538
BRACKET,COWLING
Bracket,cowling; |
11045-1538 |
— | ||
|
14024
|
14024
14024-1408-A5 COVER,HEAD LAMP,C.P.RCover,head lamp,c.p.red; |
14024-1408-A5 |
US $216.77 |
||
|
14024A
|
14024A
14024-1408-H8
COVER,HEAD LAMP,EBONY
Cover,head lamp,ebony; |
14024-1408-H8 |
— | ||
|
14024B
|
14024B
14024-1538
COVER,COWLING,INNER,R
Cover,cowling,inner,rh; |
14024-1538 |
— | ||
|
14024C
|
14024C
14025-1756 COVER,WINDSHIELD ENDCover,trim end; |
14025-1756 |
from US $5.07 |
||
|
39154
|
39154
39154-1107
WINDSHIELD
|
39154-1107 |
— | ||
|
53044
|
53044
53044-1130
TRIM,WINDSHIELD
Trim,windshield; |
53044-1130 |
— | ||
|
53044A
|
53044A
53044-1193
TRIM,COWLING,LH
Trim,cowling,lh; |
53044-1193 |
— | ||
|
53044B
|
53044B
53044-1194
TRIM,COWLING,RH
Trim,cowling,rh; |
53044-1194 |
— | ||
|
53044C
|
53044C
53044-1198 TRIM |
53044-1198 |
from US $10.77 |
||
|
55028
|
55028
55028-1156-H8 COWLING,LWR,EBONYCowling,lwr,ebony; |
55028-1156-H8 |
US $387.18 |
||
|
55028A
|
55028A
55028-5359-T4 COWLING.,UPP,LH,EBONYCowling,upp,lh,ebony/gray; |
55028-5359-T4 |
US $567 |
||
| replacement | |||||
|
55028A
|
55028A
55048-5210-H8 COWLING.,UPP,LH,EBONYCowling,upp,lh,ebony/gray; |
55048-5210-H8 |
US $567 |
||
|
55028B
|
55028B
55028-5360-T4 COWLING.,UPP,RH,EBONYCowling,upp,rh.ebony/gray; |
55028-5360-T4 |
US $567 |
||
| replacement | |||||
|
55028B
|
55028B
55048-5214-H8 COWLING.,UPP,RH,EBONYCowling,upp,rh.ebony/gray; |
55048-5214-H8 |
US $567 |
||
|
55028C
|
55028C
55028-5377-A5 COWLING.,UPP,LH,C.P.RCowling,upp,lh,c.p.red; |
55028-5377-A5 |
US $567.63 |
||
| replacement | |||||
|
55028C
|
55028C
55048-5211-A5 COWLING.,UPP,LH,C.P.RCowling,upp,lh,c.p.red; |
55048-5211-A5 |
US $567.63 |
||
|
55028D
|
55028D
55028-5378-A5 COWLING.,UPP,RH,C.P.RCowling,upp,rh,c.p.red; |
55028-5378-A5 |
US $567 |
||
| replacement | |||||
|
55028D
|
55028D
55048-5215-A5 COWLING.,UPP,RH,C.P.RCowling,upp,rh,c.p.red; |
55048-5215-A5 |
US $567 |
||
|
55028E
|
55028E
55028-5379-CF COWLING.,LWR,M.GRAYSTCowling,lwr,red/graystone; |
55028-5379-CF |
US $457.20 |
||
| replacement | |||||
|
55028E
|
55028E
55048-5220-C4 COWLING.,LWR,M.GRAYSTCowling,lwr,red/graystone; |
55048-5220-C4 |
US $457.20 |
||
|
56001
|
56001
56001-1317 MIRROR-ASSY,LHMirror-assy,lh; |
56001-1317 |
US $74.56 |
||
| replacement | |||||
|
56001
|
56001
56001-1319
MIRROR-ASSY,LH
Mirror-assy,lh; |
56001-1319 |
— | ||
|
56001A
|
56001A
56001-1318 MIRROR-ASSY,RHMirror-assy,rh; |
56001-1318 |
US $74.56 |
||
| replacement | |||||
|
56001A
|
56001A
56001-1320 MIRROR-ASSY,RHMirror-assy,rh; |
56001-1320 |
from US $55.21 |
||
|
92002
|
92002
92002-1514
BOLT,SOCKET,6X18,BLAC
Bolt,socket,6x18,black; |
92002-1514 |
— | ||
| replacement | |||||
|
92002
|
92002
92150-1553 BOLT,SOCKET,6X18Bolt,socket,6x18,black; |
92150-1553 |
from US $3.48 |
||
|
92002A
|
92002A
92002-1889 BOLTBolt,socket,6x18,white; |
92002-1889 |
from US $3.80 |
||
|
92009
|
92009
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009
|
92009
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009
|
92009
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92009A
|
92009A
92009-1301 SCREWScrew,5x16,black; |
92009-1301 |
US $3.92 |
||
| replacement | |||||
|
92009A
|
92009A
92009-1654 SCREWScrew,5x16,black; |
92009-1654 |
from US $2.53 |
||
|
92009B
|
92009B
92009-1453 SCREWScrew,5x20,black; |
92009-1453 |
US $2.97 |
||
| replacement | |||||
|
92009B
|
92009B
92009-1656 SCREWScrew,5x20,black; |
92009-1656 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1491 SCREW,5X20,WHITEScrew,5x20,white; |
92009-1491 |
from US $3.33 |
||
|
92015
|
92015
92015-1174 NUT,CAP,8MM,BLACKNut,cap,8mm,black; |
92015-1174 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1640
NUT,5MM
Nut,well,5mm; |
92015-1640 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92015-1757 NUT,5MMNut,well,5mm; |
92015-1757 |
from US $4.25 |
||
|
92015B
|
92015B
92015-1710 NUTNut,5mm; |
92015-1710 |
from US $3.48 |
||
|
92022
|
92022
92022-1521 WASHER,NYLON,5.3X11.5Washer,nylon,5.3x11.5x1.5; |
92022-1521 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1654 WASHER,6.5X16X1.0Washer,6.5x16x1.0; |
92022-1654 |
from US $3.20 |
||
|
92027
|
92027
92027-1886 COLLAR,FRONT COWLINGCollar,l=6.5,white; |
92027-1886 |
from US $10.77 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1634 DAMPER |
92075-1634 |
from US $3.73 |
||
|
92075A
|
92075A
92075-1929
DAMPER,MIRROR
Damper,mirror; |
92075-1929 |
— | ||
|
92075B
|
92075B
92075-1936 DAMPER |
92075-1936 |
from US $2.95 |
||
|
92143
|
92143
92143-1086
COLLAR
Collar,l=6.5,black; |
92143-1086 |
— | ||
|
92143A
|
92143A
92143-1100 COLLAR,L=19.6Collar,l=19.6; |
92143-1100 |
from US $4.82 |
||
|
92143B
|
92143B
92143-1226 COLLARCollar,black; |
92143-1226 |
from US $9.75 |
||
|
92143C
|
92143C
92143-1273 COLLAR,WHITECollar,white; |
92143-1273 |
from US $11.09 |
||
|
92150
|
92150
92002-1945 BOLT,SOCKET,6X30,BLACBolt,socket,6x30,black; |
92002-1945 |
US $2.84 |
||
| replacement | |||||
|
92150
|
92150
92150-1554 BOLT,SOCKET,6X30,BLACBolt,socket,6x30,black; |
92150-1554 |
from US $3.17 |
||
|
92150A
|
92150A
92002-1998 BOLT,SOCKET,6X30,WHITBolt,socket,6x30,white; |
92002-1998 |
US $3.37 |
||
|
130
|
130
130C0812
BOLT-FLANGED
Bolt-flanged,8x12,black; |
130C0812 |
— | ||
| replacements | |||||
|
130
|
130
130BB0812 BOLT-FLANGEDBolt-flanged,8x12,black; |
130BB0812 |
from US $1.05 |
||
|
130
|
130
130AB0812 BOLT-FLANGEDBolt-flanged,8x12,black; |
130AB0812 |
from US $1.11 |
||
|
221
|
221
221C0630
SCREW-CSK-CROS,6X30
Screw-csk-cros,6x30; |
221C0630 |
— | ||
| replacement | |||||
|
221
|
221
221AB0630 SCREW-CSK-CROSSScrew-csk-cros,6x30; |
221AB0630 |
from US $0.95 |
||
