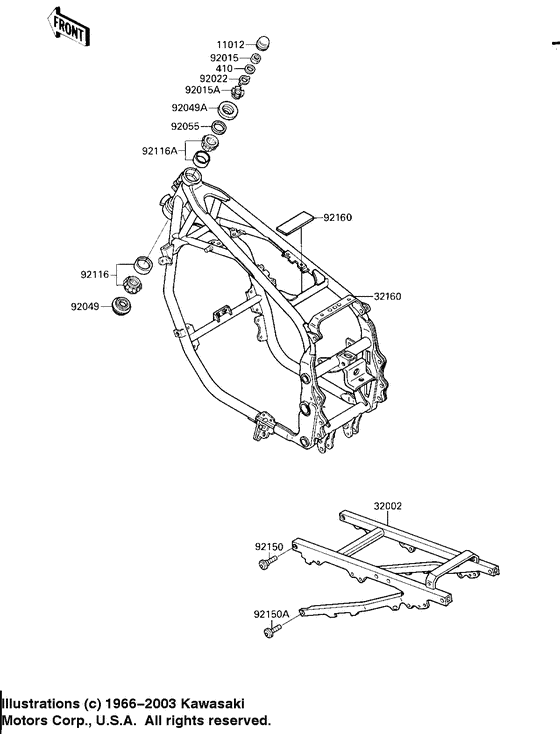

Frame Diagram Kawasaki ZX600 Ninja 600R
- Year
- 1988
- Model code
- ZX600-C1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1442 CAP,STEERING STEMCap,steering stem; |
11012-1442 |
from US $4.46 |
||
|
32002
|
32002
32002-1938 FRAME-COMP,RRFrame-comp,al,rr; |
32002-1938 |
US $981.32 |
||
|
32160
|
32160
32160-1005 FRAME-COMP,FRFrame-comp,fr; |
32160-1005 |
US $1,564.49 |
||
|
92015
|
92015
92015-1404 NUT,18MMNut,18mm; |
92015-1404 |
from US $15.52 |
||
|
92015A
|
92015A
92015-1546 NUTNut,25mm,t=12; |
92015-1546 |
from US $12.99 |
||
|
92022
|
92022
92022-1555
WASHER
Washer,claw,18.5x30x2.3; |
92022-1555 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-1357 WASHERWasher,claw,18.5x30x2.3; |
92200-1357 |
from US $3.96 |
||
|
92049
|
92049
92049-1162 SEAL-OIL,XMHE36X52X4JSeal-oil,xmhe36x52x4j; |
92049-1162 |
from US $7.13 |
||
|
92049A
|
92049A
92049-1214 SEAL-OIL,STEERING STESeal-oil,steering stem; |
92049-1214 |
from US $12.74 |
||
|
92055
|
92055
92055-1160 RING-0.24.7MMRing-o,24.7mm; |
92055-1160 |
from US $2.85 |
||
|
92116
|
92116
92116-1009 BRG,ROLLER,HR320/28XJBearing-roller,hr320/28xj; |
92116-1009 |
from US $20.91 |
||
|
92116A
|
92116A
92116-1056 BEARING-ROLLERBearing-roller,hi-cap32005jr-1; |
92116-1056 |
from US $24.38 |
||
|
92150
|
92150
92002-1927 BOLT,SOCKET,8X32Bolt,socket,8x32; |
92002-1927 |
US $4.30 |
||
|
92150A
|
92150A
92150-1928
BOLT
Bolt,socket,6x92; |
92150-1928 |
— | ||
|
92160
|
92160
92160-1075 DAMPER |
92160-1075 |
from US $3.96 |
||
|
410
|
410
410F1800
W-PLAIN-S
|
410F1800 |
— | ||
| replacement | |||||
|
410
|
410
410AB1800 W-PLAIN-S |
410AB1800 |
from US $1.09 |
||
