Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
14024	14024 14024-1438 COVER,METER HOUSING Cover,meter housing;	14024-1438	US $78.43
23008	23008 23008-1335 SOCKET-ASSY,METER Socket-assy,meter;	23008-1335	US $102.78
25001	25001 25001-1685 METER-ASSY,MPH Meter-assy,mph;	25001-1685	US $1,240.09
25001A	25001A 25001-1686 Meter-assy Meter-assy,kph;	25001-1686	—
25005	25005 25005-1354 SPEEDOMETER,MPH Speedometer,mph;	25005-1354	US $219.11
25005A	25005A 25005-1355 Speedometer,kph Speedometer,kph;	25005-1355	—
	replacement
25005A	25005A 25005-1343 Speedometer,kph Speedometer,kph;	25005-1343	—
25008	25008 25008-1138 BRACKET-METER	25008-1138	from US $57.89
25015	25015 25015-1269 TACHOMETER,X1000R/MIN Tachometer,x1000r/min;	25015-1269	US $303.03
25023	25023 25023-1154 Cover-meter case,upp Cover-meter case,upp;	25023-1154	US $158.11
28011	28011 28011-1092 METER,FUEL Meter,fuel;	28011-1092	from US $95.22
28011A	28011A 28011-1098 METER,TEMP Meter,temp;	28011-1098	US $84.74
52014	52014 52014-1006 ELBOW,SPEEDOMETER GEA Elbow,speedometer gear;	52014-1006	from US $62.96
92009	92009 92009-1163 SCREW,TAPPING,4X16 Screw,tapping,4x16;	92009-1163	from US $2.69
92022	92022 92022-263 WASHER,PLAIN,6MM Washer,5.2x16x1.2;	92022-263	from US $2.19
92069	92069 92069-1007 BULB,12V3.4W Bulb,12v 3.4w;	92069-1007	from US $3.33
92075	92075 92075-1805 DAMPER	92075-1805	from US $4.37
92077	92077 92077-1061 BOOT,TRIP RESET KNOB Boot,trip reset knob;	92077-1061	from US $6.49
130	130 130C0614 BOLT-FLANGED,6X14 Bolt-flanged,6x14;	130C0614	—
	replacement
130	130 130BB0614 BOLT-FLANGED,6X14 Bolt-flanged,6x14;	130BB0614	from US $1.11
311	311 311B0500 NUT-HEX,5MM	311B0500	—
	replacement
311	311 311AA0500 NUT-HEX,5MM	311AA0500	from US $0.78

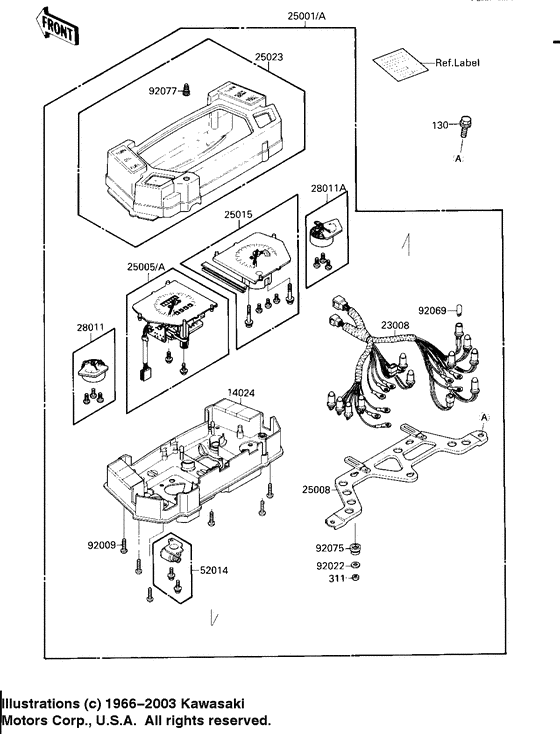

Meter Diagram Kawasaki ZX600 Ninja 600R USA 10420103-683994

Meter Diagram Kawasaki ZX600 Ninja 600R USA 10420103-683994
