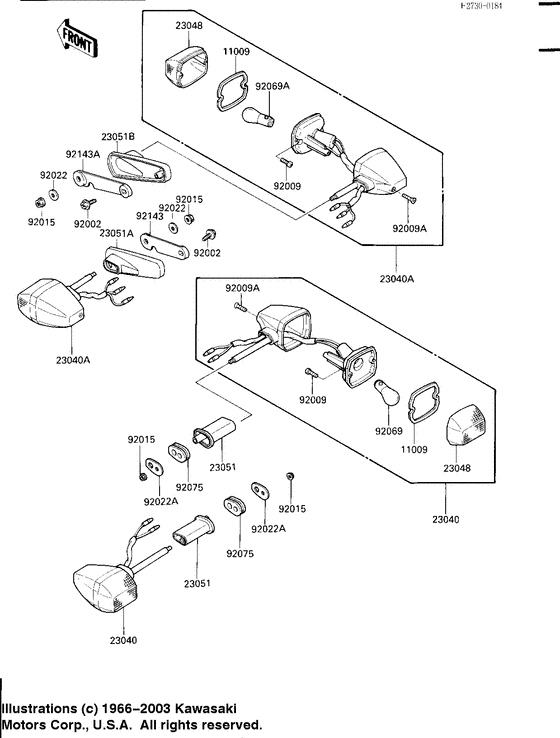

Turn signals Diagram Kawasaki ZX600 Ninja 600R
- Year
- 1988
- Model code
- ZX600-C1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja 600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1402 GASKET,SIGNAL LAMPGasket,signal lamp; |
11009-1402 |
from US $4.12 |
||
|
23040
|
23040
23040-1108 LAMP-SIGNAL,RRLamp-signal,rr; |
23040-1108 |
from US $46.66 |
||
|
23040A
|
23040A
23040-1157
LAMP-SIGNAL,FR
Lamp-signal,fr; |
23040-1157 |
— | ||
|
23048
|
23048
23048-1054 LENS-SIGNAL LAMP |
23048-1054 |
from US $10.90 |
||
|
23051
|
23051
23051-1165 BRACKET-SIGNAL LAMP,R |
23051-1165 |
US $12.47 |
||
| replacement | |||||
|
23051
|
23051
23051-1252 BRACKET-SIGNAL LAMP |
23051-1252 |
from US $17.58 |
||
|
23051A
|
23051A
23051-1185 BRACKET-SIGNAL LAMP,FBracket-signal lamp,fr,lh; |
23051-1185 |
US $9.54 |
||
|
23051B
|
23051B
23051-1186 BRACKET-SIGNAL LAMP,FBracket-signal lamp,fr,rh; |
23051-1186 |
US $9.54 |
||
|
92002
|
92002
92002-1921 BOLTBolt,tapping,5x16; |
92002-1921 |
US $2.59 |
||
|
92009
|
92009
92009-1115 SCREW,TAPPING,3X16Screw,tapping,3x16; |
92009-1115 |
from US $2.28 |
||
|
92009A
|
92009A
92009-1304 SCREW,4X20Screw,tapping,4x20; |
92009-1304 |
from US $3.33 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer,6.5x20x1.6; |
92200-0283 |
from US $0.72 |
||
|
92022A
|
92022A
92022-1672 WASHER,SIGNAL LAMPWasher,signal lamp; |
92022-1672 |
from US $3.64 |
||
|
92069
|
92069
92069-055 BULB 12V 32CPBulb,12v 32cp(23w); |
92069-055 |
from US $4.09 |
||
|
92069A
|
92069A
92069-060 BULB,12V 23/8WBulb,12v 32/3cp(23/8w); |
92069-060 |
from US $6.65 |
||
|
92075
|
92075
92075-1698 DAMPER,SIGNAL LAMPDamper,signal lamp; |
92075-1698 |
from US $6.65 |
||
|
92143
|
92143
92143-1099 COLLAR,SIGNAL LAMP,FRCollar,signal lamp,fr,lh; |
92143-1099 |
US $3.71 |
||
|
92143A
|
92143A
92143-1102 COLLAR,SIGNAL LAMP,FRCollar,signal lamp,fr,rh; |
92143-1102 |
US $3.71 |
||
