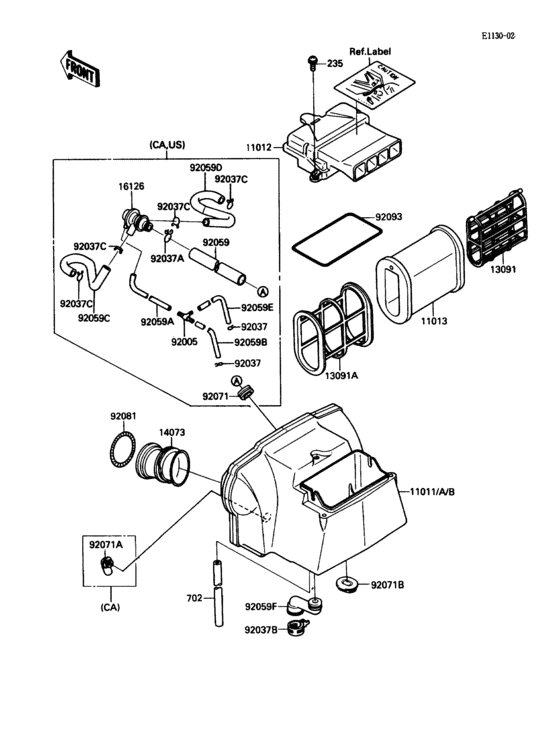

Air cleaner(1/2) Diagram Kawasaki ZX600 GPX600R
- Year
- 1988
- Colour
- Candy Persimmon Red / Metallic Graystone (CF)
- Model code
- ZX600-C1
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
|
702
|
702
702A05100 TUBE-RUBBER |
702A05100 |
US $3.47 |
||
|
11011B
|
11011B
11011-1256 CASE-AIR FILTER |
11011-1256 |
US $152.12 |
||
|
11012
|
11012
11012-1619
CAP,AIR FILTER
|
11012-1619 |
— | ||
|
11013
|
11013
11013-1154 Element-air filter |
11013-1154 |
from US $32.95 |
||
|
13091
|
13091
13091-1467 HOLDER,ELEMENT |
13091-1467 |
from US $15.05 |
||
|
13091A
|
13091A
13091-1468 HOLDER,ELEMENT |
13091-1468 |
from US $14.34 |
||
|
14073
|
14073
14073-1211 DUCT,CARBURETOR |
14073-1211 |
from US $23.94 |
||
|
16126
|
16126
16126-1005
VALVE ASSY,AIR SWITCH
|
16126-1005 |
— | ||
|
92005
|
92005
92005-1017 FITTING,TUBE |
92005-1017 |
from US $7.44 |
||
|
92037
|
92037
92037-072 CLAMP-PIPE |
92037-072 |
from US $4.28 |
||
|
92037A
|
92037A
92037-1076 CLAMP |
92037-1076 |
from US $4.28 |
||
|
92037B
|
92037B
92037-1730 CLAMP |
92037-1730 |
from US $5.39 |
||
|
92037C
|
92037C
92037-213 CLAMP,BREATHER TUBE |
92037-213 |
from US $2.85 |
||
|
92059
|
92059
92059-1031 TUBE,19X25X260 |
92059-1031 |
US $14.76 |
||
|
92059A
|
92059A
92059-1040 TUBE |
92059-1040 |
US $8.75 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1846 TUBE (4x9x650) |
92059-1846 |
from US $6.06 |
||
|
92059B
|
92059B
92059-1365
TUBE
|
92059-1365 |
— | ||
| replacement | |||||
|
92059B
|
92059B
92190-1062 TUBE (L=380mm) |
92190-1062 |
from US $8.87 |
||
|
92059C
|
92059C
92059-1674 TUBE,AIR SWITCH VALVE |
92059-1674 |
US $20.23 |
||
|
92059D
|
92059D
92059-1675 TUBE,AIR SWITCH VALVE |
92059-1675 |
US $20.23 |
||
|
92059E
|
92059E
92059-1712 TUBE,4X9X935,WHITE |
92059-1712 |
US $16.70 |
||
| replacement | |||||
|
92059E
|
92059E
92059-1916 TUBE,4X9X935,WHITE STRIPE |
92059-1916 |
from US $11.98 |
||
|
92059F
|
92059F
92059-1798 TUBE,BREATHER |
92059-1798 |
US $14.99 |
||
|
92071
|
92071
92071-1013 GROMMET,AIR CLEANER |
92071-1013 |
from US $3.80 |
||
|
92071A
|
92071A
92071-1114 GROMMET,AIR FILTER |
92071-1114 |
from US $13.54 |
||
|
92071B
|
92071B
92071-1123 GROMMET,AIR FILTER |
92071-1123 |
from US $3.96 |
||
|
92081
|
92081
92081-1422
SPRING,AIR FILTER DUC
|
92081-1422 |
— | ||
| replacement | |||||
|
92081
|
92081
92144-1771 SPRING,AIR FILTER DUC |
92144-1771 |
from US $10.63 |
||
|
92093
|
92093
92093-1212
SEAL,AIR FILTER CAP
|
92093-1212 |
— | ||
