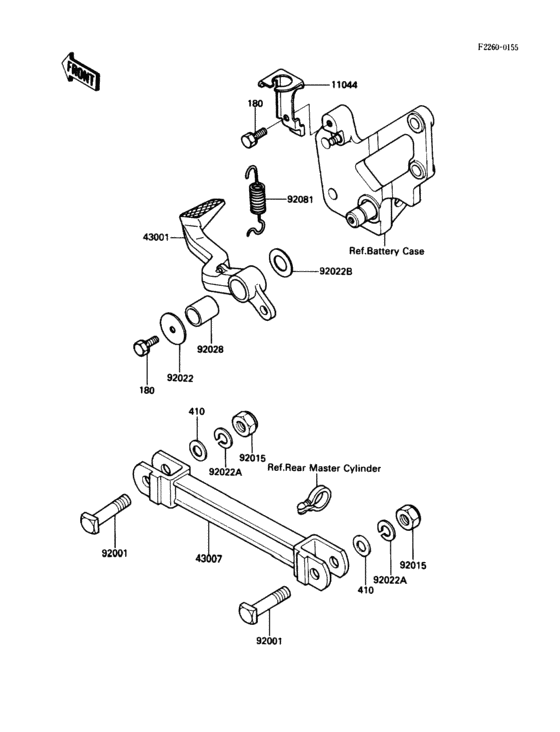

Brake pedal/torque link Diagram Kawasaki ZX600 GPX600R
- Year
- 1988
- Colour
- Candy Persimmon Red / Metallic Graystone (CF)
- Model code
- ZX600-C1
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0614
BOLT-UPSET-WS
|
180B0614 |
— | ||
| replacement | |||||
|
180
|
180
180AA0614 BOLT-UPSET-WS |
180AA0614 |
from US $1.09 |
||
|
410
|
410
410B1000
W-PLAIN-S
|
410B1000 |
— | ||
| replacement | |||||
|
410
|
410
410AA1000 W-PLAIN-S |
410AA1000 |
from US $0.81 |
||
|
11044
|
11044
11044-1107 BRACKET,RR BRAKE SWIT |
11044-1107 |
from US $7.29 |
||
|
43001
|
43001
43001-1224 LEVER-BRAKE,PEDAL |
43001-1224 |
from US $85.42 |
||
|
43007
|
43007
43007-1133 ROD-TORQUE |
43007-1133 |
US $71.14 |
||
|
92001
|
92001
92001-1307
BOLT,10X37
|
92001-1307 |
— | ||
| replacement | |||||
|
92001
|
92001
92150-1901 BOLT,10X37 |
92150-1901 |
from US $4.12 |
||
|
92015
|
92015
92019-021
Nut,lock,10m/m
|
92019-021 |
— | ||
| replacements | |||||
|
92015
|
92015
92210-1184 NUT |
92210-1184 |
from US $4.09 |
||
|
92015
|
92015
92015-1962 NUT |
92015-1962 |
from US $3.33 |
||
|
92022
|
92022
92022-1282 WASHER,7X28X1.6 |
92022-1282 |
from US $3.54 |
||
|
92022A
|
92022A
92022-1540 WASHER,SPRING,10MM |
92022-1540 |
from US $2.85 |
||
|
92022B
|
92022B
92022-326 WASHER,PLAIN |
92022-326 |
from US $3.20 |
||
|
92028
|
92028
92028-1282 BUSHING,BRAKE PEDAL |
92028-1282 |
from US $10.97 |
||
|
92081
|
92081
92081-1833 SPRING,BRAKE PEDAL |
92081-1833 |
from US $6.81 |
||
