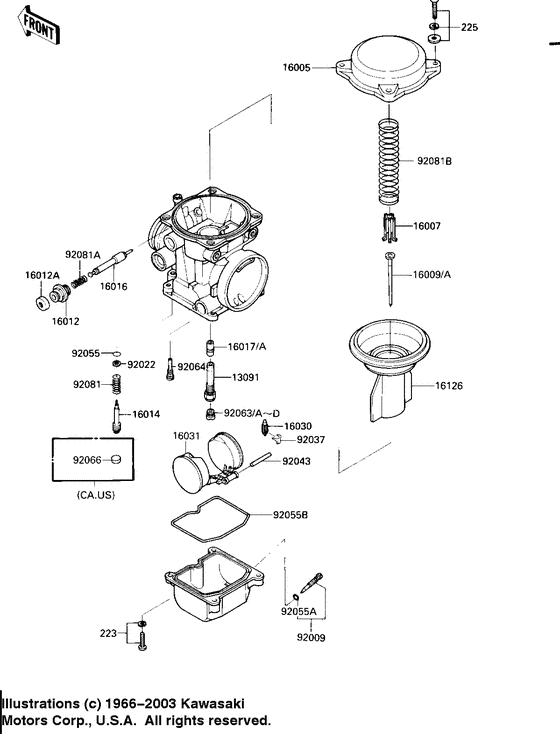

Carburetor parts Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- USA
- Engine Capacity
- 600
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
13091-1406 HOLDER,NEEDLE JETHolder,needle jet; |
13091-1406 |
from US $22.14 |
||
|
16005
|
16005
16005-1056 TOP-CHAMBERTop-chamber,mixing; |
16005-1056 |
from US $47.87 |
||
|
16007
|
16007
16007-1120 SEAT-SPRINGSeat-spring,throttle valve; |
16007-1120 |
from US $19.48 |
||
|
16009
|
16009
16009-1354 NEEDLE-JET,N52QNeedle-jet,n52q; |
16009-1354 |
US $24.32 |
||
|
16009A
|
16009A
16009-1355 NEEDLE-JET,N52RNeedle-jet,n52r; |
16009-1355 |
US $24.32 |
||
|
16012
|
16012
16012-1051 CAP-STARTER PLUNGER |
16012-1051 |
from US $8.40 |
||
|
16012A
|
16012A
16012-1052 CAP-STARTER PLUNGER |
16012-1052 |
from US $11.40 |
||
|
16014
|
16014
16014-1054 SCREW-PILOT AIR |
16014-1054 |
from US $18.53 |
||
|
16016
|
16016
16016-1061 PLUNGER,STARTERPlunger,starter; |
16016-1061 |
from US $30.97 |
||
|
16017
|
16017
16017-1285
Jet-needle
|
16017-1285 |
— | ||
| replacement | |||||
|
16017
|
16017
16017-1270 JET-NEEDLE |
16017-1270 |
from US $35.46 |
||
|
16017A
|
16017A
16017-1286 JET-NEEDLEJet-needle,01d34; |
16017-1286 |
from US $31.10 |
||
|
16030
|
16030
16030-1007 FLOAT VALVE |
16030-1007 |
from US $41.28 |
||
|
16031
|
16031
16031-1056 FLOAT |
16031-1056 |
from US $36.20 |
||
|
16126
|
16126
16126-1160 VALVE,VACUUMValve,vacuum; |
16126-1160 |
from US $163.06 |
||
|
92009
|
92009
92009-1095 SCREW,DRAIN,M6X1.0Screw,drain,m6x1.0; |
92009-1095 |
from US $9.35 |
||
|
92022
|
92022
92022-1003 WASHER,PLAINWasher,plain; |
92022-1003 |
from US $2.69 |
||
|
92037
|
92037
16044-007 CLIP,FLOAT VALVEClamp,float valve; |
16044-007 |
from US $6.18 |
||
|
92043
|
92043
92043-1207
PIN,FLOAT
Pin,float; |
92043-1207 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-1148 PIN,FLOATPin,float; |
92043-1148 |
from US $4.20 |
||
|
92055
|
92055
92055-1002 O RING,PILOT ADJRing-o,pilot adjust; |
92055-1002 |
from US $2.69 |
||
|
92055A
|
92055A
92055-1053 O RING,DRAIN SCREWRing-o,drain screw; |
92055-1053 |
from US $3.54 |
||
|
92055B
|
92055B
92055-1222 RING-O,FLOAT CHAMBERRing-o,float chamber; |
92055-1222 |
from US $11.40 |
||
|
92063
|
92063
92063-1008 MAIN JET,#100Jet-main,2nd,#100; (racing use only) |
92063-1008 |
from US $9.82 |
||
|
92063A
|
92063A
92063-1009 MAIN JET,#105Jet-main,2nd,#105; |
92063-1009 |
from US $10.30 |
||
|
92063B
|
92063B
92063-1114 JET-MAIN #110Jet-main,#110; (racing use only) |
92063-1114 |
from US $9.82 |
||
|
92063C
|
92063C
92063-1115 JET-MAIN,#102Jet-main,#102; (racing use only) |
92063-1115 |
from US $9.82 |
||
|
92063D
|
92063D
92063-1116 JET-MAIN #108Jet-main,#108; (racing use only) |
92063-1116 |
from US $9.82 |
||
|
92064
|
92064
92064-1035 PILOT JET,#35Jet-pilot,#35; |
92064-1035 |
from US $12.51 |
||
|
92066
|
92066
92066-1051 PLUG,PILOT SCREWPlug,pilot air screw,6.9x2; |
92066-1051 |
from US $3.17 |
||
|
92081
|
92081
92081-1002 SPRING,PIROT ADJ SCRWSpring,pilot adjust screw; |
92081-1002 |
from US $3.33 |
||
|
92081A
|
92081A
92081-1761 SPRING,STARTER PLUNGESpring,starter plunger; |
92081-1761 |
from US $6.49 |
||
|
92081B
|
92081B
92081-1775 SPRING,VACUUM VALVESpring,vacuum valve; |
92081-1775 |
US $20.38 |
||
| replacement | |||||
|
92081B
|
92081B
92081-1912 SPRING,VACUUM VALVESpring,vacuum valve; |
92081-1912 |
from US $17.27 |
||
|
223
|
223
223C0416
SCREW-PAN-WS-CROS
|
223C0416 |
— | ||
| replacement | |||||
|
223
|
223
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
|
225
|
225
225C0418
SCREW-PAN-WSP-CROS
|
225C0418 |
— | ||
| replacement | |||||
|
225
|
225
225AB0418 SCREW-PAN-WSP-CROS |
225AB0418 |
from US $0.95 |
||
