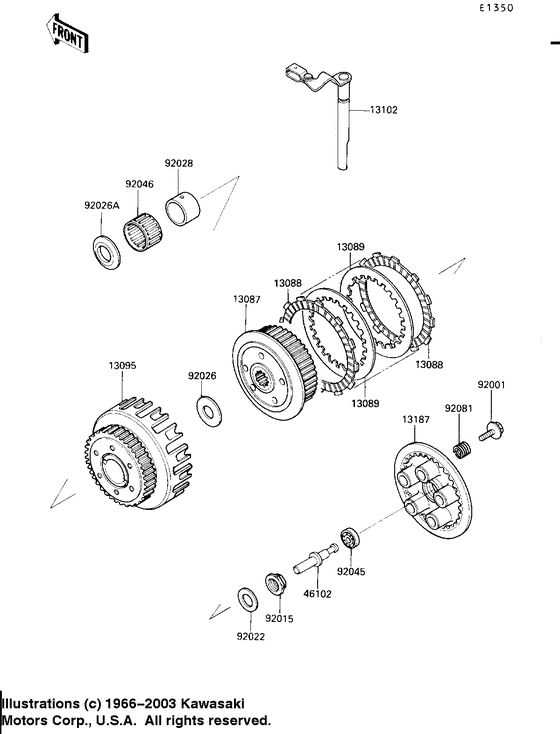

Clutch Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- USA
- Engine Capacity
- 600
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13087
|
13087
13087-1052
Hub-clutch
|
13087-1052 |
— | ||
| replacement | |||||
|
13087
|
13087
13087-1162 Hub-clutch |
13087-1162 |
from US $97.84 |
||
|
13088
|
13088
13088-040 PLATE,CLUTCH FRICTION |
13088-040 |
from US $12.94 |
||
|
13089
|
13089
13089026 PLATE,CLUTCH STEELPlate-clutch,t=2.0; |
13089026 |
from US $12.36 |
||
|
13095
|
13095
13095-1128 HOUSING-COMP-CLUTCH |
13095-1128 |
US $453.82 |
||
|
13102
|
13102
13102-1089 RELEASE-COMP-CLUTCH |
13102-1089 |
from US $43.56 |
||
|
13187
|
13187
13187-1012
PLATE-CLUTCH OPERATIN
|
13187-1012 |
— | ||
| replacement | |||||
|
13187
|
13187
13187-1087 PLATE-CLUTCH OPERATIN |
13187-1087 |
from US $56.70 |
||
|
46102
|
46102
46102-1030 RODRod,clutch; |
46102-1030 |
from US $21.07 |
||
|
92001
|
92001
92001-1066 BOLT,CLUTCH SPR FITTBolt,flanged,6x18; |
92001-1066 |
from US $4.25 |
||
|
92015
|
92015
92015-1555 NUT,20MMNut,20mm; |
92015-1555 |
from US $9.56 |
||
|
92022
|
92022
92022-1116 WASHER,PLAIN,2.3X20.3Washer,20.3x36x2.3; |
92022-1116 |
from US $5.39 |
||
|
92026
|
92026
92026-022 WASHER TH 25.5X47X2.5Spacer,25.5x47x2.5; |
92026-022 |
from US $7.98 |
||
|
92026A
|
92026A
92026-116 SPACER,THRUST,T=5.5MMSpacer,thrust,t=5.5; |
92026-116 |
from US $11.09 |
||
|
92028
|
92028
92028-178 BUSHING,CLUTCHBushing,25x32x23.6; |
92028-178 |
from US $18.95 |
||
|
92045
|
92045
92045-1235 BEARING-BALL (12X28X8)Bearing-ball,6001c3ml01; |
92045-1235 |
from US $16.42 |
||
|
92046
|
92046
92046-028 BEARING,KTV323723Bearing-needle,ktv323723; |
92046-028 |
from US $19.17 |
||
|
92081
|
92081
92081-139 SPRING,CLUTCHSpring,clutch; |
92081-139 |
from US $5.54 |
||
