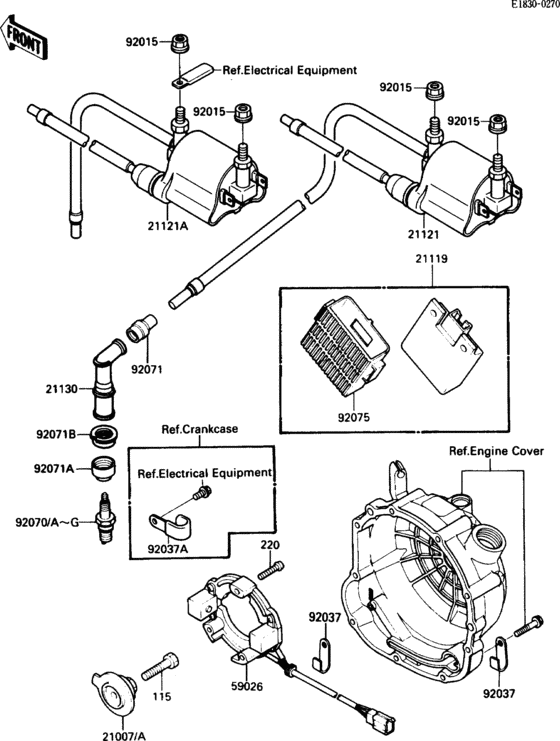

Ignition system(1/2) Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4C1 KB502001 - 999999
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115BA0835 BOLT,SMALL UPSET |
115BA0835 |
from US $1.09 |
||
|
220
|
220
220AA0525 SCREW-PAN-CROS,5X25 |
220AA0525 |
from US $1.25 |
||
|
21007A
|
21007A
21007-1159 ROTOR |
21007-1159 |
US $35.93 |
||
|
21119
|
21119
21119-1167
IGNITER
|
21119-1167 |
— | ||
|
21121
|
21121
21121-1157 COIL-IGNITION,#1 |
21121-1157 |
US $145.08 |
||
|
21121A
|
21121A
21121-1158 COIL-IGNITION,#2 |
21121-1158 |
US $145.08 |
||
|
21130
|
21130
21130-1068 Cap-spark plug |
21130-1068 |
from US $28.57 |
||
|
59026
|
59026
59026-1078 COIL-PULSING |
59026-1078 |
US $103.97 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92037
|
92037
21126008 CLAMP,WIRING HARNESS |
21126008 |
from US $3.33 |
||
|
92037A
|
92037A
92037-1539 CLAMP,WIRING HARNESS |
92037-1539 |
from US $3.17 |
||
|
92070B
|
92070B
92022-244 WASHER,SPARK ADVANCER |
92022-244 |
from US $7.46 |
||
|
92070G
|
92070G
23007-1052
Lens-comp,"001-2723"m
|
23007-1052 |
— | ||
|
92071
|
92071
21131005 GROMMET,HIGH TENSION |
21131005 |
from US $4.59 |
||
|
92071A
|
92071A
92071-1124 GROMMET,PLUG CAP |
92071-1124 |
from US $6.34 |
||
|
92071B
|
92071B
92071-1144 GROMMET |
92071-1144 |
from US $6.34 |
||
|
92075
|
92075
92075-1504 DAMPER,IGNITER |
92075-1504 |
US $23.94 |
