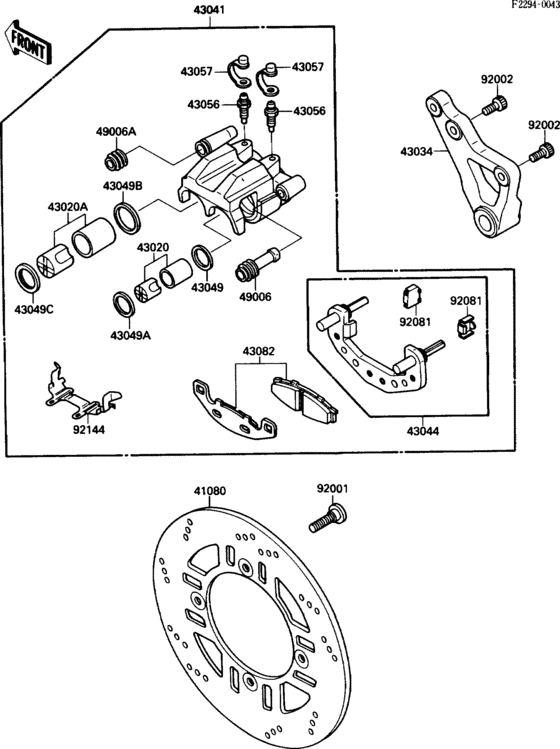

Rear brake Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4C1 KB502001 - 999999
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-0131-CM DISC,RR,SILVER |
41080-0131-CM |
from US $247.28 |
||
|
43020
|
43020
43020-1068 PISTON-COMP-BRAKE |
43020-1068 |
from US $49.97 |
||
|
43020A
|
43020A
43020-1069 PISTON-COMP-BRAKE |
43020-1069 |
from US $49.97 |
||
|
43034
|
43034
43034-1079 Holder-brake,rear cal |
43034-1079 |
US $141.50 |
||
|
43041
|
43041
43041-1934-DJ CALIPER-ASSY,RR,BLACK |
43041-1934-DJ |
from US $455.93 |
||
|
43044
|
43044
43044-1067 HOLDER-COMP-CALIPER,R |
43044-1067 |
from US $128.06 |
||
|
43049
|
43049
43049-1096 PACKING,PISTON SEALPacking, piston seal |
43049-1096 |
from US $9.56 |
||
|
43049A
|
43049A
43049-1055 PACKING,PISTON |
43049-1055 |
from US $9.56 |
||
|
43049B
|
43049B
43049-1095 PACKING,PISTON SEALPacking, piston seal |
43049-1095 |
from US $10.63 |
||
|
43049C
|
43049C
43049-1057 PACKING,PISTON |
43049-1057 |
from US $11.68 |
||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1077 PAD-ASSY-BRAKE |
43082-1077 |
from US $50.13 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPER |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPER |
49006-1095 |
from US $4.91 |
||
|
92001
|
92001
92150-1771 BOLT,SOCKET,8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92001
|
92001
92154-1865 BOLT,SOCKET,8X30 |
92154-1865 |
from US $2.85 |
||
|
92002
|
92002
92002-1713 BOLT,SOCKET,10X17 |
92002-1713 |
from US $3.96 |
||
|
92081
|
92081
92081-1661 SPRING,PAD STOPPER |
92081-1661 |
from US $8.24 |
||
|
92144
|
92144
92144-1070 SPRING,PAD |
92144-1070 |
from US $19.48 |
||
