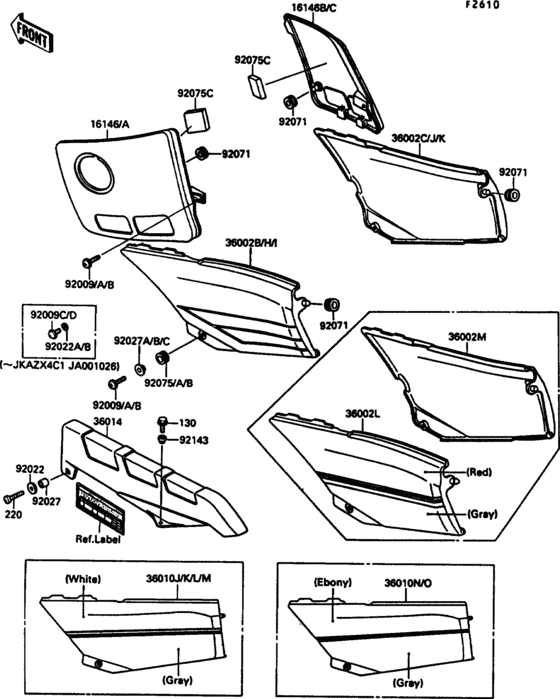

Side covers/chain cover(1/3) Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4C1 KB502001 - 999999
- Model
- GPX600R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
220
|
220
220AB0630 SCREW-PAN-CROSS |
220AB0630 |
from US $1.11 |
||
|
16146
|
16146
16146-1079-MA
COVER-ASSY,KNEEGRIP,L
|
16146-1079-MA |
— | ||
|
16146B
|
16146B
16146-1080-MA
COVER-ASSY,KNEEGRIP,R
|
16146-1080-MA |
— | ||
|
36010N
|
36010N
36010-5107-T4 COVER-SIDE,LH,EBONY/G |
36010-5107-T4 |
US $201.44 |
||
|
36010O
|
36010O
36010-5108-T4 COVER-SIDE,RH,EBONY/G |
36010-5108-T4 |
US $214.56 |
||
|
36014
|
36014
36014-1145
CASE-CHAIN
|
36014-1145 |
— | ||
|
92009
|
92009
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92027
|
92027
92027-169 COLLAR |
92027-169 |
from US $3.60 |
||
|
92027A
|
92027A
92027-1935 COLLAR |
92027-1935 |
from US $3.94 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1634 DAMPER |
92075-1634 |
from US $3.73 |
||
|
92075C
|
92075C
92075-1979
DAMPER,50X50X10
|
92075-1979 |
— | ||
|
92143
|
92143
92143-1088 COLLAR |
92143-1088 |
from US $3.64 |
