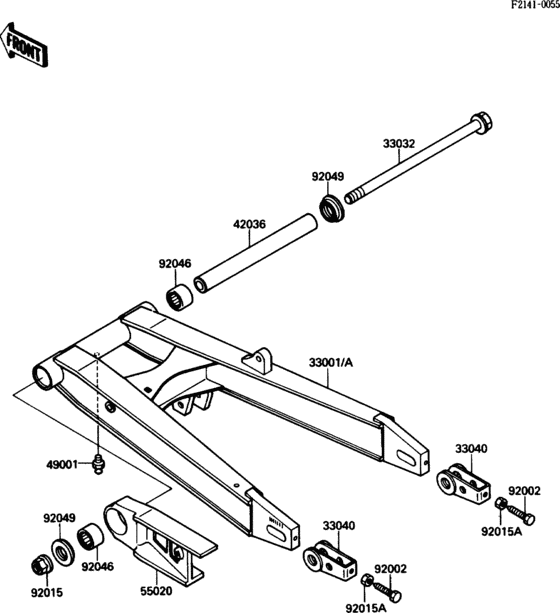

Swingarm Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4C1 KB502001 - 999999
- Model
- GPX600R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33001
|
33001
33001-1288-CE ARM-COMP-SWING,SILVER |
33001-1288-CE |
US $749.03 |
||
|
33032
|
33032
33032-1136 SHAFT-SWING ARM |
33032-1136 |
US $49.07 |
||
|
33040
|
33040
33040-1063 ADJUSTER-CHAIN |
33040-1063 |
US $24.28 |
||
|
42036
|
42036
42036-1220 SLEEVE,17.1X25X230 |
42036-1220 |
from US $42.94 |
||
|
49001
|
49001
49001-0001 NIPPLE-GREASE |
49001-0001 |
from US $2.06 |
||
|
55020
|
55020
55020-1267
GUARD,CHAIN
|
55020-1267 |
— | ||
|
92002
|
92002
92002-1076 BOLT,8X50 |
92002-1076 |
from US $6.34 |
||
|
92015
|
92015
92015-1946 NUT |
92015-1946 |
from US $7.76 |
||
|
92015A
|
92015A
92015-1364 NUT,8MM |
92015-1364 |
from US $2.53 |
||
|
92046
|
92046
92046-1035 BEARING-NEEDLE |
92046-1035 |
from US $23.64 |
||
|
92049
|
92049
92049-1166 SEAL-OIL |
92049-1166 |
from US $7.29 |
