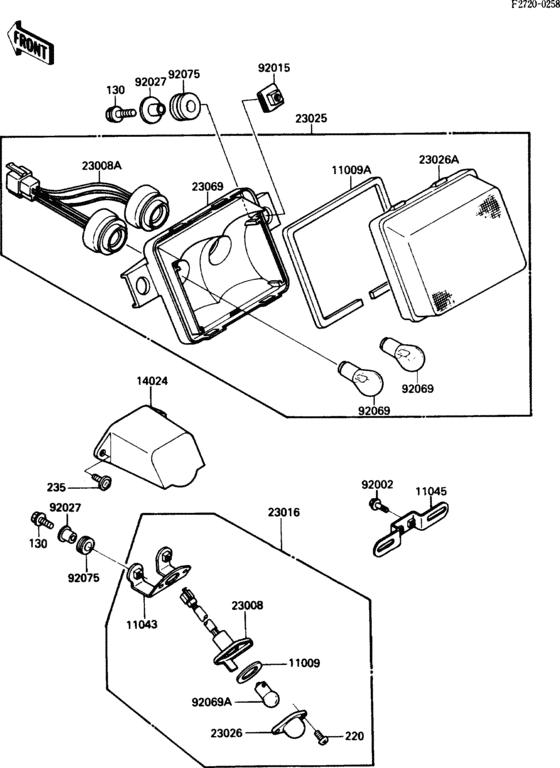

Taillight(s) Diagram Kawasaki ZX600 GPX600R
- Year
- 1989
- Model code
- ZX600-C2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4C1 KB502001 - 999999
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0625 BOLT-FLANGED,6X25 |
130BA0625 |
from US $0.79 |
||
|
220
|
220
220AA0410 SCREW-PAN CROS,4X10 |
220AA0410 |
from US $0.79 |
||
|
235
|
235
235AB0616 SCREW-PAN-WP-CROS |
235AB0616 |
from US $1.24 |
||
|
11009
|
11009
11009-1372 GASKET,LICENSE PLATE |
11009-1372 |
from US $3.33 |
||
|
11009A
|
11009A
11009-1662 GASKET,TAIL LAMP LENS |
11009-1662 |
US $5.36 |
||
|
11043
|
11043
11043-1497 BRACKET,LICENSE PLATE |
11043-1497 |
US $15.52 |
||
|
11045
|
11045
11045-1387 BRACKET,LICENSE LAMP |
11045-1387 |
from US $11.88 |
||
|
14024
|
14024
14025-1821 COVER,LICENSE PLATE L |
14025-1821 |
from US $13.94 |
||
|
23008
|
23008
23008-1221 SOCKET-ASSY,LICENSE P |
23008-1221 |
US $10.46 |
||
|
23008A
|
23008A
23008-1264 SOCKET-ASSY,TAIL LAMP |
23008-1264 |
US $33.51 |
||
|
23016
|
23016
23016-1054 LAMP-ASSY,LICENSE PLATE |
23016-1054 |
from US $51.31 |
||
|
23025
|
23025
23025-1166 LAMP-TAIL |
23025-1166 |
US $186.08 |
||
|
23026
|
23026
23026-1054 LENS,LICENSE PLATE LA |
23026-1054 |
from US $7.60 |
||
|
23026A
|
23026A
23026-1088 LENS,TAIL LAMP |
23026-1088 |
US $74.50 |
||
|
92002
|
92002
92002-1351 BOLT |
92002-1351 |
from US $2.69 |
||
|
92015
|
92015
92015-1094 NUT,MUFFLER |
92015-1094 |
from US $5.39 |
||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CP |
92069-059 |
from US $5.70 |
||
|
92069A
|
92069A
92069-1012 BULB,12V 4CP |
92069-1012 |
US $3.33 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
