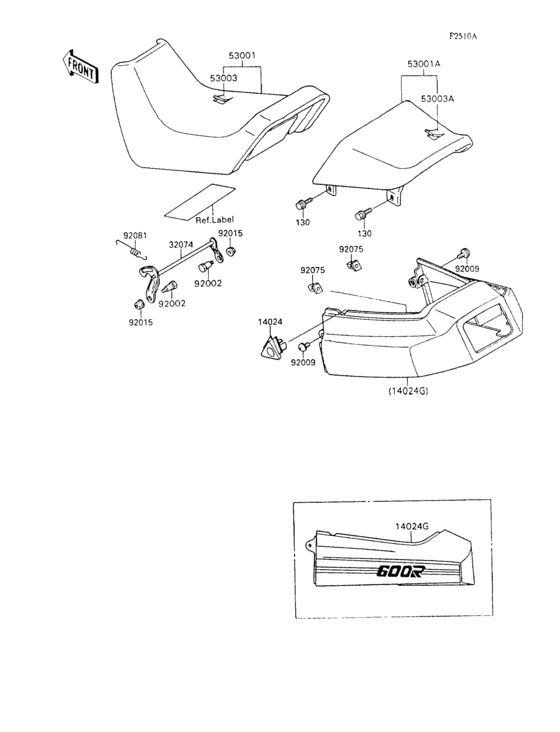

Seat Diagram Kawasaki ZX600 GPX600R
- Year
- 1993
- Colour
- Ebony (H8)
- Model code
- ZX600-C6
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- GPX600R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0614 BOLT |
130B0614 |
US $0.68 |
||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
14024
|
14024
14024-1456
COVER,SEAT LOCK
|
14024-1456 |
— | ||
|
14024G
|
14024G
14024-5217-H8
COVER,SEAT, EBONY
|
14024-5217-H8 |
— | ||
|
32074
|
32074
32074-1132
BRACKET-LOCK,SEAT
|
32074-1132 |
— | ||
|
53001
|
53001
53001-1503-MA SEAT-ASSY,FR,BLACK |
53001-1503-MA |
US $222.80 |
||
|
53001A
|
53001A
53001-1504-MA SEAT-ASSY,RR,BLACK |
53001-1504-MA |
US $233.95 |
||
|
53003
|
53003
53003-1181-MA LEATHER,FRONT SEAT,BL |
53003-1181-MA |
US $108.67 |
||
|
53003A
|
53003A
53003-1182-MA LEATHER,REAR SEAT,BLA |
53003-1182-MA |
US $71.21 |
||
|
92002
|
92002
92002-1932
BOLT,6MM
|
92002-1932 |
— | ||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.74 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92075
|
92075
92075-1931 DAMPER,SEAT COVER |
92075-1931 |
US $4.82 |
||
|
92081
|
92081
92081-1581 SPRING,SEAT LOCK |
92081-1581 |
US $7.76 |
||
