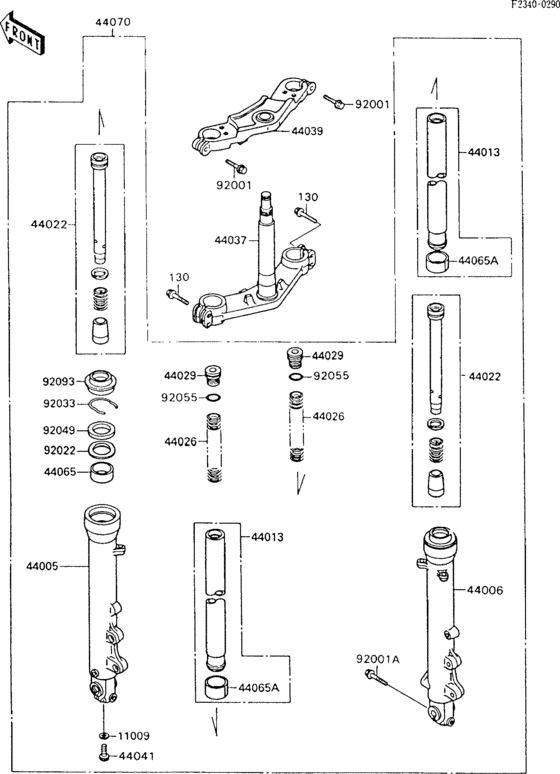

Front fork Diagram Kawasaki ZX600 GPX600R
- Year
- 1995
- Model code
- ZX600-C8
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Frame
- ZX600C 603001 - 604100
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0840 BOLT-FLANGED,8X40 |
130CA0840 |
from US $1.27 |
||
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
44005
|
44005
44005-1328 PIPE-LEFT FORK OUTER |
44005-1328 |
US $361.51 |
||
|
44006
|
44006
44006-1326 PIPE-RIGHT FORK OUTER |
44006-1326 |
US $361.51 |
||
|
44013
|
44013
44013-1393 PIPE-FORK INNER |
44013-1393 |
US $266.31 |
||
|
44022
|
44022
44022-1293 CYLINDER-FORK |
44022-1293 |
US $114.26 |
||
|
44026
|
44026
44026-1549 SPRING-FRONT FORK |
44026-1549 |
US $52.49 |
||
|
44029
|
44029
44029-1126 SEAT-FORK SPRING |
44029-1126 |
from US $28.04 |
||
|
44037
|
44037
44037-1213 Holder-fork under |
44037-1213 |
US $286.11 |
||
|
44039
|
44039
44039-1150 HOLDER-FORK UPPER |
44039-1150 |
US $220.45 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44065
|
44065
44065-1091 BUSHING-FRONT FORK,OU |
44065-1091 |
from US $17.74 |
||
|
44065A
|
44065A
44065-1092 BUSHING-FRONT FORK,IN |
44065-1092 |
from US $18.06 |
||
|
44070
|
44070
44070-5136 DAMPER-ASSY |
44070-5136 |
US $1,312.87 |
||
|
92001
|
92001
92001-1188
BOLT,8X40
|
92001-1188 |
— | ||
|
92001A
|
92001A
92001-1205 BOLT,FLANGED,8X45 |
92001-1205 |
from US $6.84 |
||
|
92022
|
92022
92022-1262 WASHER,FORK OUT PIPE |
92022-1262 |
from US $5.07 |
||
|
92033
|
92033
92033-1047 SNAP RING,FORK OUTER |
92033-1047 |
from US $3.80 |
||
|
92049
|
92049
92049-1418 SEAL-OIL,FORK OUTER T |
92049-1418 |
from US $12.12 |
||
|
92055
|
92055
92055-1380 RING-O,FORK TOP |
92055-1380 |
from US $3.47 |
||
|
92093
|
92093
92093-1360 SEAL,FORK OUTER TUBE |
92093-1360 |
from US $13.54 |
