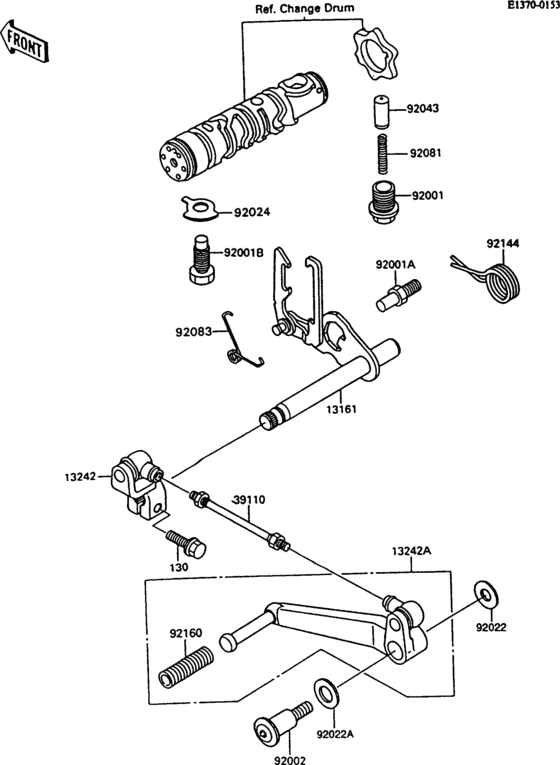

Gear change mechanism Diagram Kawasaki ZX600 GPX600R
- Year
- 1995
- Model code
- ZX600-C8
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Frame
- ZX600C 603001 - 604100
- Model
- GPX600R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
13161
|
13161
13161-042 LEVER ASSY,GEAR SFT |
13161-042 |
from US $84.97 |
||
|
13242
|
13242
13242-1190 LEVER-ASSY-CHANGE |
13242-1190 |
from US $45.97 |
||
|
13242A
|
13242A
13242-1191 LEVER-ASSY-CHANGE,PED |
13242-1191 |
US $103.52 |
||
|
39110
|
39110
39110-1010 ROD-ASSY-TIE,CHANGE L |
39110-1010 |
from US $10.14 |
||
|
92001
|
92001
92001-1037 BOLT,NEUTRAL POSITION |
92001-1037 |
from US $9.19 |
||
|
92001A
|
92001A
92001-1455 BOLT,EXCLUSIVE MASS P |
92001-1455 |
from US $2.85 |
||
|
92001B
|
92001B
92001-174 BOLT,HEX HEAD,10X26 |
92001-174 |
from US $4.44 |
||
|
92002
|
92002
92002-1926 BOLT,CHANGE PEDAL |
92002-1926 |
from US $9.82 |
||
|
92022
|
92022
92022-1561 WASHER,8.5X20X1.6 |
92022-1561 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1593 WASHER,12.5X22X1.2 |
92022-1593 |
from US $3.01 |
||
|
92024
|
92024
92024-074 WASHER,LOCK,10MM |
92024-074 |
from US $3.01 |
||
|
92043
|
92043
92043-076 PIN-NEUTRAL POSITION |
92043-076 |
from US $7.44 |
||
|
92081
|
92081
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
|
92083
|
92083
92083-018 SPRING,KICK PAWL |
92083-018 |
from US $6.18 |
||
|
92144
|
92144
92144-1074 SPRING,CHANGE PEDAL R |
92144-1074 |
from US $6.34 |
||
|
92160
|
92160
92160-1036
DAMPER,CHANGE PEDAL
|
92160-1036 |
— | ||
| replacement | |||||
|
92160
|
92160
92161-2382 DAMPER,CHANGE PEDAL |
92161-2382 |
from US $2.88 |
||
