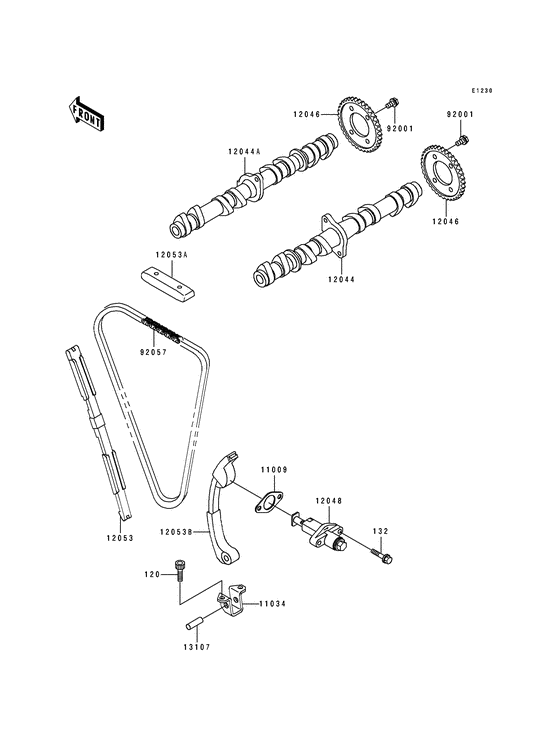

Camshaft/tensioner Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1858 GASKET,TENSIONERGasket,tensioner; |
11009-1858 |
from US $4.09 |
||
|
11034
|
11034
11034-1240 BRACKET,CHAIN GUIDEBracket,chain guide; |
11034-1240 |
from US $7.92 |
||
|
12044
|
12044
12044-1252 Camshaft-valve,intakeCamshaft-valve,intake; |
12044-1252 |
US $339.50 |
||
| replacement | |||||
|
12044
|
12044
12044-1287 CAMSHAFT-VALVE,INTAKECamshaft-valve,intake; |
12044-1287 |
US $393.03 |
||
|
12044A
|
12044A
12044-1253 Camshaft-valve,exhausCamshaft-valve,exhaust; |
12044-1253 |
US $339.50 |
||
| replacement | |||||
|
12044A
|
12044A
12044-1288 CAMSHAFT-VALVE,EXHAUSCamshaft-valve,exhaust; |
12044-1288 |
US $393.03 |
||
|
12046
|
12046
12046-1121 SPROCKET,CAMCHAIN,42TSprocket,camchain,42t; |
12046-1121 |
from US $49.19 |
||
|
12048
|
12048
12048-1105 TENSIONER-ASSY |
12048-1105 |
US $137.50 |
||
| replacement | |||||
|
12048
|
12048
12048-1126 TENSIONER-ASSY |
12048-1126 |
from US $107.56 |
||
|
12053
|
12053
12053-1273 GUIDE-CHAIN |
12053-1273 |
US $42.05 |
||
| replacement | |||||
|
12053
|
12053
12053-1279 GUIDE-CHAIN |
12053-1279 |
US $42.05 |
||
|
12053A
|
12053A
12053-1274 GUIDE-CHAIN |
12053-1274 |
US $27.30 |
||
|
12053B
|
12053B
12053-1275
GUIDE-CHAIN
|
12053-1275 |
— | ||
|
13107
|
13107
13107-1142 SHAFT,L=24.5Shaft,8x25; |
13107-1142 |
from US $5.86 |
||
|
92001
|
92001
92003-208 BOLT,SPROCKET FITTINGBolt,flanged,6x11; |
92003-208 |
from US $2.69 |
||
|
92057
|
92057
92057-1297 CHAIN,CAM,82RH2015,13Chain,cam,82rh2015,132l; |
92057-1297 |
from US $91.70 |
||
|
120
|
120
120P0618 BOLT,ALLEN,6X18Bolt-socket,6x18; |
120P0618 |
from US $1.11 |
||
| replacement | |||||
|
120
|
120
120CA0618 BOLT,ALLEN,6X18Bolt-socket,6x18; |
120CA0618 |
from US $1.11 |
||
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
