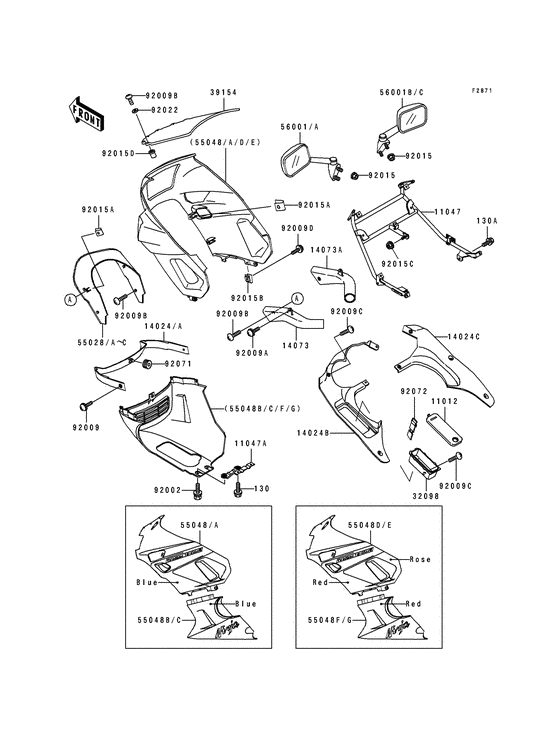

Cowling Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1735 CAP,INNER COWLING,LHCap,inner cowling,lh; |
11012-1735 |
from US $23.94 |
||
|
11047
|
11047
11046-1962
BRACKET,COWLING
Bracket,cowling; |
11046-1962 |
— | ||
|
11047A
|
11047A
11047-1091 BRACKET,LWR COWLINGBracket,lwr cowling; |
11047-1091 |
from US $18.69 |
||
|
14024
|
14024
14024-1877-GD
Cover,cowling,cnt,g.g
Cover,cowling,cnt,g.gray; |
14024-1877-GD |
— | ||
|
14024A
|
14024A
14024-1877-HN COVERCOWLING CNTGGRAYCover,cowling,cnt,g.gray; |
14024-1877-HN |
from US $55.49 |
||
|
14024B
|
14024B
14024-1901
COVER,INNER COWLING,L
Cover,inner cowling,lh; |
14024-1901 |
— | ||
|
14024C
|
14024C
14024-1902
COVER,INNER COWLING,R
Cover,inner cowling,rh; |
14024-1902 |
— | ||
|
14073
|
14073
14073-1426 DUCT,AIR INTAKE,LHDuct,air intake,lh; |
14073-1426 |
from US $33.07 |
||
|
14073A
|
14073A
14073-1427 DUCT,AIR INTAKE,RHDuct,air intake,rh; |
14073-1427 |
from US $33.07 |
||
|
32098
|
32098
32098-1093 CASE-TOOL |
32098-1093 |
from US $34.56 |
||
|
39154
|
39154
39154-1109 WINDSHIELD |
39154-1109 |
from US $216.77 |
||
|
55028
|
55028
55028-1244-FC
Cowling,fr,c.a.blue
Cowling,fr,c.a.blue; |
55028-1244-FC |
— | ||
|
55028A
|
55028A
55028-1244-HL COWLING,FR.BLUECowling,fr,blue; |
55028-1244-HL |
US $87.95 |
||
|
55028B
|
55028B
55028-1244-HR COWLING.FR.C.C.REDCowling,fr,c.c.red; |
55028-1244-HR |
US $87.95 |
||
|
55028C
|
55028C
55028-1244-L1 Cowling,fr,c.c.redCowling,fr,c.c.red; |
55028-1244-L1 |
US $232.32 |
||
|
55048
|
55048
55048-5428-GX
Cowling.,upp,blue/blue
Cowling.,upp,blue/blue; |
55048-5428-GX |
— | ||
|
55048A
|
55048A
55048-5428-HK COWLING.UPP.BLUE/BLUECowling.,upp,blue/blue; |
55048-5428-HK |
US $594.27 |
||
|
55048B
|
55048B
55048-5429-GX
Cowling.,lwr,blue/blue
Cowling.,lwr,blue/blue; |
55048-5429-GX |
— | ||
|
55048C
|
55048C
55048-5429-HK COWLING.LWR.BLUE/BLUECowling.,lwr,blue/blue; |
55048-5429-HK |
US $269.75 |
||
|
55048D
|
55048D
55048-5430-HF COWLING,UPP,RED/OPERACowling.,upp,red/rose opera; |
55048-5430-HF |
US $1,116.97 |
||
|
55048E
|
55048E
55048-5430-HP
COWLING.UPP,RED/ROSE
Cowling.,upp,red/rose opera; |
55048-5430-HP |
— | ||
|
55048F
|
55048F
55048-5431-HF
Cowling.,lwr,red/rose opera
Cowling.,lwr,red/rose opera; |
55048-5431-HF |
— | ||
|
55048G
|
55048G
55048-5431-HP COWLING.LWR.RED/ROSECowling.,lwr,red/rose opera; |
55048-5431-HP |
US $318.51 |
||
|
56001
|
56001
56001-1392-FC MIRROR-ASSY,LH,C.A.BLMirror-assy,lh,c.a.blue; |
56001-1392-FC |
US $146.93 |
||
|
56001A
|
56001A
56001-1392-L1 MIRROR-ASSY,LH,C.C.REMirror-assy,lh,c.c.red; |
56001-1392-L1 |
from US $146.93 |
||
|
56001B
|
56001B
56001-1393-FC MIRROR-ASSY,RH,C.A.BLMirror-assy,rh,c.a.blue; |
56001-1393-FC |
US $146.93 |
||
|
56001C
|
56001C
56001-1393-L1 MIRROR-ASSY,RH,C.C.REMirror-assy,rh,c.c.red; |
56001-1393-L1 |
from US $146.93 |
||
|
92002
|
92002
92002-1242 BOLTBolt,6x16; |
92002-1242 |
from US $2.85 |
||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14,white; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14,white; |
92172-0401 |
from US $1.11 |
||
|
92009A
|
92009A
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009A
|
92009A
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92009B
|
92009B
92009-1301 SCREWScrew,5x16,black; |
92009-1301 |
US $3.92 |
||
| replacement | |||||
|
92009B
|
92009B
92009-1654 SCREWScrew,5x16,black; |
92009-1654 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1611 SCREW,6X14Screw,6x14; |
92009-1611 |
from US $3.17 |
||
|
92009D
|
92009D
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009D
|
92009D
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1573 NUT,5MMNut,5mm; |
92015-1573 |
from US $3.78 |
||
|
92015B
|
92015B
92015-1602 NUT,6MMNut,6mm; |
92015-1602 |
from US $3.96 |
||
|
92015C
|
92015C
92015-1696 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015C
|
92015C
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
|
92015D
|
92015D
92015-1757 NUT,5MMNut,well,5mm; |
92015-1757 |
from US $4.25 |
||
|
92022
|
92022
92022-1521 WASHER,NYLON,5.3X11.5Washer,nylon,5.3x11.5x1.5; |
92022-1521 |
from US $2.53 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92072
|
92072
92072-1235 BAND,CHAIN LOCKBand,l=300; |
92072-1235 |
from US $15.57 |
||
|
130
|
130
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130J0812
BOLT-FLANGED
|
130J0812 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $1.05 |
||
