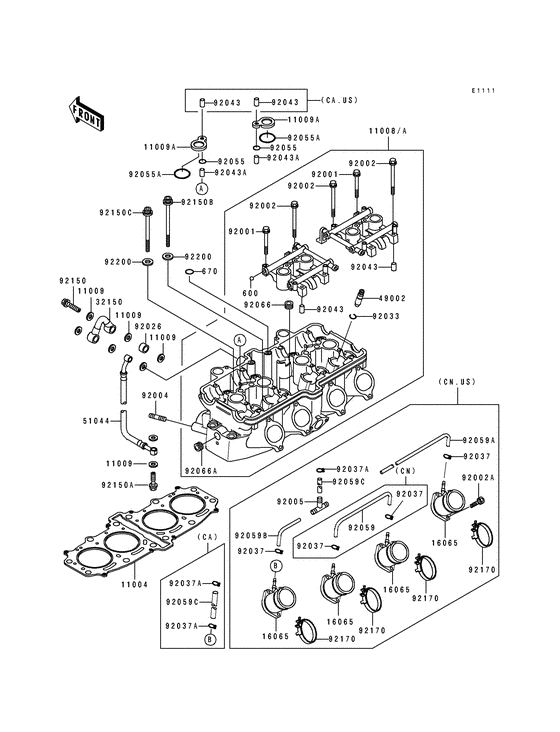

Cylinder head Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-1206 Gasket-head |
11004-1206 |
US $74.70 |
||
| replacements | |||||
|
11004
|
11004
11004-0021 GASKET-HEAD |
11004-0021 |
from US $114.44 |
||
|
11004
|
11004
11004-1245 GASKET-HEAD |
11004-1245 |
US $89.10 |
||
|
11008
|
11008
11008-1241 HEAD-COMP-CYLINDER |
11008-1241 |
US $2,388.94 |
||
|
11008A
|
11008A
11008-1242
Head-comp-cylinder
|
11008-1242 |
— | ||
|
11009
|
11009
11009-1105 GASKET,10X14.5X1.5Gasket,10x14.5x1.5; |
11009-1105 |
from US $4.75 |
||
|
11009A
|
11009A
11009-1854 GASKET,SPARK PLUGGasket,spark plug; |
11009-1854 |
US $6.35 |
||
| replacement | |||||
|
11009A
|
11009A
11009-1990 GASKET,SPARK PLUGGasket,spark plug; |
11009-1990 |
from US $6.02 |
||
|
16065
|
16065
16065-1213
HOLDER-CARBURETOR
|
16065-1213 |
— | ||
|
32150
|
32150
32150-1621 PipePipe,head; |
32150-1621 |
from US $37.55 |
||
| replacement | |||||
|
32150
|
32150
32153-1418 PipePipe,head; |
32153-1418 |
from US $38.30 |
||
|
49002
|
49002
49002-1107 GUIDE-VALVE |
49002-1107 |
US $20.20 |
||
| replacement | |||||
|
49002
|
49002
49002-1109 GUIDE-VALVE |
49002-1109 |
from US $20.20 |
||
|
51044
|
51044
51044-1121 TUBE-ASSYTube-assy,head-oil pan; |
51044-1121 |
from US $91.11 |
||
| replacement | |||||
|
51044
|
51044
51044-1213 TUBE-ASSYTube-assy,head-oil pan; |
51044-1213 |
from US $93.20 |
||
|
92001
|
92001
92001-1105 BOLT,FLANGED,6X38Bolt,flanged,6x38; |
92001-1105 |
from US $2.85 |
||
|
92002
|
92002
92001-1872 BOLT,6X46Bolt,6x46; |
92001-1872 |
from US $2.69 |
||
|
92002A
|
92002A
92002-1143 BOLT,6X16Bolt,6x16; |
92002-1143 |
from US $2.53 |
||
|
92004
|
92004
92004-1186 STUDStud,8x18; |
92004-1186 |
from US $3.33 |
||
|
92005
|
92005
92005-1017 FITTING,TUBEFitting,tube,t-type; |
92005-1017 |
from US $7.44 |
||
|
92026
|
92026
92026-1393 SPACER,10.5X15.1X10Spacer,10.5x15.1x10; |
92026-1393 |
from US $4.73 |
||
|
92033
|
92033
92033-1247 RING-SNAP |
92033-1247 |
from US $2.38 |
||
|
92037
|
92037
92037-1610 CLAMP |
92037-1610 |
from US $1.74 |
||
|
92037A
|
92037A
92037-1712 CLAMP |
92037-1712 |
from US $3.90 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-1264 PIN,DOWEL,8.2X10X14Pin,8.2x10x14; |
92043-1264 |
from US $1 |
||
|
92055
|
92055
92055-1469 RING-O,11.5X1.5Ring-o,11.5x1.5; |
92055-1469 |
from US $2.22 |
||
|
92055A
|
92055A
92055-1470 RING-O |
92055-1470 |
from US $3.01 |
||
|
92059
|
92059
92059-1033 Tube,4x9x155Tube,4x9x155; |
92059-1033 |
US $11.25 |
||
| replacement | |||||
|
92059
|
92059
92059-1916 TUBE,4X9X935,WHITE STRIPETube,4x9x155; |
92059-1916 |
from US $11.98 |
||
|
92059A
|
92059A
92059-1068 Tube,4 x9 x230m/mTube,4x9x230; |
92059-1068 |
US $11.25 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1916 TUBE,4X9X935,WHITE STRIPETube,4x9x230; |
92059-1916 |
from US $11.98 |
||
|
92059B
|
92059B
92059-1365
TUBE
Tube,4x9x80; |
92059-1365 |
— | ||
| replacement | |||||
|
92059B
|
92059B
92190-1062 TUBE (L=380mm)Tube,4x9x80; |
92190-1062 |
from US $8.87 |
||
|
92059C
|
92059C
92059-1533 Tube,4x9x500,whiteTube,4x9x500,white; |
92059-1533 |
US $12.46 |
||
| replacements | |||||
|
92059C
|
92059C
92059-1916 TUBE,4X9X935,WHITE STRIPETube,4x9x500,white; |
92059-1916 |
from US $11.98 |
||
|
92059C
|
92059C
92059-1488 TUBE,4X9X935,WHITETube,4x9x500,white; |
92059-1488 |
US $16.70 |
||
|
92066
|
92066
92066-1253 PLUG,PT1/2X12.5 |
92066-1253 |
from US $6.18 |
||
| replacement | |||||
|
92066
|
92066
92066-0002 PLUG,PT1/2X12.5 |
92066-0002 |
from US $5.54 |
||
|
92066A
|
92066A
92066-1346 PLUG |
92066-1346 |
from US $4.91 |
||
|
92150
|
92150
92150-1122 BOLTBolt,banjo,10x37; |
92150-1122 |
from US $7.36 |
||
| replacement | |||||
|
92150
|
92150
92151-1867 BOLT,BANJO,10X37Bolt,banjo,10x37; |
92151-1867 |
from US $7.44 |
||
|
92150A
|
92150A
92150-1123 BOLT,BANJO,10X23Bolt,banjo,10x23; |
92150-1123 |
from US $9.54 |
||
| replacement | |||||
|
92150A
|
92150A
92151-1349 BOLT,BANJO,10X23Bolt,banjo,10x23; |
92151-1349 |
from US $3.64 |
||
|
92150B
|
92150B
92150-1368 BOLT,10X165Bolt,10x165; |
92150-1368 |
from US $11.88 |
||
|
92150C
|
92150C
92150-1369 BOLT,10X151Bolt,10x151; |
92150-1369 |
from US $12.67 |
||
|
92170
|
92170
92170-1146 CLAMP |
92170-1146 |
US $7.60 |
||
| replacement | |||||
|
92170
|
92170
92170-1908 CLAMP |
92170-1908 |
from US $6.34 |
||
|
92200
|
92200
92200-1042 WASHER,10.5X19X2.3Washer,10.5x19x2.3; |
92200-1042 |
from US $2.53 |
||
|
600
|
600
600A0900 BALL STEEL 9/32'Ball-steel,9/32"; |
600A0900 |
from US $0.95 |
||
|
670
|
670
670D1508 O RING,8M/MO ring,8mm; |
670D1508 |
from US $3.20 |
||
