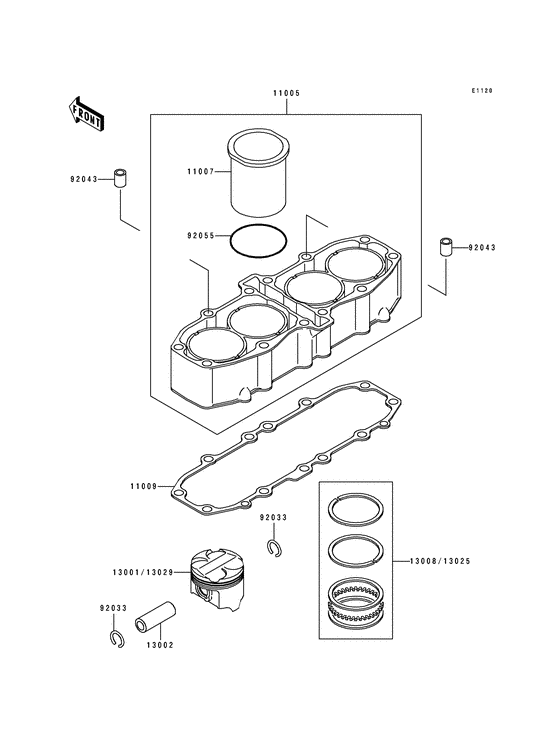

Cylinder/piston Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1617 CYLINDER-ENGINE |
11005-1617 |
US $1,164.60 |
||
|
11007
|
11007
11007-1109
LINER-CYLINDER
|
11007-1109 |
— | ||
|
11009
|
11009
11009-1855 GASKET,CYLINDER BASEGasket,cylinder base; |
11009-1855 |
from US $30.93 |
||
|
13001
|
13001
13001-1324 PISTON-ENGINE,STDPiston-engine,std; |
13001-1324 |
US $63.32 |
||
| replacement | |||||
|
13001
|
13001
13001-1348
PISTON-ENGINE,STD
Piston-engine,std; |
13001-1348 |
— | ||
|
13002
|
13002
13002-1003 PIN-PISTON |
13002-1003 |
from US $16.68 |
||
|
13008
|
13008
13008-1128 RING-SET-PISTON,STDRing-set-piston,std; |
13008-1128 |
from US $71.14 |
||
|
13025
|
13025
13025-1101 RING-SET-PISTON L,O/S 0.50Ring-set-piston l,o/s 0.50; |
13025-1101 |
from US $46.20 |
||
|
13029
|
13029
13029-1191 PISTON-ENGINE L,O/S 0Piston-engine l,o/s 0.50; |
13029-1191 |
US $63.32 |
||
| replacement | |||||
|
13029
|
13029
13029-1202 PISTON-ENGINE L,O/S 0Piston-engine l,o/s 0.50; |
13029-1202 |
US $63.32 |
||
|
92033
|
92033
92033-1161 RING-SNAP,PISTON PINRing-snap,piston pin; |
92033-1161 |
from US $2.53 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14Pin,10.1x12x14; |
92043-4009 |
from US $3.64 |
||
|
92055
|
92055
92055-1467 RING-O,70.6X2.4Ring-o,70.6x2.4; |
92055-1467 |
from US $3.89 |
||
