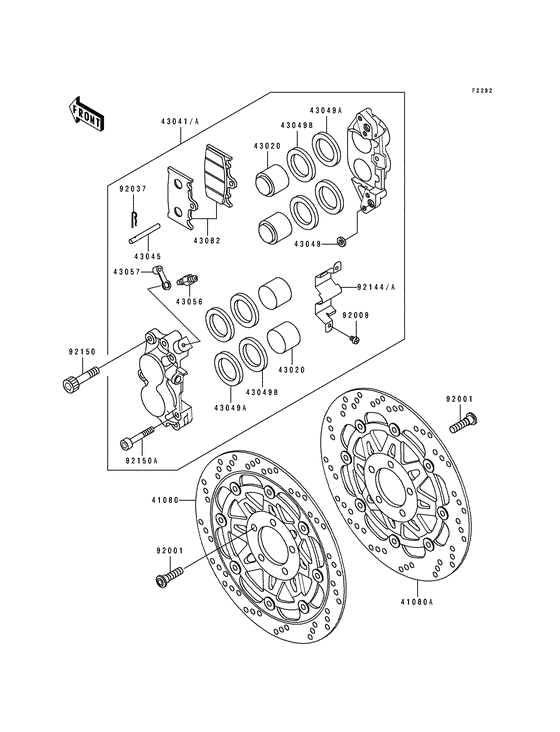

Front caliper Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1274-FF Disc,fr,lh,c.grayDisc,fr,lh,c.gray; |
41080-1274-FF |
US $357.88 |
||
| replacements | |||||
|
41080
|
41080
41080-1316-5C DISC,FR,LH,GRAY+DISC-Disc,fr,lh,c.gray; |
41080-1316-5C |
from US $391.91 |
||
|
41080
|
41080
41080-1316-FF DISC,FR,LH,GRAY+DISC-Disc,fr,lh,c.gray; |
41080-1316-FF |
from US $335.41 |
||
|
41080A
|
41080A
41080-1275-FF Disc,fr,rh,c.grayDisc,fr,rh,c.gray; |
41080-1275-FF |
US $357.88 |
||
| replacements | |||||
|
41080A
|
41080A
41080-1317-5C DISC,FR,RH,GRAY+DISC-Disc,fr,rh,c.gray; |
41080-1317-5C |
from US $391.91 |
||
|
41080A
|
41080A
41080-1317-FF DISC,FR,RH,GRAY+DISC-Disc,fr,rh,c.gray; |
41080-1317-FF |
from US $335.41 |
||
|
43020
|
43020
43020-1092 PISTON-COMP-BRAKE |
43020-1092 |
from US $49.82 |
||
|
43041
|
43041
43041-1390-FE CALIPER-ASSY,FR,LH,M.Caliper-assy,fr,lh,m.f.gray; |
43041-1390-FE |
US $393.43 |
||
| replacements | |||||
|
43041
|
43041
43080-5029-FE CALIPER-SUB-ASSY,FR,LCaliper-assy,fr,lh,m.f.gray; |
43080-5029-FE |
US $368.51 |
||
|
43041
|
43041
43082-1110 PAD-ASSY-BRAKECaliper-assy,fr,lh,m.f.gray; |
43082-1110 |
from US $52.49 |
||
|
43041A
|
43041A
43041-1391-FE CALIPER-ASSY,FR,RH,M.Caliper-assy,fr,rh,m.f.gray; |
43041-1391-FE |
US $483.21 |
||
| replacements | |||||
|
43041A
|
43041A
43080-5030-FE CALIPER-SUB-ASSY,FR,RCaliper-assy,fr,rh,m.f.gray; |
43080-5030-FE |
from US $331.26 |
||
|
43041A
|
43041A
43082-1110 PAD-ASSY-BRAKECaliper-assy,fr,rh,m.f.gray; |
43082-1110 |
from US $52.49 |
||
|
43041A
|
43041A
43041-1511-FE CALIPER-ASSY,FR,RH,M.Caliper-assy,fr,rh,m.f.gray; |
43041-1511-FE |
from US $479.16 |
||
|
43045
|
43045
43045007 PIN |
43045007 |
from US $4.75 |
||
|
43049
|
43049
43049-1004 RING,SEAL6.5X11.5X2.2Packing,seal,6.5x11.5x2.2; |
43049-1004 |
from US $5.14 |
||
|
43049A
|
43049A
43049-1067
PACKING
|
43049-1067 |
— | ||
| replacement | |||||
|
43049A
|
43049A
43049-1092 PACKING |
43049-1092 |
from US $6.97 |
||
|
43049B
|
43049B
43049-1068 PACKING |
43049-1068 |
from US $6.97 |
||
|
43056
|
43056
43056-003
BLEEDER SET
|
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1110 PAD-ASSY-BRAKE |
43082-1110 |
from US $52.49 |
||
|
92001
|
92001
92001-1951
Bolt,socket,8x30
Bolt,disc plate,8x30; |
92001-1951 |
— | ||
| replacement | |||||
|
92001
|
92001
92154-1865 BOLT,SOCKET,8X30Bolt,disc plate,8x30; |
92154-1865 |
from US $2.85 |
||
|
92009
|
92009
92009-1569 SCREWScrew,4x6; |
92009-1569 |
US $1.89 |
||
| replacement | |||||
|
92009
|
92009
92009-1758 SCREWScrew,4x6; |
92009-1758 |
from US $1.74 |
||
|
92037
|
92037
43084003 CLIPClamp,pad; |
43084003 |
from US $3.17 |
||
|
92144
|
92144
92144-1399 SPRINGSpring,fr caliper,lh; |
92144-1399 |
US $24.19 |
||
| replacement | |||||
|
92144
|
92144
92145-1263 SPRINGSpring,fr caliper,lh; |
92145-1263 |
from US $19.32 |
||
|
92144A
|
92144A
92144-1400 SPRING,COVERSpring,fr caliper,rh; |
92144-1400 |
US $19.94 |
||
| replacement | |||||
|
92144A
|
92144A
92145-1366 SPRING,COVERSpring,fr caliper,rh; |
92145-1366 |
US $19.94 |
||
|
92150
|
92150
92150-1261 BOLT,SOCKET,10X37Bolt,socket,10x37; |
92150-1261 |
from US $7.44 |
||
|
92150A
|
92150A
92150-1272 BOLTBolt,socket,8x40; |
92150-1272 |
US $4.34 |
||
| replacement | |||||
|
92150A
|
92150A
92150-1973 BOLTBolt,socket,8x40; |
92150-1973 |
from US $3.80 |
||
