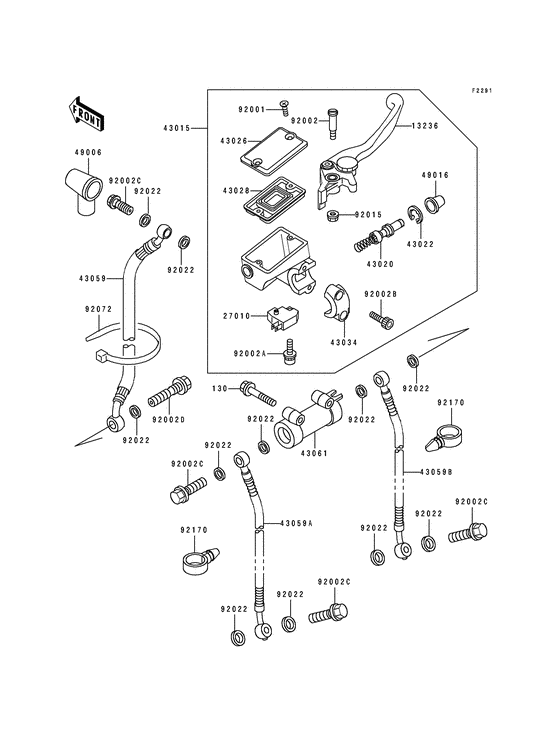

Front master cylinder Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13236
|
13236
13236-1185 LEVER-COMP,FRONT BRAKELever-comp,front brake; |
13236-1185 |
from US $50.86 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
Switch,brake; |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKESwitch,brake; |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1421 CYLINDER-ASSY-MASTER,Cylinder-assy-master,fr; |
43015-1421 |
from US $362.14 |
||
|
43020
|
43020
43020-1054 FRONT BRAKE PISTON-COMPPiston-comp-brake,fr; |
43020-1054 |
from US $50.63 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1055 CAP-BRAKE,FRCap-brake,fr; |
43026-1055 |
from US $35.31 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIDiaphragm,master cylinder; |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER CHolder-brake,master cylinder; |
43034-1053 |
from US $24.24 |
||
|
43059
|
43059
43059-1572 HOSE-BRAKE,FRHose-brake,fr; |
43059-1572 |
from US $66.76 |
||
|
43059A
|
43059A
43059-1573 Hose-brake,frHose-brake,fr; |
43059-1573 |
US $67.54 |
||
| replacements | |||||
|
43059A
|
43059A
43095-0120 HOSE-BRAKE,FRHose-brake,fr; |
43095-0120 |
from US $65.23 |
||
|
43059A
|
43059A
43059-1820 Hose-brake,frHose-brake,fr; |
43059-1820 |
from US $68.54 |
||
|
43059A
|
43059A
43095-1379 HOSE-BRAKE,FRHose-brake,fr; |
43095-1379 |
from US $68.52 |
||
|
43059B
|
43059B
43059-1591 Hose-brake,frHose-brake,fr; |
43059-1591 |
US $67.54 |
||
| replacements | |||||
|
43059B
|
43059B
43095-1380 HOSE-BRAKE,FRHose-brake,fr; |
43095-1380 |
from US $65.23 |
||
|
43059B
|
43059B
43059-1821 HOSE-BRAKE,FRHose-brake,fr; |
43059-1821 |
from US $79.74 |
||
|
43061
|
43061
43061-1002 JOINT,FR BRAKE HOSE |
43061-1002 |
from US $45.78 |
||
|
49006
|
49006
49006-1040 BOOT,DUSTBoot,dust; |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUSTBoot,dust; |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cylinder; |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDERBolt,master cylinder cap; |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SETBolt,lever set; |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 BOLTBolt,screw,4x12; |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92002-1324 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92002-1324 |
from US $6.02 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92153-0417 |
from US $3.80 |
||
|
92002C
|
92002C
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002C
|
92002C
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92002D
|
92002D
92002-1909 BOLT,OIL,L=37Bolt,oil,l=37; |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92002D
|
92002D
92153-0628 BOLT,OIL,L=37Bolt,oil,l=37; |
92153-0628 |
from US $6.65 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
49091-0001 |
from US $1.27 |
||
|
92072
|
92072
92072-1237 BAND,L=250Band,l=250; |
92072-1237 |
from US $2.74 |
||
|
92170
|
92170
92170-1067 CLAMP,HOSEClamp,hose; |
92170-1067 |
from US $5.07 |
||
|
130
|
130
130G0635
BOLT,FLANGED,6X35
Bolt-flanged,6x35; |
130G0635 |
— | ||
| replacement | |||||
|
130
|
130
130BA0635 BOLT,FLANGED,6X35Bolt-flanged,6x35; |
130BA0635 |
from US $1.11 |
||
